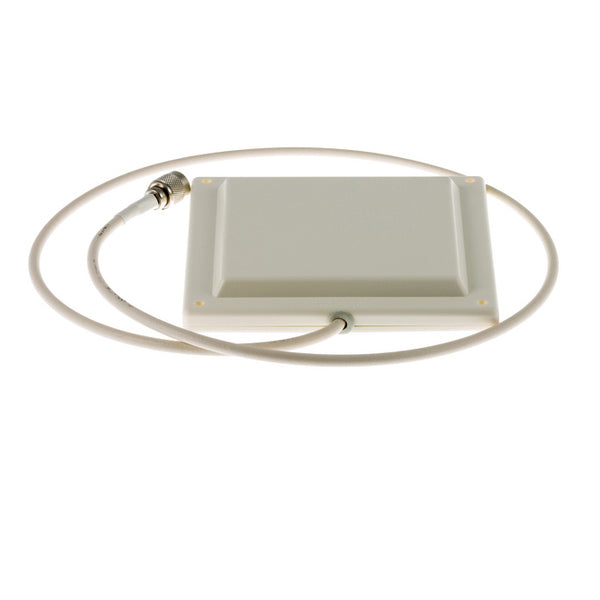

• Cisco AIR-ANT3549 white rectangular 2.4GHz patch antenna with coiled cable
1 1

Cisco

Cisco AIR-ANT3549 | Aironet 2.4GHz 8.5dBi Patch Antenna, RP-TNC, 3ft Cable

AIR-ANT3549

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet AIR-ANT3549 is an indoor, wall-mount hemispherical patch antenna for 2.4 GHz wireless LANs. It is designed for Cisco Aironet access points and bridges that use an RP-TNC antenna connector, giving long-range coverage from an unobtrusive panel. It can also be used as a medium-range bridge antenna for point-to-point links.

The antenna delivers 8.5 dBi of gain across the 2.4 to 2.5 GHz band with vertical polarisation. The hemispherical pattern has a 60 degree horizontal beamwidth and a vertical beamwidth of around 55 degrees, which concentrates the signal in one direction rather than spreading it evenly. It terminates in an RP-TNC connector on an integrated 3 ft (about 1 m) cable. The panel measures approximately 124 x 124 mm and weighs around 150 g, so it is easy to mount on a wall.

It is a passive antenna and needs no power. Approximate indoor range is 700 ft (213 m) at 1 Mbps, 200 ft (61 m) at 11 Mbps, 507 ft at 6 Mbps and 153 ft at 54 Mbps.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Indoor, unobtrusive long-range antenna
- Can also be used as a medium-range bridge antenna
- Hemispherical patch pattern for directional coverage
- Wall mountable
- Passive design with no power requirement
- RP-TNC connector for Cisco 2.4 GHz access points and bridges

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency: 2.4 GHz (2.4-2.5 GHz)
- Antenna type: Hemispherical patch, wall mount
- Gain: 8.5 dBi
- Polarisation: Vertical
- Beamwidth, horizontal: 60 degrees
- Beamwidth, vertical: 55 degrees
- Connector: RP-TNC
- Cable length: 3 ft (approx. 1 m)
- Dimensions (H x W x D): 4.9 x 4.9 x 0.6 in (approx. 124 x 124 mm)
- Weight: 5.3 oz (approx. 150 g)
- Approx. indoor range at 1 Mbps: 700 ft (213 m)
- Approx. indoor range at 6 Mbps: 507 ft
- Approx. indoor range at 11 Mbps: 200 ft (61 m)
- Approx. indoor range at 54 Mbps: 153 ft
- Approx. outdoor range at 1 Mbps: 2 mi (3.22 km)
- Approx. outdoor range at 11 Mbps: 3390 ft (1.033 km)
- Power: Passive antenna, no power required

FAQs

Q: Which access points does this antenna work with?
A: It works with Cisco Aironet 2.4 GHz access points and bridges that have an RP-TNC antenna connector.

Q: Does the antenna need power?
A: No. It is a passive antenna and requires no power.

Q: Can it be used for point-to-point links?
A: Yes. Besides indoor coverage, it can serve as a medium-range bridge antenna.

Q: How does it differ from other Aironet antennas?
A: This model is a 2.4 GHz, 8.5 dBi hemispherical patch with an RP-TNC connector and a 3 ft cable, intended for wall-mount use.
