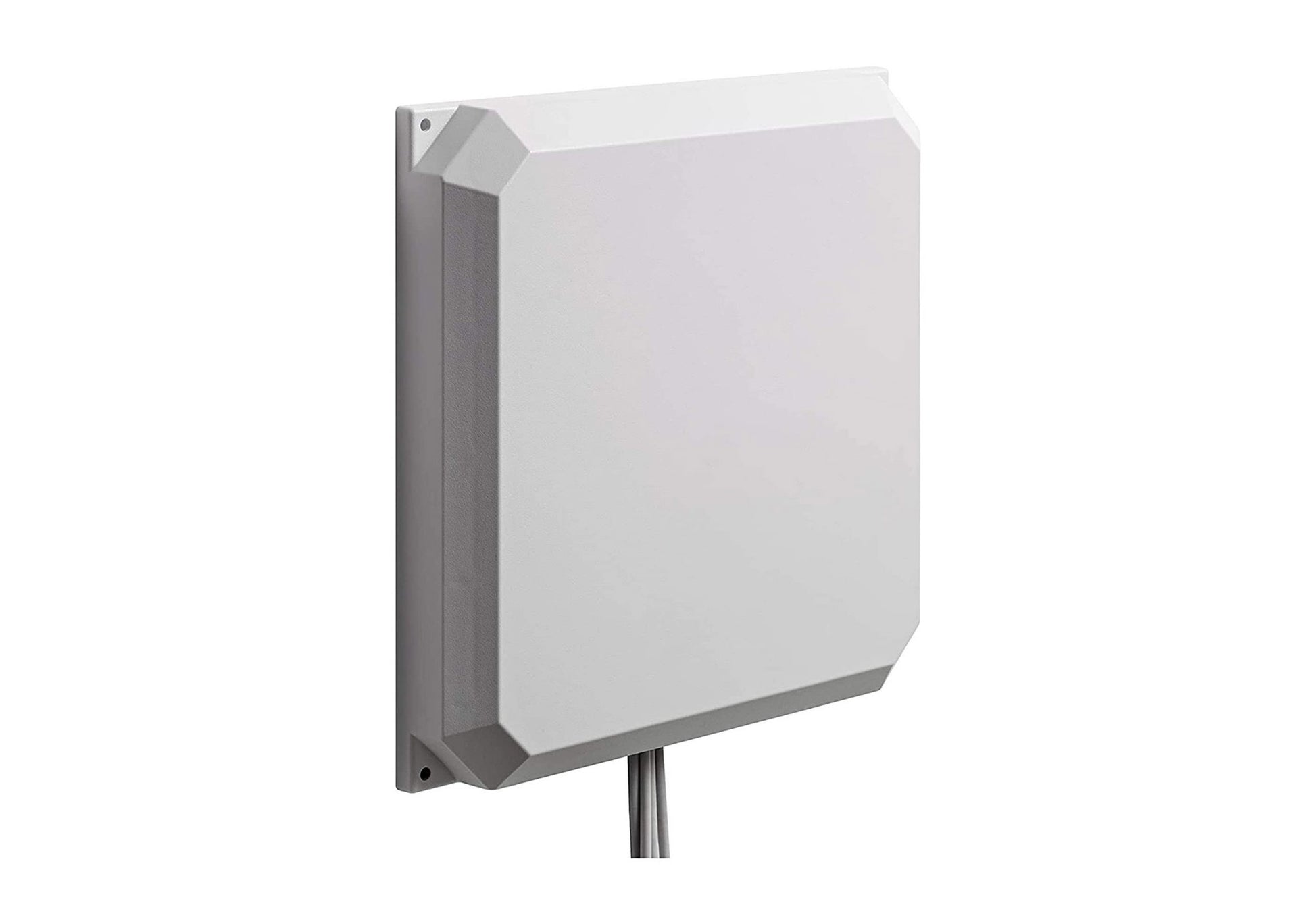

Cisco AIR-ANT2566P4W-RS | Aironet 2.4/5GHz 6 dBi Patch Antenna, 4x RP-TNC, Self-ID

AIR-ANT2566P4W-RS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Aironet AIR-ANT2566P4W-RS is a dual-band 2.4 GHz and 5 GHz four-element MIMO patch antenna for wall-mounted directional coverage. It suits indoor and outdoor Wi-Fi deployments where an Aironet access point with external RP-TNC antenna ports needs four dual-band antennas.

The antenna delivers 6 dBi of gain in both bands, covering 2400 to 2484 MHz and 5150 to 5850 MHz with linear vertical polarisation. Beamwidth is 105 degrees azimuth and 65 degrees elevation at 2.4 GHz, and 110 degrees azimuth and 55 degrees elevation at 5 GHz. Four RP-TNC connectors terminate 3 ft plenum-rated cables. The -RS model adds self-identifying circuitry so the access point can detect the antenna. The enclosure is rated IP54 and operates from -40 to 70 C. As a passive antenna it needs no power supply or PoE, and no licence is required.

It works with any Cisco Aironet access point that requires four dual-band antennas. The self-identifying model is supported on Cisco Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later, and is not supported on Cisco AireOS Wireless Controllers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band 2.4 GHz and 5 GHz operation in a single enclosure
- Four-element MIMO patch design with 6 dBi gain in both bands
- Self-identifying circuitry allows the access point to detect the antenna
- Suitable for indoor and outdoor use with IP54 rating
- Wide operating temperature range of -40 to 70 C
- Plenum-rated 3 ft cables with RP-TNC connectors

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: 4-element dual-band MIMO patch
- Operating frequency range: 2400 to 2484 MHz and 5150 to 5850 MHz
- Gain: 6 dBi in both bands
- Polarisation: Linear, vertical
- VSWR: 2:1 or less
- Azimuth plane 3-dB beamwidth: 105 degrees (2.4 GHz), 110 degrees (5 GHz)
- Elevation plane 3-dB beamwidth: 65 degrees (2.4 GHz), 55 degrees (5 GHz)
- Connectors: 4x RP-TNC
- Cable length and type: 3 ft (91.4 cm), plenum rated
- Self-identifying (Self-ID) antenna
- Standard: IEEE 802.11n
- Environment: Indoor/outdoor
- Ingress protection: IP54
- Operating temperature range: -40 to 70 C (-40 to 158 F)
- Length: 6.3 in. (16 cm)
- Width: 11 in. (27.9 cm)
- Depth: 1.2 in. (3.05 cm)
- Weight: 1.4 lbs

FAQs

Q: Does this antenna need power or PoE?
A: No. It is a passive antenna and needs no power supply or PoE.

Q: Do I need a licence to use it?
A: No licence is required for the antenna itself.

Q: Which access points does it work with?
A: It works with any Cisco Aironet access point that requires four dual-band antennas and provides external RP-TNC antenna ports.

Q: Which controllers support the Self-ID feature?
A: The self-identifying model is supported on Cisco Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later. It is not supported on Cisco AireOS Wireless Controllers.

Q: What does the -RS suffix mean?
A: The -RS suffix denotes the self-identifying version, which has circuitry that lets the access point detect the connected antenna.
