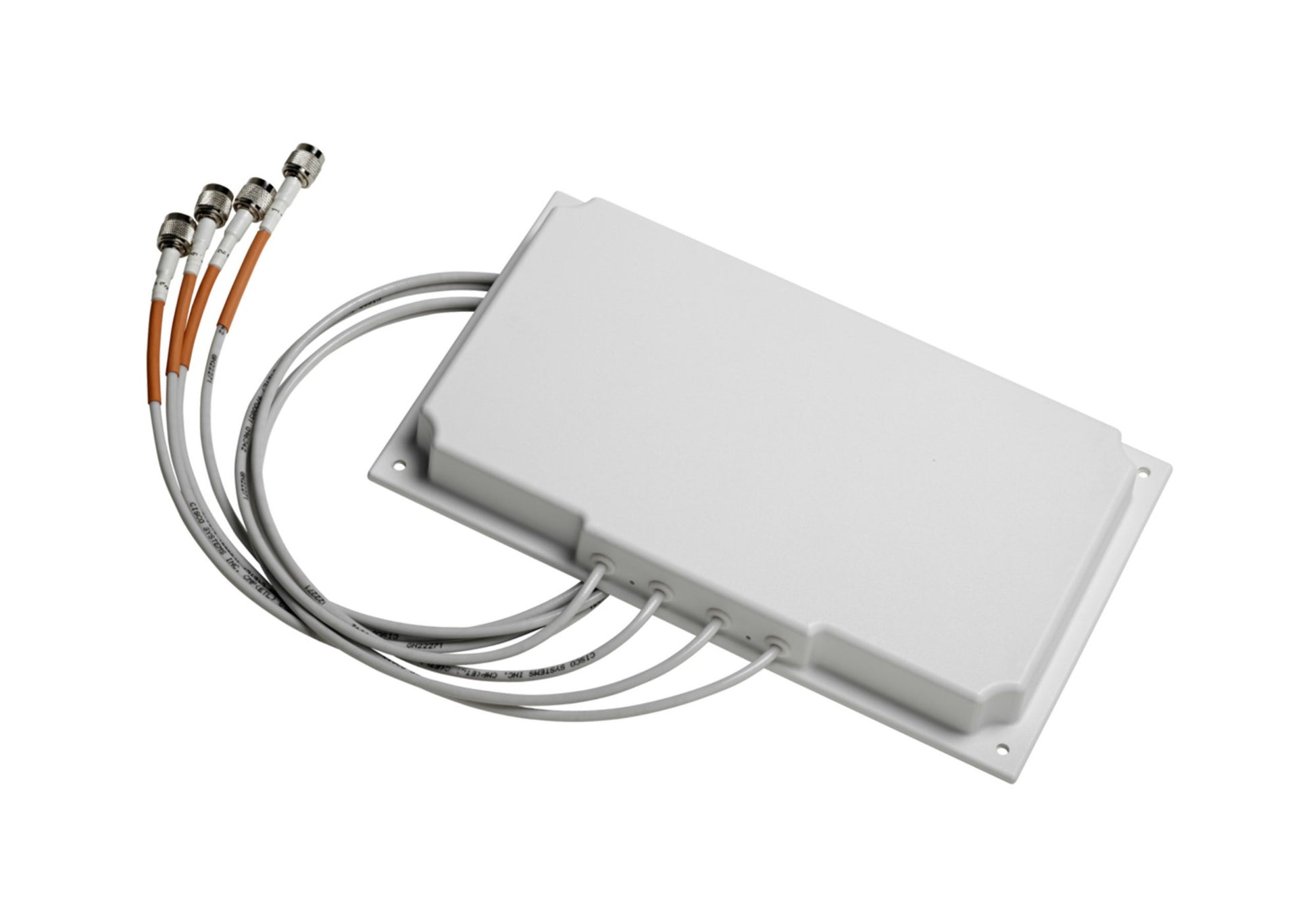

• Cisco AIR-ANT2566P4W-R dual-band 6 dBi MIMO patch antenna
1 1

Cisco

Cisco AIR-ANT2566P4W-R | Aironet 6 dBi Dual-Band 4-Port Patch Antenna, Wall-Mount

AIR-ANT2566P4W-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 2.4 GHz and 5 GHz MIMO 4-element patch antenna is a directional antenna for Cisco access points that use external antennas. It suits wall-mounted deployments where Wi-Fi coverage needs to be focused in one direction rather than spread out in all directions.

It delivers 6 dBi of gain across both the 2.4 GHz and 5 GHz bands, using a 4-element dual-polarised patch array for 4-port MIMO operation. Four RP-TNC male connectors link the antenna to a 4-port dual-band access point, and the unit is designed for wall mounting.

This is a passive antenna, so it needs no power supply of its own. It is used with 4-port dual-band Aironet access points such as the 3802e, giving 4x4 MIMO directional coverage in offices, corridors and similar spaces.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 4-element dual-polarised patch array covering both 2.4 GHz and 5 GHz bands
- Directional coverage for focused wall-mounted Wi-Fi deployments
- Four RP-TNC male connectors for 4x4 MIMO operation
- Passive design with no power or configuration needed
- Suited to 4-port dual-band Aironet access points such as the 3802e

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency bands: 2.4 GHz and 5 GHz dual-band
- Gain: 6 dBi
- Antenna type: Directional patch
- Elements: 4-element, 4-port MIMO
- Connectors: 4 x RP-TNC male
- Mounting: Wall-mount
- Power: Passive, no power supply required

FAQs

Q: Which access points does this antenna work with?
A: It is designed for 4-port dual-band Aironet access points that use external antennas, such as the Aironet 3802e.

Q: Does the antenna need power?
A: No. It is a passive antenna and needs no power supply.

Q: What type of coverage does it provide?
A: It is a directional patch antenna with 6 dBi gain, so it focuses coverage in one direction rather than providing all-round coverage.

Q: How is it mounted?
A: It is designed for wall mounting.
