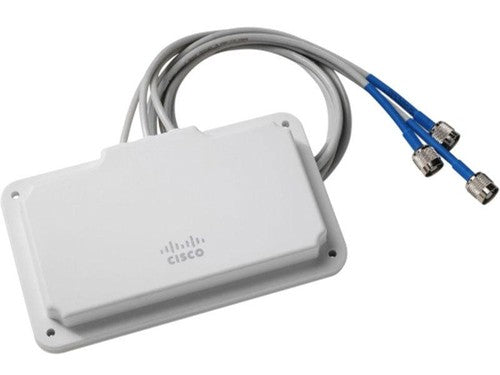

Cisco AIR-ANT2566P4W-DS | Aironet Dual-Band 6 dBi Patch Antenna, 4-DART, Self-ID

AIR-ANT2566P4W-DS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Aironet dual-band MIMO patch antenna covers both 2.4 GHz and 5 GHz from a single wall-mount panel. It suits Cisco Catalyst 91xx access points that need directional coverage where the integrated AP antennas are not suitable, in indoor or outdoor deployments.

It uses a four-element MIMO design with 6 dBi gain in the 2.4 GHz band and 5 dBi in the 5 GHz band, with linear vertical polarisation. The 3-dB beamwidth is 105 degrees in azimuth and 65 degrees in elevation at 2.4 GHz, and 110 degrees and 55 degrees at 5 GHz. It connects through a 4-port DART connector on a 3 ft plenum-rated cable. This is the Self-Identifying version, with a built-in EEPROM that lets the access point read the antenna type and gain automatically. It differs from the RP-TNC variants in its connector type.

It is rated IP54 and operates from -40 to 70 C. It is a passive antenna and needs no power or PoE. Self-identification requires a Cisco Catalyst 9800 Series Wireless Controller running IOS-XE 17.4.1 or later, and is not supported on AireOS controllers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four-element dual-band MIMO patch design covering 2.4 GHz and 5 GHz
- 4-port DART connector attaches directly to the access point's 4-DART port
- Built-in EEPROM lets the access point automatically configure antenna type and gain in the wireless controller
- Directional wall-mount coverage for indoor and outdoor deployments
- Plenum-rated 3 ft cable
- IP54 rated with an operating range of -40 to 70 C

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: 4-element dual-band MIMO patch
- Operating frequency: 2400 to 2484 MHz and 5150 to 5850 MHz
- Gain: 6 dBi (2.4 GHz), 5 dBi (5 GHz)
- VSWR: 2:1 or less (both bands)
- Polarisation: Linear, vertical (both bands)
- Azimuth 3-dB beamwidth: 105 degrees (2.4 GHz), 110 degrees (5 GHz)
- Elevation 3-dB beamwidth: 65 degrees (2.4 GHz), 55 degrees (5 GHz)
- Connector: 4-DART
- Cable: 3 ft (91.4 cm), plenum rated
- Length: 16 cm (6.3 in.)
- Width: 27.9 cm (11 in.)
- Depth: 3.05 cm (1.2 in.)
- Weight: 1.4 lbs
- Environment: Indoor/outdoor, IP54
- Operating temperature: -40 to 70 C (-40 to 158 F)
- Mounting: Wall-mount
- Power: Passive, no power or PoE required

FAQs

Q: Does this antenna need a licence?
A: No licence is required for the antenna itself. Self-identification needs a Cisco Catalyst 9800 Series Wireless Controller running IOS-XE 17.4.1 or later.

Q: Which access points does it work with?
A: It works with Cisco Catalyst 91xx Series access points that have dual-band 4-DART antenna ports.

Q: Does it work with AireOS wireless controllers?
A: The self-identification function is not supported on AireOS controllers. It is supported on Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later.

Q: Does it need power or PoE?
A: No. It is a passive antenna and needs no power supply or PoE.

Q: How does it differ from the -R and -RS models?
A: This model uses a 4-port DART connector and is self-identifying. The -R and -RS siblings use RP-TNC connectors.
