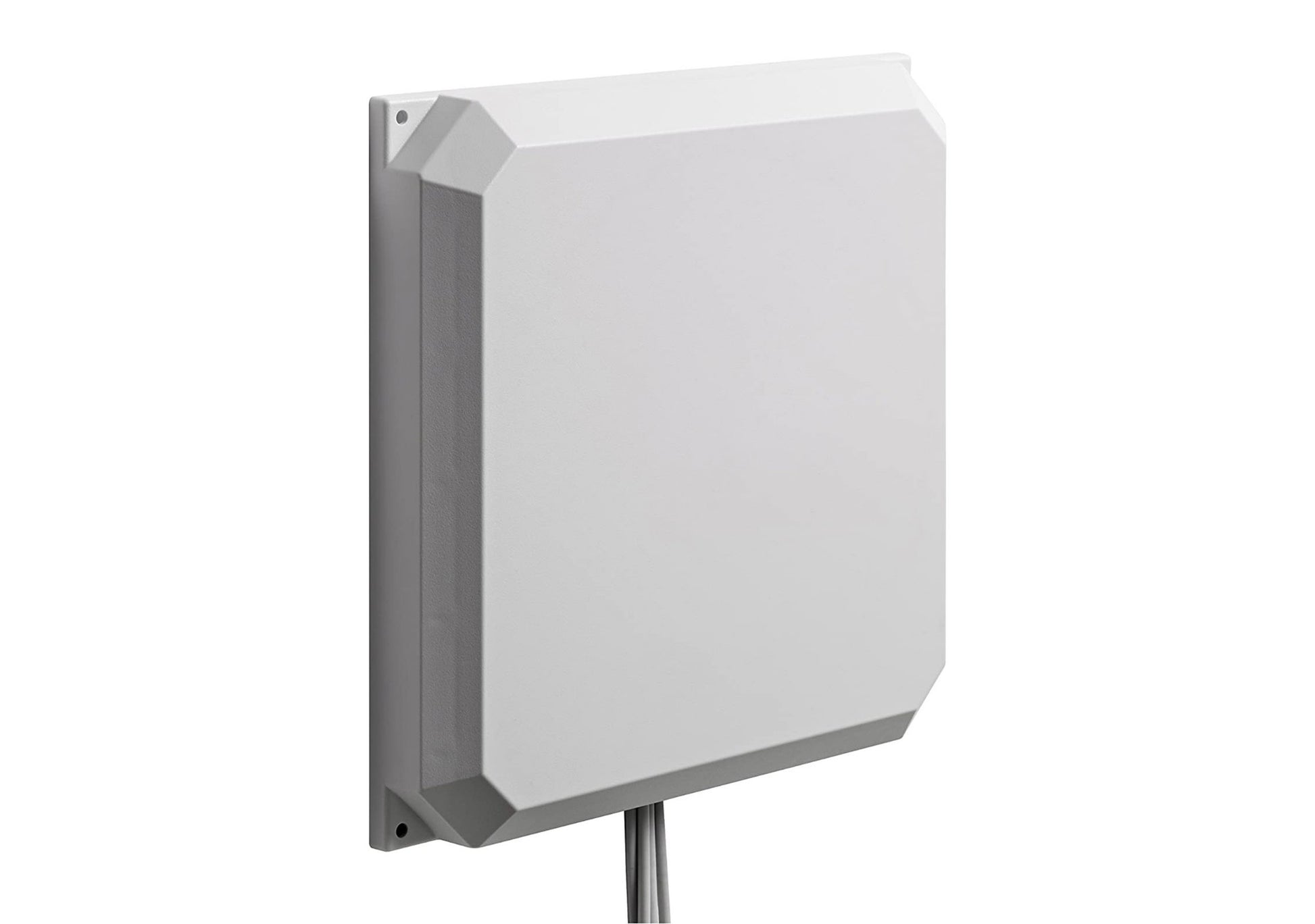

• Cisco AIR-ANT2566D4M-RS white directional patch antenna with gray trim
1 1

Cisco

Cisco AIR-ANT2566D4M-RS | Aironet 2566D4M 6 dBi Dual-Band Antenna, 4x RP-TNC, Self-ID

AIR-ANT2566D4M-RS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Aironet AIR-ANT2566D4M-RS is a wall-mount, dual-band polarization-diverse directional patch array antenna covering 2.4 GHz and 5 GHz. It suits indoor and outdoor wall-mounted directional coverage with external-antenna Aironet and Catalyst access points that need four dual-band antennas. The -RS variant adds self-identification circuitry so Catalyst 91xx access points can detect the antenna automatically.

The antenna delivers 6 dBi peak gain on both bands across four MIMO ports (A to D), all dual-band. Ports A and C are vertically polarised and ports B and D are horizontally polarised, with port-to-port isolation above 30 dB. Connections are made through four RP-TNC connectors with coupling rings on 3 ft leads. The housing is IP-67 rated and operates from -40 C to 70 C, with a 100 MPH operational wind rating.

It is designed for access points with dual-band external antenna ports, such as the Aironet 1830, 1850, 2800 and 3800 Series and Catalyst 9115AX, 9120AX and 9130AX. The Self-ID function is supported with Cisco Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later. The antenna is passive and needs no power or licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band MIMO wall-mounted directional array antenna covering 2.4 GHz and 5 GHz
- Polarization-diverse design with vertical and horizontal ports
- IP-67 rating suits both indoor and outdoor deployments
- Self-identification circuitry lets Catalyst 91xx access points detect the antenna automatically
- Radome can be painted with common non-conductive spray paints
- Wall-mount directional patch design with 6 dBi gain on both bands

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dual-band polarization-diverse directional array (patch)
- Operating frequency: 2.4-2.5 GHz and 5.15-5.925 GHz
- Peak gain: 6 dBi (2.4 GHz), 6 dBi (5 GHz)
- MIMO ports: 4 (A-D, all dual-band)
- Polarization, ports A and C: Vertical
- Polarization, ports B and D: Horizontal
- Nominal input impedance: 50 Ohms (both bands)
- VSWR: 2:1 (both bands)
- Elevation plane 3-dB beamwidth: 65 degrees (2.4 GHz), 60 degrees (5 GHz)
- Azimuth plane 3-dB beamwidth: 65 degrees (2.4 GHz), 55 degrees (5 GHz)
- Front-to-back ratio: greater than 12 dB (2.4 GHz), greater than 20 dB (5 GHz)
- Port-to-port isolation: greater than 30 dB (both bands)
- Peak gain at 30 degrees elevation or more: 3 dBi
- Connectors: 4x RP-TNC with coupling ring
- Cable length: 3 ft
- Dimensions: 10 x 10 x 1.61 in. (25.4 x 25.4 x 4.1 cm)
- Weight: 2.5 lbs (1.13 kg)
- Ingress protection: IP-67
- Operational wind: 100 MPH
- Operating temperature: -40 to 70 C
- Storage temperature: -40 to 85 C
- Power: Passive antenna, no power required

FAQs

Q: Does this antenna need a licence or power?
A: No. It is a passive antenna, so it needs no power and no licence.

Q: Which controllers support the Self-ID function?
A: The -RS model is supported with Cisco Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later. It is not supported on AireOS controllers.

Q: Which access points does it work with?
A: It suits access points with dual-band external antenna ports, such as the Aironet 1830, 1850, 2800 and 3800 Series and Catalyst 9115AX, 9120AX and 9130AX.

Q: How does the -RS differ from the AIR-ANT2566D4M-R?
A: The -RS adds self-identification circuitry that Catalyst 91xx access points recognise automatically. The -R version has no Self-ID and can be used with AireOS.

Q: Can it be used outdoors?
A: Yes. The antenna is IP-67 rated and operates from -40 C to 70 C, so it suits indoor and outdoor wall-mounted use.
