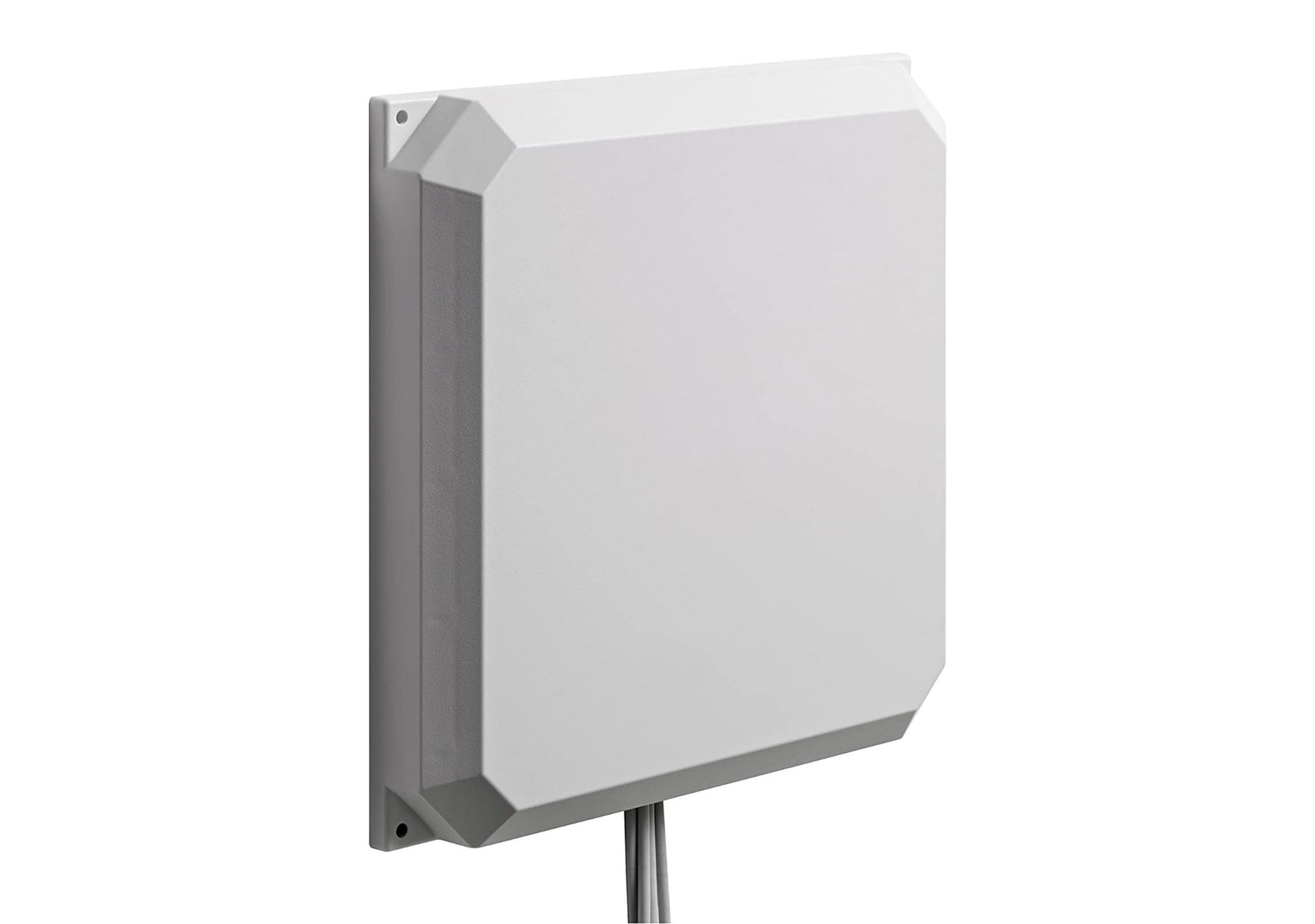

Cisco AIR-ANT2566D4M-R | Aironet Dual-Band 6 dBi Patch Antenna, 4x RP-TNC

AIR-ANT2566D4M-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet AIR-ANT2566D4M-R is a four-port, dual-band directional patch array antenna covering both the 2.4 GHz and 5 GHz Wi-Fi bands. It suits indoor and outdoor deployments where an access point needs four dual-band external antennas, with coverage directed along walls, flat surfaces or masts.

Peak gain is 6 dBi on both bands. The antenna is polarisation-diverse: ports A and C are vertically polarised and ports B and D are horizontally polarised. Connections are four RP-TNC connectors with coupling rings. It covers 2.4-2.5 GHz and 5.15-5.925 GHz, with port-to-port isolation above 30 dB. The standard AIR-ANT2566D4M-R is the non-self-identifying model, so it does not carry the self-identification circuitry of the -RS variant.

The IP-67 rated enclosure operates from -40 to 70 C and withstands winds of 100 MPH. It is a passive antenna and needs no power supply. It is intended for use with approved Cisco Aironet or Catalyst access points that require four dual-band antennas, and an articulating mount allows adjustment in both horizontal and vertical planes.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four-port polarisation-diverse array covering both 2.4 GHz and 5 GHz Wi-Fi bands
- Articulating mount for flat surfaces and masts, adjustable in both horizontal and vertical planes
- Mounting hardware includes mount arm, hose clamps (50-135 mm range), screws, washers and nuts
- Radome can be painted with common non-conductive spray paints such as Krylon or Rust-Oleum
- Suitable for both indoor and outdoor deployments
- IP-67 rated enclosure

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dual-band polarisation-diverse directional array
- Operating frequency ranges: 2.4-2.5 GHz / 5.15-5.925 GHz
- Ports: 4 (A/B/C/D)
- Connector type: 4x RP-TNC with coupling ring
- Peak gain: 6 dBi (2.4 GHz) / 6 dBi (5 GHz)
- Polarisation, ports A and C: Vertical
- Polarisation, ports B and D: Horizontal
- Nominal input impedance: 50 Ohms (both bands)
- VSWR: 2:1 (both bands)
- Elevation plane 3-dB beamwidth: 65 deg (2.4 GHz) / 60 deg (5 GHz)
- Azimuth plane 3-dB beamwidth: 65 deg (2.4 GHz) / 55 deg (5 GHz)
- Front-to-back ratio: > 12 dB (2.4 GHz) / > 20 dB (5 GHz)
- Port-to-port isolation: > 30 dB (both bands)
- Peak gain at or above 30 deg elevation: 3 dBi
- Cable length: 3 ft
- Dimensions: 25.4 x 25.4 x 4.1 cm
- Weight: 1.13 kg
- Ingress protection: IP-67
- Operational wind: 100 MPH
- Operating temperature: -40 to 70 C
- Storage temperature: -40 to 85 C

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna and needs no power supply or injector.

Q: Which access points does it work with?
A: It is designed for approved Cisco Aironet or Catalyst access points that require four dual-band external antennas, such as the Cisco 2802E.

Q: How does it differ from the AIR-ANT2566D4M-RS?
A: The -RS model adds self-identification for Catalyst 91xx access points and requires a Catalyst 9800 controller running IOS-XE 17.4.1 or later. The -R model does not have this circuitry.

Q: How are the ports polarised?
A: Ports A and C are vertically polarised and ports B and D are horizontally polarised, which gives the polarisation diversity needed for multi-antenna access points.

Q: Is it suitable for outdoor mounting?
A: Yes. The enclosure is IP-67 rated and operates from -40 to 70 C. The articulating mount allows installation on walls, flat surfaces or masts.
