Cisco AIR-ANT2566D4M-DS | Dual-Band 4-Port DART Patch Antenna, 6/5 dBi, Self-ID

AIR-ANT2566D4M-DS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The AIR-ANT2566D4M-DS is a dual-band, polarization-diverse directional patch array antenna from the Cisco Aironet antenna range. It suits indoor and outdoor directional coverage with Cisco Catalyst 91xx Series access points that use 4-DART dual-band antennas, and can be mounted on a wall, flat surface or mast.

It covers 2.4 to 2.5 GHz and 5.15 to 5.925 GHz, with a peak gain of 6 dBi on 2.4 GHz and 5 dBi on 5 GHz. Ports A and C are vertically polarized and ports B and D are horizontally polarized, with port-to-port isolation above 30 dB. It uses a 4-DART connector on a 3 ft cable and is IP-67 rated. As a Self-Identifying (SD) model, it includes circuitry so a connected Catalyst 91xx access point can identify the antenna automatically. It is a passive antenna with no power supply of its own.

It connects to the 4-DART port of an approved Cisco Catalyst access point and is supported only on Cisco Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later. It is not supported on AireOS controllers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four-port dual-band design covering both 2.4 GHz and 5 GHz
- Polarization-diverse array with vertical and horizontal polarization ports
- Self-identifying circuitry lets Catalyst 91xx access points detect the antenna automatically
- Designed for indoor and outdoor use with an IP-67 rating

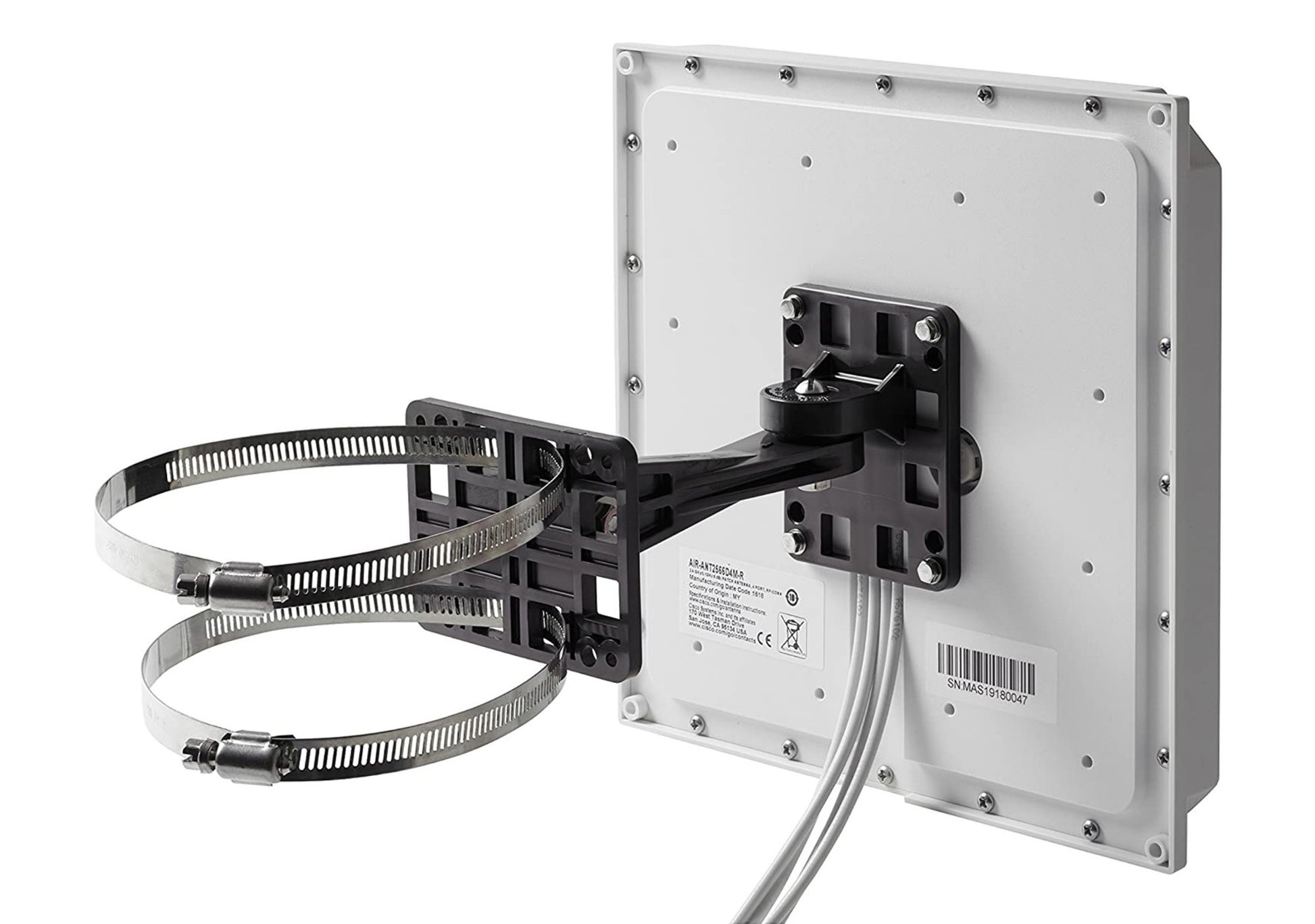

- Articulating mount for flat surfaces and masts, adjustable in horizontal and vertical planes
- Radome can be painted with non-conductive spray paints such as Krylon or Rust-Oleum

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dual-band polarization-diverse directional patch array
- Operating frequency ranges: 2.4 to 2.5 GHz / 5.15 to 5.925 GHz
- Peak gain: 6 dBi (2.4 GHz) / 5 dBi (5 GHz)
- Connector type: 4-DART
- Cable length: 3 ft
- Nominal input impedance: 50 Ohms (both bands)
- VSWR: 2:1 (both bands)
- Polarization, ports A and C: Vertical
- Polarization, ports B and D: Horizontal
- Elevation plane 3-dB beamwidth: 65 degrees (2.4 GHz) / 60 degrees (5 GHz)
- Azimuth plane 3-dB beamwidth: 65 degrees (2.4 GHz) / 55 degrees (5 GHz)
- Front-to-back ratio: greater than 12 dB (2.4 GHz) / greater than 20 dB (5 GHz)
- Port-to-port isolation: greater than 30 dB (both bands)
- Elevation peak gain at or above 30 degrees: 3 dBi
- Dimensions (L x W x H): 10 in. x 10 in. x 1.61 in. (25.4 x 25.4 x 4.1 cm)
- Weight: 2.5 lbs (1.13 kg)
- Water and foreign body ingress: IP-67
- Operational wind: 100 MPH
- Operating temperature range: -40 to 70 C
- Storage temperature range: -40 to 85 C

FAQs

Q: Which access points does this antenna work with?
A: It connects to the 4-DART port of an approved Cisco Catalyst access point that requires dual-band DART antennas, specifically the Catalyst 91xx Series.

Q: Which wireless controllers support it?
A: It is supported only on Cisco Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later. It is not supported on AireOS controllers.

Q: Does the antenna need its own power supply?
A: No. It is a passive antenna. The self-identification circuitry is read by the connected Catalyst 91xx access point.

Q: What does the Self-Identifying (SD) designation mean?
A: The antenna includes circuitry so that a connected Cisco Catalyst 91xx Series access point can identify it automatically.

Q: Can it be mounted outdoors and on a mast?
A: Yes. It is IP-67 rated for indoor and outdoor use and uses an articulating mount that fits flat surfaces and masts.
