• Cisco AIR-ANT2547V-N-HZ dual-band omni antenna for hazardous locations
1 1

Cisco

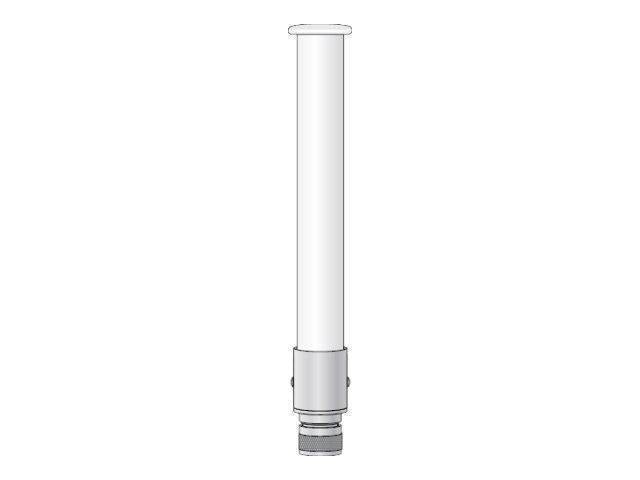

Cisco AIR-ANT2547V-N-HZ | Aironet Dual-Band Omni Antenna, 4/7 dBi, White, HazLoc

AIR-ANT2547V-N-HZ

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco Aironet dual-band omnidirectional antenna is built for outdoor and industrial wireless deployments where both 2.4 GHz and 5 GHz radios need coverage from a single antenna. It is the white, hazardous-location (HazLoc) variant of the AIR-ANT2547V-N family, suited to sites such as industrial plants and other classified areas.

The antenna is an omnidirectional colinear array with 4 dBi gain in the 2.4 GHz band (2400-2483 MHz) and 7 dBi gain in the 5 GHz band (5250-5875 MHz). Polarisation is linear and nominal input impedance is 50 Ohms. The E-plane 3-dB beamwidth is 30 degrees at 2.4 GHz and 14 degrees at 5 GHz. It connects through an N-type connector and is sealed to IP66 and IP67, with an operating temperature range of -40 to 85 C and a wind rating of 100 mph operational and 165 mph survival. It is a passive antenna and needs no power.

It is designed for Cisco Aironet outdoor access points, specifically the Aironet 1550 Series, and is also listed as a dual-band omni option for the IW6300 Series heavy duty access points and Cisco industrial routers and industrial wireless access points such as the IR1100. Mast mounting requires a U-bolt bracket.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band coverage for 2.4 GHz and 5 GHz radios in one antenna
- Mounts directly to the access point with no cable attachments
- Approved for use in hazardous locations (HazLoc variant)
- Designed for outdoor use with Cisco Aironet outdoor access points
- IP66/IP67 sealing and a 165 mph wind survival rating

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omni-directional colinear array
- Operating frequency range: 2400-2483 MHz; 5150-5875 MHz
- 2:1 VSWR bandwidth: 2400-2483 MHz; 5150-5875 MHz
- Nominal input impedance: 50 Ohms
- Gain (2400-2483 MHz): 4 dBi
- Gain (5250-5875 MHz): 7 dBi
- Polarisation: Linear
- E-plane 3-dB beamwidth: 2.4 GHz 30 degrees; 5 GHz 14 degrees
- H-plane 3-dB bandwidth: Omni-directional
- Length: 11.1 in. (28.2 cm)
- Diameter: 1.25 in. (3.17 cm)
- Weight: 6.0 oz. (170.0 g)
- Connector type: N-type (listed by Cisco as N-Male)
- Mounting: Direct to access point, or mast mount with a U-bolt bracket
- Operating temperature: -40 to 85 C (-40 to 185 F)
- Ingress protection: IP66, IP67
- Wind rating: 100 mph (161 kph) operational; 165 mph (265 kph) survival
- Colour and certification: White, Hazardous Locations

FAQs

Q: Which access points is this antenna designed for?
A: It is designed for Cisco Aironet outdoor access points, specifically the Aironet 1550 Series. It is also listed as a dual-band omni option for the IW6300 Series heavy duty access points and for Cisco industrial routers and industrial wireless access points such as the IR1100.

Q: Does it need power or a licence?
A: No. It is a passive antenna and requires no power, and no licence or subscription is involved.

Q: How does the HazLoc variant differ from other AIR-ANT2547V-N models?
A: This is the white version approved for hazardous locations. The antenna design and gain figures of 4 dBi at 2.4 GHz and 7 dBi at 5 GHz are shared across the family, while the hazardous-location approval and white finish identify this variant.

Q: How is the antenna mounted?
A: It mounts directly to the access point with no cable attachments. To mast mount it, a U-bolt bracket is required.

Q: What connector does it use?
A: It uses an N-type connector, listed by Cisco as N-Male, with a nominal input impedance of 50 Ohms.
