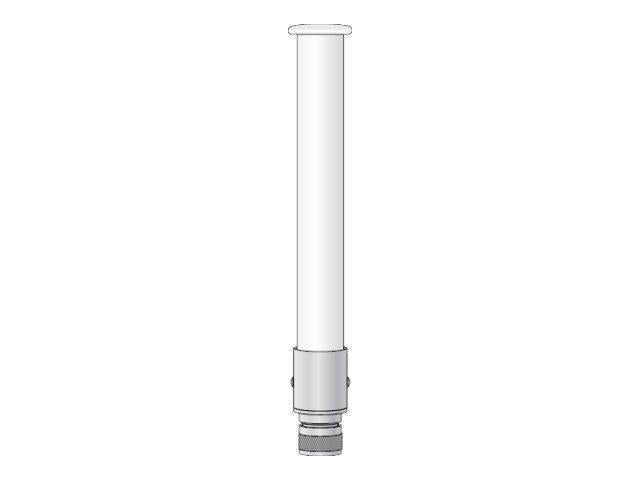

• Cisco AIR-ANT2547V-N dual-band omni antenna, white cylindrical design
1 1

Cisco

Cisco AIR-ANT2547V-N | Aironet Dual-Band Omni Antenna, 4/7 dBi, N-Male, White

AIR-ANT2547V-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco AIR-ANT2547V-N is a dual-band omnidirectional colinear array antenna from the Aironet antenna range. It is built for outdoor Wi-Fi coverage on both the 2.4 GHz and 5 GHz bands and is designed for use with Cisco Aironet outdoor access points, with the Aironet 1550 Series named in Cisco's installation guide.

This white radome version delivers 4 dBi gain at 2.4 GHz and 7 dBi at 5 GHz, with linear polarisation and 50 Ohm nominal impedance. The E-plane 3-dB beamwidth is 30 degrees at 2.4 GHz and 14 degrees at 5 GHz, while the H-plane is fully omnidirectional. It terminates in an N-Male connector and is the standard, non-hazardous-location variant. The housing is IP66 and IP67 rated, operates from -40 to 85 C and is rated for 100 mph operational and 165 mph survival winds. It measures 28.2 cm in length and weighs 170 g.

It mounts directly on the access point with no cable attachments. The Aironet 1560 datasheet and the Catalyst 9124AX hardware guide also list it as a supported external antenna.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band 2.4 GHz and 5 GHz operation in a single antenna
- 360-degree omnidirectional coverage
- Mounts directly to the access point with no cable attachments
- Outdoor-rated with IP66/IP67 ingress protection
- Operating range of -40 to 85 C for harsh climates
- Wind rated to 265 km/h (165 mph) survival
- Passive design, no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omni-directional colinear array
- Operating frequency range: 2400-2483 MHz; 5150-5875 MHz
- 2:1 VSWR bandwidth: 2400-2483 MHz; 5150-5875 MHz
- Nominal input impedance: 50 Ohms
- Gain (2400-2483 MHz): 4 dBi
- Gain (5250-5875 MHz): 7 dBi
- Polarisation: Linear
- E-plane 3-dB beamwidth: 30 degrees (2.4 GHz); 14 degrees (5 GHz)
- H-plane 3-dB beamwidth: Omni-directional
- Length: 28.2 cm (11.1 in.)
- Diameter: 3.17 cm (1.25 in.)
- Weight: 170 g (6.0 oz.)
- Connector type: N-Male
- Operating temperature: -40 to 85 C
- Ingress protection: IP66, IP67
- Wind rating: 161 km/h operational; 265 km/h survival
- Mounting: Direct mount on the access point

FAQs

Q: Which access points is this antenna designed for?
A: It is designed for Cisco Aironet outdoor access points, specifically the Aironet 1550 Series. The Aironet 1560 datasheet and the Catalyst 9124AX hardware guide also list it as a supported external antenna.

Q: Does it need power or a licence?
A: No. It is a passive antenna, so it needs no power supply and no licence.

Q: What connector does it use?
A: It has an N-Male connector and mounts directly on the access point with no cable attachments.

Q: How does it differ from AIR-ANT2547VG-N and AIR-ANT2547V-N-HZ?
A: All three share the same electrical specifications. AIR-ANT2547V-N has a white radome, AIR-ANT2547VG-N has a gray radome and AIR-ANT2547V-N-HZ is the hazardous-locations version.

Q: Can it be mast mounted?
A: It mounts directly on the access point. For mast mounting, a U-bolt bracket is required and must be sourced separately.
