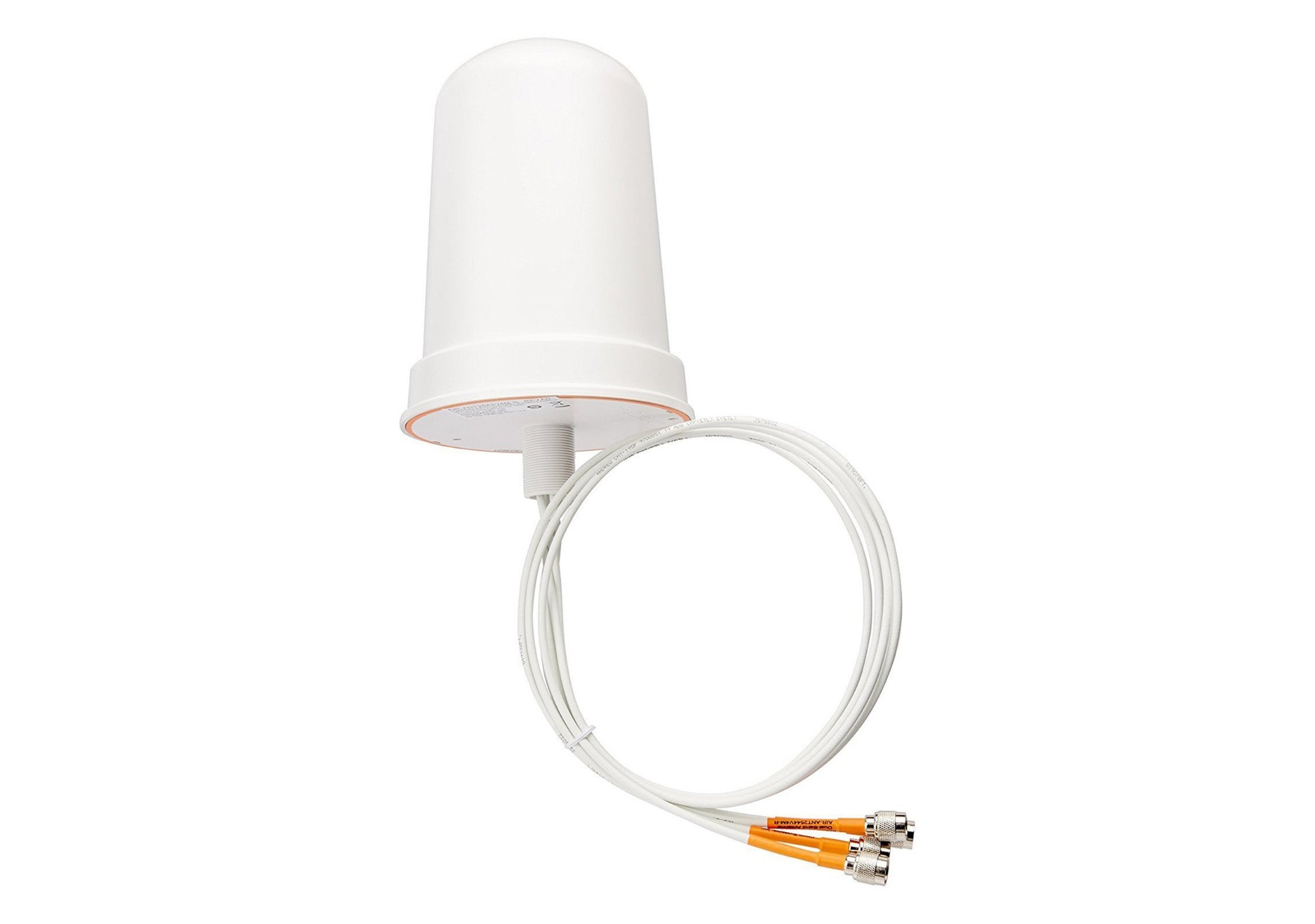

• Cisco AIR-ANT2544V4M-RS dual-band omni antenna with white dome and coiled cable
1 1

Cisco

Cisco AIR-ANT2544V4M-RS | Aironet Dual-Band 4 dBi MIMO Antenna, SIA, 4x RP-TNC

AIR-ANT2544V4M-RS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco AIR-ANT2544V4M-RS is a four-element MIMO dual-band omnidirectional antenna from the Aironet antenna range. It is designed for indoor or outdoor wall or mast mounting with 4x4 Cisco access points that have external RP-TNC antenna connectors, making it a good fit for offices, warehouses and other open areas.

The antenna covers both the 2.4 GHz band (2400-2484 MHz) and the 5 GHz band (5150-5850 MHz), with 4 dBi peak gain on each. All four ports are dual band and terminate in RP-TNC connectors on 3 ft (91.4 cm) plenum-rated cables. Polarisation is linear vertical, with an omnidirectional azimuth pattern and a 60 degree (2.4 GHz) or 33 degree (5 GHz) elevation beamwidth. It operates from -30 to 70 C and needs no power or licence, as it is a passive antenna.

The -RS suffix denotes the Self-Identifying Antenna (SIA) model, which lets a supported access point detect the attached antenna automatically. SIA is supported on Cisco Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later, but not on AireOS controllers. The non-SIA sibling is AIR-ANT2544V4M-R.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Self-identifying antenna circuitry lets the access point and controller detect the attached antenna model
- Four-element MIMO design supports 4x4 dual-band access points
- Dual-band 2.4 GHz and 5 GHz omnidirectional coverage
- Suitable for both indoor and outdoor use
- Plenum-rated 3 ft cables with RP-TNC connectors
- Multi-mount design for wall or mast installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: 4-element MIMO omnidirectional
- Frequency range (2.4 GHz): 2400-2484 MHz
- Frequency range (5 GHz): 5150-5850 MHz
- Peak gain (2.4 GHz): 4 dBi
- Peak gain (5 GHz): 4 dBi
- Nominal input impedance: 50 Ohms
- VSWR: 2:1 or less
- Polarisation: Linear, vertical
- Azimuth plane (3 dB beamwidth): Omnidirectional
- Elevation plane (3 dB beamwidth), 2.4 GHz: 60 degrees
- Elevation plane (3 dB beamwidth), 5 GHz: 33 degrees
- Connectors: 4 x RP-TNC
- Cable: 3 ft (91.4 cm) plenum
- Length: 8.6 in (21.8 cm)
- Diameter: 6.3 in (16 cm)
- Weight (antenna): 1.48 lb (671.5 g)
- Environment: Indoor/outdoor
- Standard: IEEE 802.11n
- Operating temperature: -30 to 70 C

FAQs

Q: Does this antenna need a licence or power supply?
A: No. It is a passive antenna, so it draws no power and requires no licence or subscription.

Q: Which wireless controllers support the self-identifying (SIA) feature?
A: The -RS model is supported on Cisco Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later. It is not supported on AireOS Wireless Controllers.

Q: Which access points does it work with?
A: It is intended for Cisco Aironet and Catalyst access points with dual-band (2.4/5 GHz) RP-TNC external antenna connectors, in 4x4 MIMO configurations.

Q: How does AIR-ANT2544V4M-RS differ from AIR-ANT2544V4M-R?
A: The -RS model adds self-identifying antenna (SIA) circuitry, while the -R model does not. Both are 4 dBi dual-band four-port RP-TNC antennas.

Q: Can it be used outdoors?
A: Yes. It is rated for indoor and outdoor use, with an operating temperature range of -30 to 70 C, and mounts to a wall or mast.
