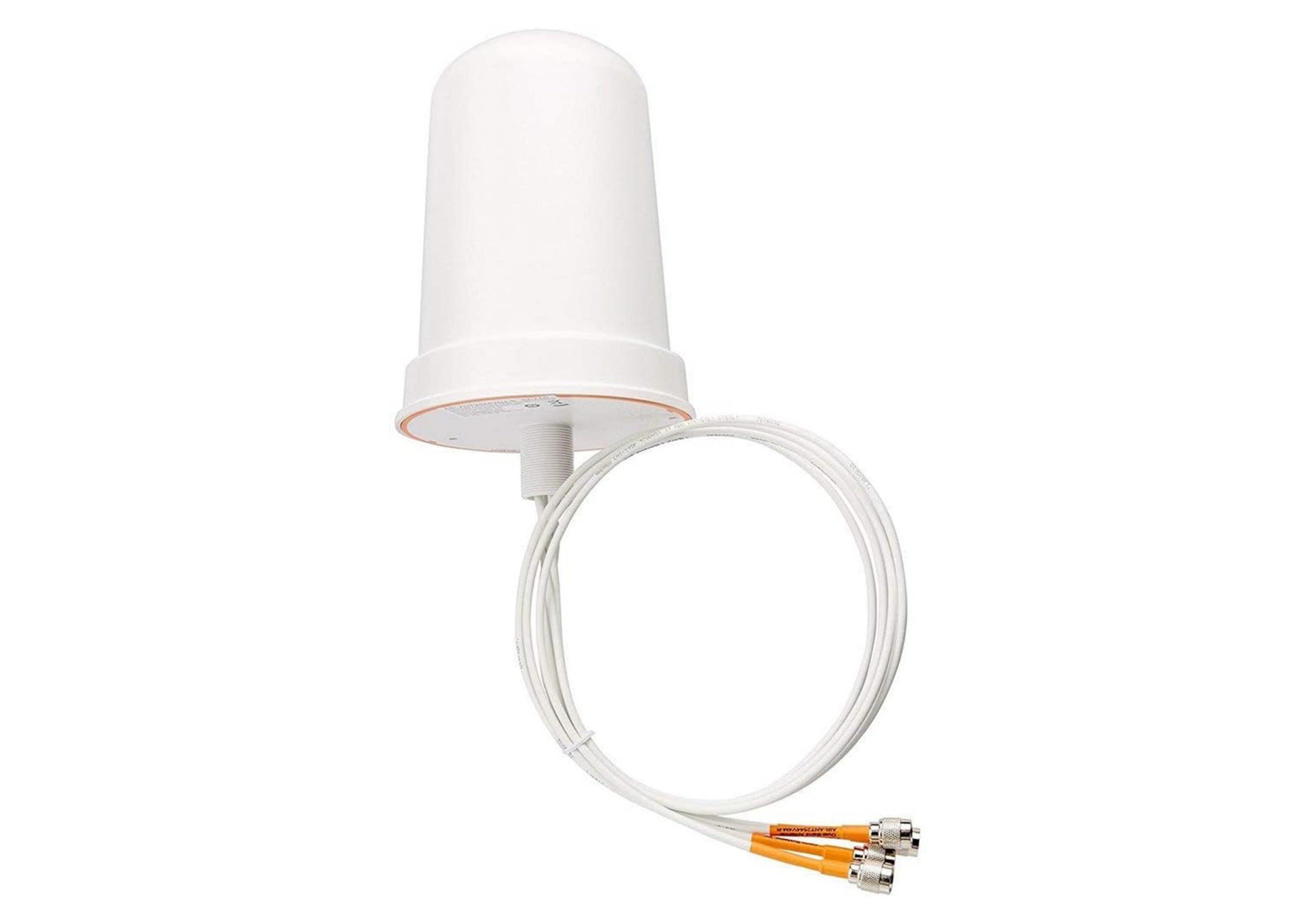

• Cisco AIR-ANT2544V4M-R8 dual-band omni MIMO antenna with RP-TNC pigtails
1 1

Cisco

Cisco AIR-ANT2544V4M-R8 | Aironet Dual-Band Omni Antenna, 8-ft, Wall Mount

AIR-ANT2544V4M-R8

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Aironet AIR-ANT2544V4M-R8 is a dual-band, wall-mounted omnidirectional antenna for 2.4 GHz and 5 GHz operation. It suits indoor or outdoor deployments where the access point needs to sit away from the antenna location, and is built for access points with four RP-TNC dual-band ports.

It provides four dual-band ports for 4x4 MIMO, with 3 dBi gain in the 2.4 GHz band and 2 dBi gain in the 5 GHz band. Each port terminates in an RP-TNC connector on an 8-ft (approximately 2.4 m) cable, giving more flexible placement than the 3-ft version of this antenna. The antenna is passive and needs no power supply.

It works with Aironet 1830, 1850, 2800 and 3800 Series access points, and with Cisco Catalyst 9115AX, 9120AX and 9130AX Series access points.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band omnidirectional coverage across the 2.4 GHz and 5 GHz bands
- Four dual-band ports support 4x4 MIMO access points
- 8-ft antenna cable allows flexible placement away from the access point
- Wall-mount design for indoor or outdoor deployment
- Passive design with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omnidirectional, 4 ports (all ports dual band)
- Gain (2.4 GHz): 3 dBi
- Gain (5 GHz): 2 dBi
- Connectors: 4x RP-TNC (4x4 MIMO)
- Cable length: 8 ft (approx. 2.4 m)
- Mounting: Wall-mounted
- Environment: Indoor/outdoor
- Frequency bands: 2.4 GHz and 5 GHz
- Power: Passive antenna, no power supply required
- Compatible access points: Aironet 1830, 1850, 2800, 3800 Series; Catalyst 9115AX, 9120AX, 9130AX Series

FAQs

Q: Which access points is this antenna compatible with?
A: It works with Aironet 1830, 1850, 2800 and 3800 Series access points, and Cisco Catalyst 9115AX, 9120AX and 9130AX Series access points with RP-TNC dual-band ports.

Q: Does this antenna need power or a licence?
A: No. It is a passive antenna, so it needs no power supply and no licence.

Q: How does this model differ from the 3-ft AIR-ANT2544V4M-R?
A: This model uses 8-ft cables, which lets you mount the antenna further from the access point than the shorter 3-ft version allows.

Q: What gain does it provide in each band?
A: It provides 3 dBi gain in the 2.4 GHz band and 2 dBi gain in the 5 GHz band.

Q: Can it be used outdoors?
A: Yes. It is designed for both indoor and outdoor deployment and is wall-mounted.
