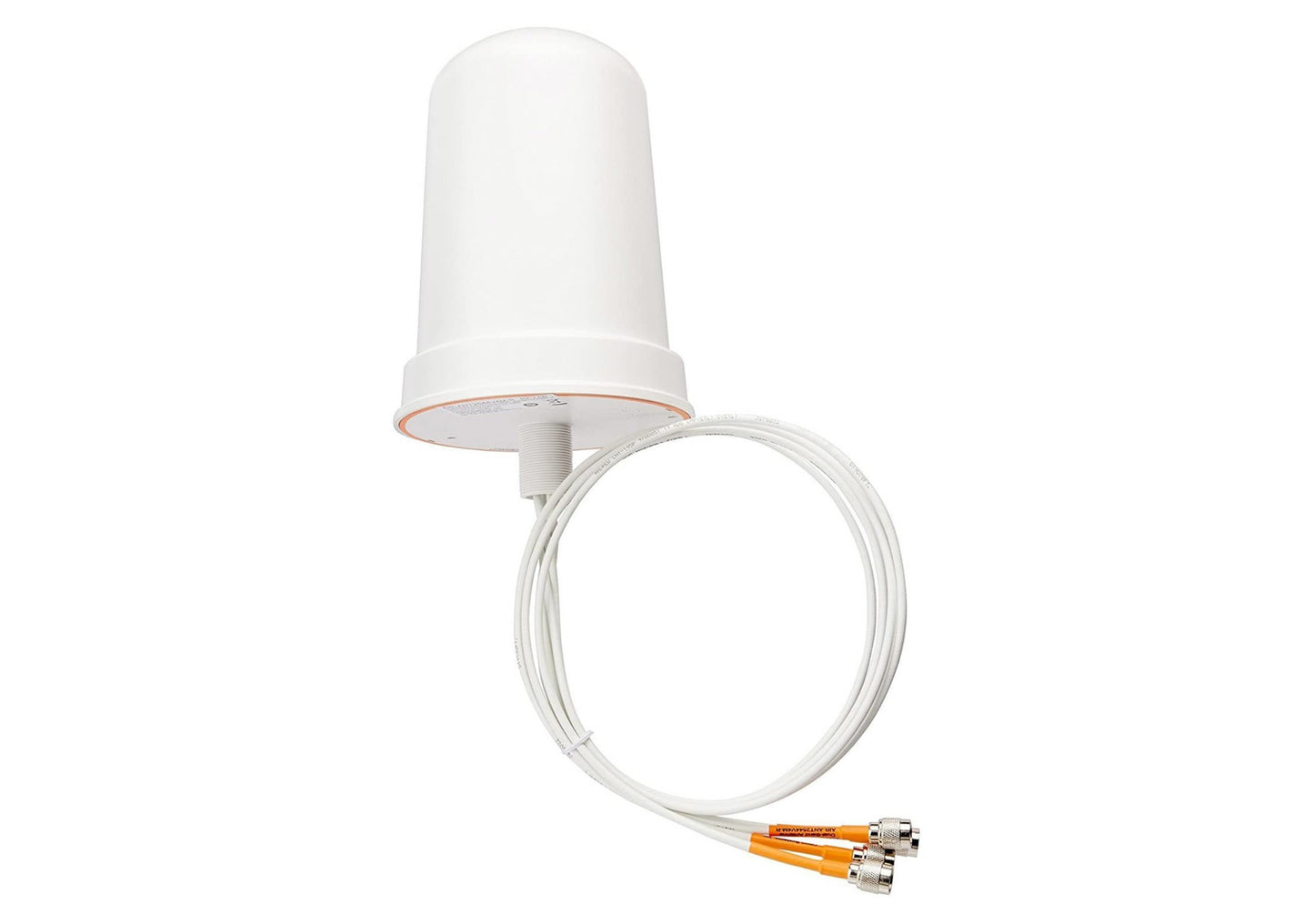

• Cisco AIR-ANT2544V4M-R white cylindrical 4-port MIMO omni antenna
1 1

Cisco

Cisco AIR-ANT2544V4M-R | Aironet Dual-Band 4-Port MIMO Antenna, 4 dBi, RP-TNC

AIR-ANT2544V4M-R

3 in stock

$874.50 inc. GST
$795.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco Aironet dual-band omnidirectional antenna is a 4-element MIMO design covering both the 2.4 GHz and 5 GHz bands from a single enclosure. It suits indoor or outdoor wall- or mast-mounted 802.11n coverage in campus, hospitality and commercial WLAN deployments that use external-antenna Aironet access points.

All four ports are dual band, delivering 4 dBi peak gain on both 2.4 GHz (2400-2484 MHz) and 5 GHz (5150-5850 MHz). Four 3-ft (91.4 cm) plenum-rated cables terminate in RP-TNC connectors and are labelled for correct port mapping. Polarisation is linear vertical with an omnidirectional azimuth pattern, a 60 degree elevation beamwidth at 2.4 GHz and 33 degrees at 5 GHz. It is a passive antenna, so no power is required, and it operates from -30 to 70 C. This is the non-self-identifying variant, which has no self-identifying circuitry.

It is designed for Cisco Aironet access points with dual-band RP-TNC connectors. Wall, mast and ceiling mounting options are supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band 2.4 and 5 GHz MIMO omnidirectional coverage from a single enclosure
- Four plenum-rated 36-inch cables with RP-TNC connectors
- Cables labelled for correct port mapping
- Suitable for indoor or outdoor use
- Wall, mast and ceiling mounting options
- Passive design with no power required
- Works with Cisco Aironet radio devices that have dual-band RP-TNC connectors

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: 4-element MIMO omnidirectional
- Frequency range: 2400-2484 MHz and 5150-5850 MHz
- Peak gain (2.4 GHz): 4 dBi
- Peak gain (5 GHz): 4 dBi
- Ports: 4, all dual band
- Nominal input impedance: 50 Ohms
- VSWR: 2:1 or less
- Polarisation: Linear, vertical
- Azimuth beamwidth (3 dB): Omnidirectional
- Elevation beamwidth (3 dB), 2.4 GHz: 60 degrees
- Elevation beamwidth (3 dB), 5 GHz: 33 degrees
- Cables: 4 x 3-ft (91.4 cm) plenum-rated
- Connector: RP-TNC
- Length: 8.6 in (21.8 cm)
- Diameter: 6.3 in (16 cm)
- Weight: 1.48 lb (671.5 g)
- Environment: Indoor/outdoor
- Standard: IEEE 802.11n
- Operating temperature: -30 to 70 C (-22 to 158 F)

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna, so no power or licence is required.

Q: Which access points does it work with?
A: It is designed for Cisco Aironet access points that have dual-band (2.4 and 5 GHz) RP-TNC connectors.

Q: How does it differ from the -RS version?
A: This -R variant has no self-identifying circuitry. The -RS variant is self-identifying and is supported only on Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later.

Q: Can it be mounted outdoors?
A: Yes. It is rated for indoor and outdoor use across an operating temperature range of -30 to 70 C, with wall and mast mounting options.

Q: How long are the cables and what connectors do they use?
A: It has four 3-ft (91.4 cm) plenum-rated cables, each terminated in an RP-TNC connector.
