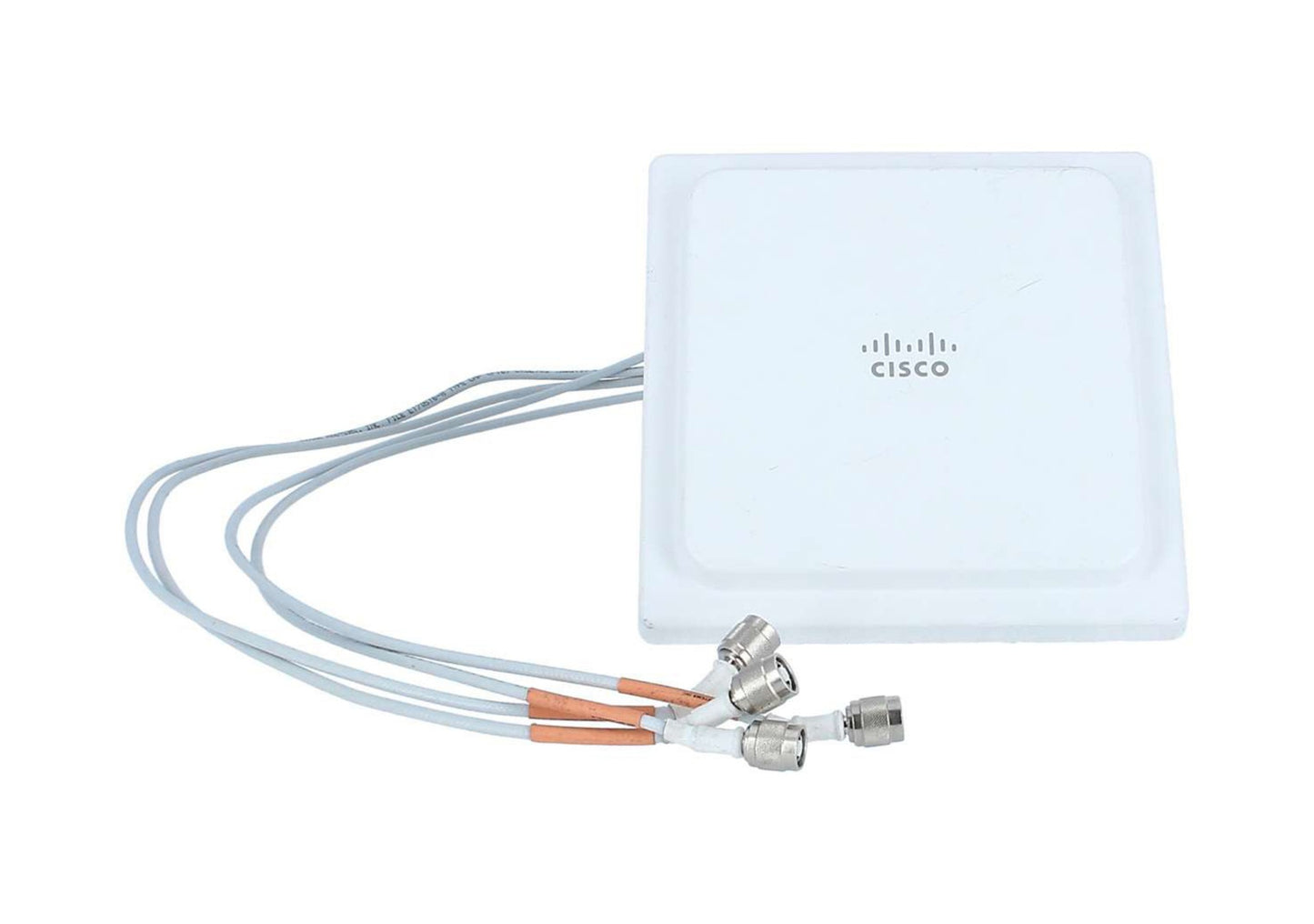

Cisco AIR-ANT2524V4C-R | Aironet Ceiling Omni Antenna, 2/4 dBi, 4x RP-TNC
SKU:AIR-ANT2524V4C-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aironet AIR-ANT2524V4C-R is a four-element, dual-band, low-profile omnidirectional antenna designed for indoor ceiling installation. It suits offices, campuses and similar enterprise environments where 2.4 GHz and 5 GHz Wi-Fi coverage is needed from a ceiling-mounted access point.
The antenna covers 2400-2484 MHz and 5150-5850 MHz with a peak gain of 2 dBi in the 2.4 GHz band and 4 dBi in the 5 GHz band. All four ports are dual band, supporting 4x4 MIMO with linear polarisation and omnidirectional azimuth coverage. Each port terminates in an RP-TNC connector on a 3 ft plenum-rated, UV-stable pigtail cable. The housing measures 7.25 in by 7.25 in and is just 1 in deep, so it sits discreetly against the ceiling.
It is a passive antenna and needs no power. It works with Cisco Aironet and Catalyst access points that use RP-TNC antenna connectors for 4x4 MIMO, and is also documented for Cisco Catalyst IR1100 Rugged Series routers.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Four dual-band ports for 4x4 MIMO operation
- Low-profile design for discreet ceiling installation
- Omnidirectional azimuth coverage in both bands
- Four 3 ft plenum-rated, UV-stable pigtail cables
- RP-TNC connectors for Cisco Aironet and Catalyst access points
- Passive design with no power required
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Antenna type: 4-element, dual-band, low-profile omnidirectional
- Operating frequency ranges: 2400-2484 MHz and 5150-5850 MHz
- Peak gain: 2 dBi (2.4 GHz) / 4 dBi (5 GHz)
- VSWR: 2:1 or less in both bands
- Polarisation: Linear
- Azimuth plane 3 dB beamwidth: Omnidirectional
- Elevation plane 3 dB beamwidth: 69 degrees (2.4 GHz), 60 degrees (5 GHz)
- Ports: 4, all dual band
- Connector: RP-TNC
- Cable: 3 ft (91.4 cm), plenum rated, UV stable
- Mounting: Indoor ceiling mount
- Length: 7.25 in (18.4 cm)
- Width: 7.25 in (18.4 cm)
- Depth: 1 in (2.5 cm)
- Weight: 1.3 lb (0.59 kg)
- Operating temperature: 32 to 133 F (0 to 56 C)
- Environment: Indoor
FAQs
Q: Which access points does this antenna work with?
A: It works with Cisco Aironet and Catalyst access points that have RP-TNC antenna connectors for 4x4 MIMO. It is also documented for Cisco Catalyst IR1100 Rugged Series routers.
Q: Does this antenna need power?
A: No. It is a passive antenna and requires no power supply.
Q: How does AIR-ANT2524V4C-R differ from the -RS version?
A: The -R version uses four RP-TNC connectors. The -RS sibling uses reverse-polarity SMA connectors, so choose the one that matches your access point.
Q: Is this antenna suitable for outdoor use?
A: No. It is designed for indoor ceiling installation with an operating temperature range of 32 to 133 F (0 to 56 C).
Q: What gain does it provide in each band?
A: Peak gain is 2 dBi in the 2.4 GHz band and 4 dBi in the 5 GHz band.
