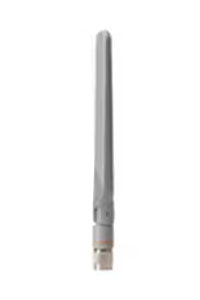

Cisco AIR-ANT2524DW-RS | Aironet Dual-Band Dipole Antenna, White, Self-ID, RP-TNC
SKU:AIR-ANT2524DW-RS
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco Aironet AIR-ANT2524DW-RS is an indoor dual-band articulated dipole antenna in a white radome, designed for office wireless LAN deployments. It suits Cisco Catalyst 91xx and Aironet access points that have external RP-TNC antenna ports and need an omnidirectional dual-band antenna.
It delivers 2 dBi peak gain at 2.4 GHz and 4 dBi at 5 GHz, covering 2400 to 2500 MHz and 5150 to 5850 MHz with a 50 Ohm impedance and VSWR below 2:1. The RP-TNC plug connects directly to the access point, and the articulated base rotates 360 degrees at the connection point and 0 to 90 degrees at the joint, so the antenna can be positioned for the space. This -RS variant adds self-identifying circuitry with a built-in EEPROM, so the access point can detect the antenna type and gain automatically.
The self-identifying function works with Cisco Catalyst 9800 Series Wireless Controllers running IOS-XE 17.4.1 or later, and is not supported on AireOS controllers. On Catalyst 91xx access points it must be connected to Port A (purple text). The antenna is passive and needs no power.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Articulated base rotates 360 degrees at the connection point and 0 to 90 degrees at the joint
- Built-in EEPROM lets the access point automatically configure the antenna type and gain in the Wireless LAN Controller
- Self-identifying function indicated by a purple band on the antenna
- Dual-band operation for simultaneous 2.4 GHz and 5 GHz radios
- Electrically identical to the AIR-ANT2524DB-R, DG-R and DW-R, differing by radome colour and self-ID circuitry
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Antenna type: Dual-band dipole
- Operating frequency range: 2400 to 2500 MHz; 5150 to 5850 MHz
- Nominal input impedance: 50 Ohms
- VSWR: Less than 2:1
- Peak gain at 2.4 GHz: 2 dBi
- Peak gain at 5 GHz: 4 dBi
- Elevation plane 3dB beamwidth at 2.4 GHz: 63 degrees
- Elevation plane 3dB beamwidth at 5 GHz: 39 degrees
- Connector type: RP-TNC plug
- Antenna length: 6.63 in. (168.5 mm)
- Antenna width: 0.83 in. (21 mm)
- Radome length: 4.88 in. (124 mm)
- Weight: 1.3 oz
- Operating temperature: -4 to 140 F (-20 to 60 C)
- Storage temperature: -40 to 185 F (-40 to 85 C)
- Environment: Indoor, office
- Radome colour: White, self-identifying
FAQs
Q: Does this antenna need a licence?
A: No licence is required for the antenna itself. The self-identifying function requires a Cisco Catalyst 9800 Series Wireless Controller running IOS-XE 17.4.1 or later.
Q: Does it need power?
A: No. It is a passive antenna and requires no power.
Q: Which access points and controllers does it work with?
A: It works with Cisco Aironet and Catalyst access points that have dual-band RP-TNC antenna ports (labelled in orange text) supporting simultaneous 2.4 GHz and 5 GHz operation. The self-ID function is supported only with Catalyst 9800 Series controllers on IOS-XE 17.4.1 or later, and not on AireOS controllers.
Q: Which port should it be connected to?
A: On Catalyst 91xx series access points it must be connected to Port A (purple text).
Q: How does the -RS differ from the AIR-ANT2524DW-R?
A: The -RS adds self-identifying circuitry with a built-in EEPROM, indicated by a purple band. Otherwise it is electrically identical to the other AIR-ANT2524Dx-R antennas, with a white radome.
