Cisco AIR-ANT2524DW-R | Aironet Dual-Band Dipole Antenna, 2/4 dBi, White
SKU:AIR-ANT2524DW-R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

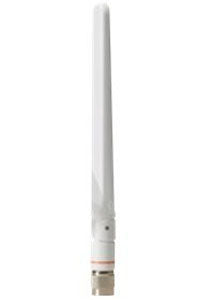

The Cisco Aironet AIR-ANT2524DW-R is an indoor dual-band articulating dipole antenna for Aironet access points with dual-band RP-TNC antenna ports. It suits office and other indoor deployments where an external antenna is needed on a dual-band access point. This SKU has a white radome.
A single antenna covers both bands: 2400 to 2500 MHz with a peak gain of 2 dBi, and 5150 to 5850 MHz with a peak gain of 4 dBi. Nominal input impedance is 50 Ohms with a VSWR below 2:1. The elevation plane 3 dB beamwidth is 63 degrees at 2.4 GHz and 39 degrees at 5 GHz. The connector is an RP-TNC plug, and the antenna is 168.5 mm long and weighs 1.3 oz. The articulating base rotates 360 degrees at the connection point and 0 to 90 degrees at the joint, so the antenna can be angled to suit the installation.
It is intended for Cisco Aironet access points that support simultaneous 2.4 GHz and 5 GHz operation and have dual-band antenna ports, which are labelled in orange text. The orange ID band on the antenna marks it as dual-band. It is a passive antenna and needs no power supply.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Dual-band operation in both the 2.4 GHz and 5 GHz bands from a single antenna
- Articulating base rotates 360 degrees at the connection point and 0 to 90 degrees at the joint
- Orange ID band marks it as dual-band for the orange-labelled antenna ports on Aironet access points
- Passive design with no power supply required
- White radome for indoor office environments
- Electrically identical to the other AIR-ANT2524Dx-R models, which differ only in radome colour
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Antenna type: Dual-band dipole
- Operating frequency range: 2400 to 2500 MHz
- Operating frequency range: 5150 to 5850 MHz
- Peak gain at 2.4 GHz: 2 dBi
- Peak gain at 5 GHz: 4 dBi
- Nominal input impedance: 50 Ohms
- VSWR: Less than 2:1
- Elevation plane 3 dB beamwidth at 2.4 GHz: 63 degrees
- Elevation plane 3 dB beamwidth at 5 GHz: 39 degrees
- Connector type: RP-TNC plug
- Antenna length: 168.5 mm (6.63 in)
- Antenna width: 21 mm (0.83 in)
- Radome length: 124 mm (4.88 in)
- Weight: 1.3 oz
- Operating temperature: -20 to 60 C (-4 to 140 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Environment: Indoor, office
- Radome colour: White
FAQs
Q: Which access points is this antenna designed for?
A: It is designed for Cisco Aironet access points that support simultaneous 2.4 GHz and 5 GHz operation and have dual-band RP-TNC antenna ports, labelled in orange text.
Q: Can I use it on an access point with single-band antenna ports?
A: It is intended for dual-band antenna ports. Using it on single-band ports may result in lower performance.
Q: Does it need power?
A: No. It is a passive antenna and needs no power supply.
Q: How does it differ from the other AIR-ANT2524Dx-R models?
A: The AIR-ANT2524Dx-R models are electrically identical and differ only in radome colour. This SKU has a white radome.
Q: Is it suitable for outdoor use?
A: No. It is designed for indoor and office environments, with an operating temperature of -20 to 60 C.
