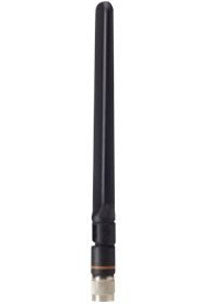

• Cisco AIR-ANT2524DB-R black dipole antenna with silver RP-TNC connector
1 1

Cisco

Cisco AIR-ANT2524DB-R | Dual-Band Dipole Antenna, 2/4 dBi, RP-TNC, Black

AIR-ANT2524DB-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Aironet dual-band dipole antenna is a single black articulating dipole for indoor omnidirectional Wi-Fi coverage. It suits Cisco Aironet and Catalyst access points that have external RP-TNC antenna connectors, and it covers both the 2.4 GHz and 5 GHz bands from one antenna.

Gain is 2 dBi in the 2.4 GHz band and 4 dBi in the 5 GHz band, across 2.4 to 2.5 GHz and 5.150 to 5.925 GHz. The pattern is omnidirectional in azimuth with linear polarisation and a 40-degree elevation beamwidth. VSWR is below 2:1. The antenna is 6.6 in. (16.8 cm) long, finished in black, and its 90-degree articulation radius lets you angle it for the best coverage. It is a passive antenna with no cable and no power requirement, and it mounts directly to the RP-TNC connector.

It can be used with the Aironet 1830, 1850, 2800 and 3800 Series and the Catalyst 9115AX, 9120AX and 9130AX Series access points.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single black dipole antenna with RP-TNC connector
- Dual-band operation across 2.4 GHz and 5 GHz
- Indoor omnidirectional coverage
- 90-degree articulation radius for angling the antenna
- No cable, mounts directly to the access point's RP-TNC connector
- Passive design with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole, 1 port, black
- Frequency range: 2.4 to 2.5 GHz and 5.150 to 5.925 GHz
- Gain: 2 dBi at 2.4 GHz, 4 dBi at 5 GHz
- VSWR: Less than 2:1
- Polarisation: Linear
- Azimuth 3-dB beamwidth: Omnidirectional
- Elevation 3-dB beamwidth: 40 degrees
- Connector: RP-TNC
- Cable length: None
- Dimensions: 6.6 in. (16.8 cm)
- Articulation radius: 90 degrees
- Mounting: To RP-TNC connector
- Deployment: Indoor omnidirectional coverage
- Power: Passive antenna, no power required

FAQs

Q: Which access points can this antenna be used with?
A: Cisco states it can be used with the Aironet 1830, 1850, 2800 and 3800 Series and the Catalyst 9115AX, 9120AX and 9130AX Series access points, all of which use RP-TNC connectors.

Q: Does this antenna need power or a licence?
A: No. It is a passive antenna, so it needs no power and no licence.

Q: What coverage pattern does it provide?
A: It has an omnidirectional azimuth pattern with a 40-degree elevation beamwidth, intended for indoor coverage.

Q: Does it come with a cable?
A: No. It has no cable and mounts directly to the RP-TNC connector on the access point.

Q: Can the antenna be angled after fitting?
A: Yes. It has a 90-degree articulation radius, so it can be positioned to suit the coverage area.
