Cisco AIR-ANT2513P4M-NS | Aironet 13 dBi 4x4 MIMO Patch Antenna, Self-Identifying

AIR-ANT2513P4M-NS

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

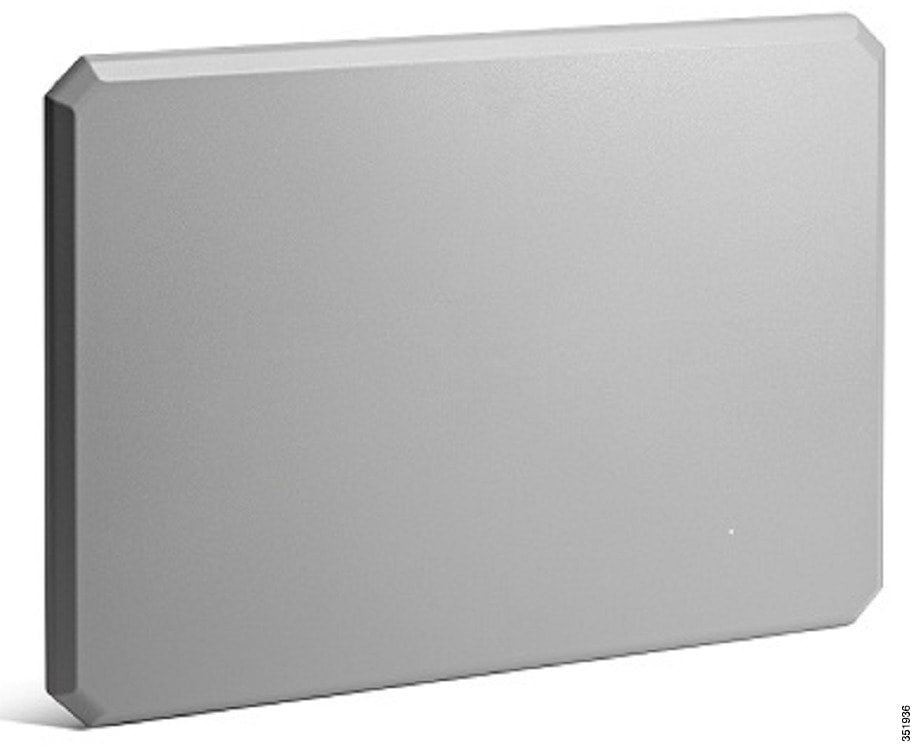

The Cisco Aironet AIR-ANT2513P4M-NS is a four-port, dual-band directional patch array antenna covering the 2.4 GHz and 5 GHz Wi-Fi bands. It suits dual-band directional coverage for indoor and outdoor deployments with supported Cisco Aironet access points, mounted on a wall, ceiling or pole/mast.

It delivers 13 dBi peak gain on both bands across four 4x4 MIMO ports with N-type female bulkhead connectors. The antenna is polarization-diverse, with ports A and C vertical and ports B and D horizontal. Beamwidth is 33 degrees in elevation and 31 degrees in azimuth at 2.4 GHz, and 27 degrees in elevation and 31 degrees in azimuth at 5 GHz. It is IP67 rated, operates from -40 to 85 C and withstands operational winds of 100 MPH. The -NS variant is self-identifying: a built-in EEPROM lets supported Cisco access points detect the antenna type and gain automatically.

It is designed for use with Cisco Aironet 3702P and 1570 series access points. Four low-loss cables are required, such as AIR-CAB005LL-R-N= (5 ft, RP-TNC to N-type) for the AP3702P, or AIR-CAB005LL-N= and AIR-CAB010LL-N= (5 ft and 10 ft, N-type) for the AP1570. Confirm compatibility against the datasheet of the specific access point.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four-port polarization-diverse patch array covering the 2.4 GHz and 5 GHz Wi-Fi bands
- Self-identifying (-NS) design: a built-in EEPROM lets supported Cisco access points auto-detect antenna type and gain and configure it in the wireless controller
- Articulating mount for flat surfaces and masts, adjustable in horizontal and vertical planes
- Wall, ceiling or pole/mast mounting, with poles up to 5 inches (12.7 cm) in diameter
- Paintable radome using common non-conductive spray paints
- Suited to indoor and outdoor deployments with supported Cisco access points
- IP67 rated for outdoor use, with separate cables required for connection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dual-band polarization-diverse patch array
- Frequency range (2.4 GHz band): 2.4-2.5 GHz
- Frequency range (5 GHz band): 5.15-5.925 GHz
- Peak gain: 13 dBi (2.4 GHz and 5 GHz)
- Ports: 4 (4x4 MIMO)
- Connector type: N-Female bulkhead, 4 connectors
- Polarization (ports A and C): Vertical
- Polarization (ports B and D): Horizontal
- Nominal input impedance: 50 Ohms
- VSWR (2.4 GHz): 1.6:1
- VSWR (5 GHz): 1.5:1 (above 5.7 GHz to 5.9 GHz); 2:1 (5.15 GHz to 5.7 GHz)
- Elevation plane 3-dB beamwidth: 33 degrees (2.4 GHz); 27 degrees (5 GHz)
- Azimuth plane 3-dB beamwidth: 31 degrees (2.4 GHz); 31 degrees (5 GHz)
- V-Pol maximum sidelobe level: -15 dBc (2.4 GHz); -12 dBc (5 GHz)
- H-Pol maximum sidelobe level: -10 dBc (2.4 GHz); -12 dBc (5 GHz)
- Front-to-back ratio: > 30 dB (both bands)
- Dimensions (L x W x H): 14.5 x 20 x 0.8 in. (36.8 x 50.7 x 2.11 cm)
- Weight: 81.1 oz. (2.3 kg)
- Ingress protection: IP67
- Operational wind: 100 MPH
- Operating temperature: -40 to 85 C

FAQs

Q: What does the -NS suffix mean?
A: The -NS variant is self-identifying. A built-in EEPROM lets supported Cisco access points detect the antenna type and gain automatically, so it can be configured in the wireless controller.

Q: Does this antenna need power?
A: No. It is a passive antenna and needs no power. The self-identifying EEPROM is read by the connected access point.

Q: Which access points does it work with?
A: It is designed for Cisco Aironet 3702P and 1570 series access points. Check the datasheet of your specific access point before ordering.

Q: Which cables do I need to connect it?
A: Four low-loss cables are required. Examples are AIR-CAB005LL-R-N= (5 ft, RP-TNC to N-type) for the AP3702P, or AIR-CAB005LL-N= and AIR-CAB010LL-N= (5 ft and 10 ft, N-type) for the AP1570.

Q: Which ports carry which polarization?
A: Ports A and C are vertically polarized and ports B and D are horizontally polarized, giving polarization diversity across the four 4x4 MIMO ports.

Q: Can it be mounted outdoors?
A: Yes. It is IP67 rated, operates from -40 to 85 C and withstands operational winds of 100 MPH. It mounts to a wall, ceiling or pole/mast up to 5 inches (12.7 cm) in diameter.
