Cisco AIR-ANT2513P4M-N | Aironet Dual-Band 13 dBi 4-Port Patch Antenna, N-Type

AIR-ANT2513P4M-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

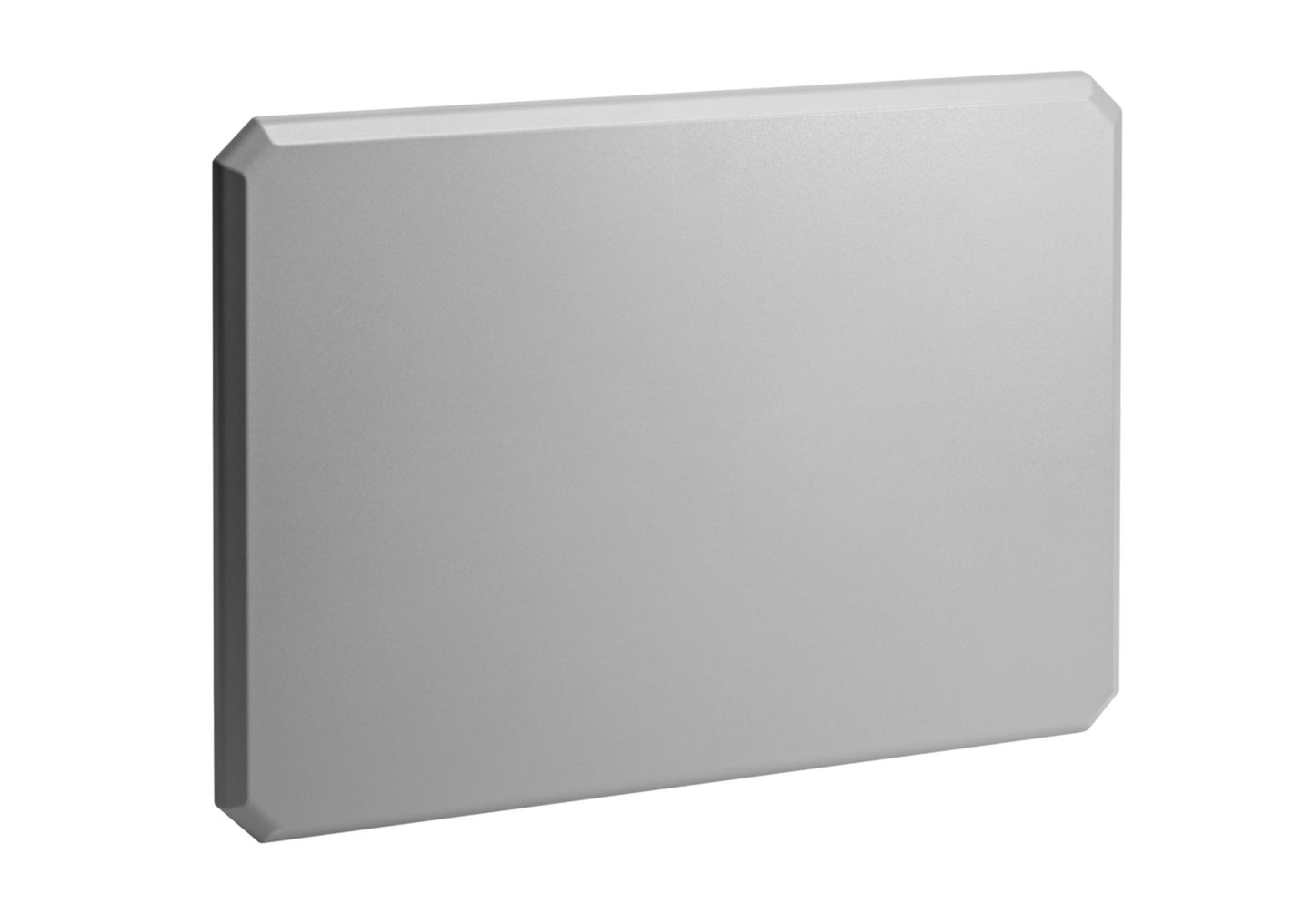

The Cisco Aironet AIR-ANT2513P4M-N is a four-port, dual-band directional patch array antenna for 4x4 MIMO wireless access points. It covers the 2.4 GHz and 5 GHz Wi-Fi bands with 13 dBi peak gain on both, and is suited to directional coverage in outdoor and high-density areas such as stadiums and large venues.

The antenna is polarization-diverse. Ports A and C are vertically polarised and ports B and D are horizontally polarised, with four N-Female bulkhead connectors for the access point feeds. It operates across 2.4-2.5 GHz and 5.15-5.925 GHz with a 50 ohm nominal impedance, a front-to-back ratio above 30 dB, and 3-dB beamwidths of 31 degrees in azimuth on both bands. It is IP67 rated, withstands operational winds of 100 MPH and operates from -40 C to 85 C. A built-in EEPROM lets the access point read the antenna type and gain and configure it automatically in the wireless controller. The 4-port N-type female version is AIR-ANT2513P4M-N.

The antenna mounts on a wall, ceiling or a pole up to 5 in. (12.7 cm) in diameter. It is designed for use with Cisco Aironet 3702P and 1570 series access points, and Cisco also lists it for the Catalyst 9124AX external-antenna model and the Catalyst IR1100 rugged series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four-port polarization-diverse patch array covering the 2.4 GHz and 5 GHz Wi-Fi bands
- Built-in EEPROM that the access point reads to automatically configure the antenna type and gain in the wireless controller
- Outdoor rated (IP67) with no cable attachments
- Mounts on a wall, ceiling or pole up to 5 in. (12.7 cm) in diameter
- Directional 13 dBi gain on both bands for stadium and high-density coverage
- Passive design that requires no power

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dual-band polarization-diverse patch array
- Operating frequency: 2.4-2.5 GHz / 5.15-5.925 GHz
- Peak gain: 13 dBi (2.4 GHz) / 13 dBi (5 GHz)
- Ports: 4 (4x4 MIMO)
- Connector type: N-Female bulkhead
- Nominal input impedance: 50 ohms
- VSWR: 1.6:1 (2.4 GHz); 1.5:1 above 5.7 GHz to 5.9 GHz and 2:1 from 5.15 GHz to 5.7 GHz (5 GHz)
- Polarization (ports A and C): Vertical
- Polarization (ports B and D): Horizontal
- Elevation 3-dB beamwidth: 33 degrees (2.4 GHz) / 27 degrees (5 GHz)
- Azimuth 3-dB beamwidth: 31 degrees (2.4 GHz) / 31 degrees (5 GHz)
- V-Pol maximum sidelobe level: -15 dBc (2.4 GHz) / -12 dBc (5 GHz)
- H-Pol maximum sidelobe level: -10 dBc (2.4 GHz) / -12 dBc (5 GHz)
- Front-to-back ratio: > 30 dB (both bands)
- Length: 14.5 in. (36.8 cm)
- Width: 20 in. (50.7 cm)
- Height: 0.8 in. (2.11 cm)
- Weight: 81.1 oz. (2.3 kg)
- Ingress protection: IP67
- Operational wind: 100 MPH
- Operating temperature: -40 C to 85 C

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna and requires no power.

Q: Which access points is it designed for?
A: It is designed for use with Cisco Aironet 3702P and 1570 series access points. Cisco also lists it for the Catalyst 9124AX external-antenna model and the Catalyst IR1100 rugged series.

Q: How can it be mounted?
A: It mounts on a wall, ceiling or a pole up to 5 in. (12.7 cm) in diameter.

Q: How does it differ from AIR-ANT2513P4M-NS?
A: AIR-ANT2513P4M-N is the 4-port, 13 dBi version with N-type female connectors. The AIR-ANT2513P4M-NS variant is covered in the same installation guide.

Q: Does the access point detect the antenna automatically?
A: Yes. A built-in EEPROM lets the access point read the antenna type and gain and configure it automatically in the wireless controller.
