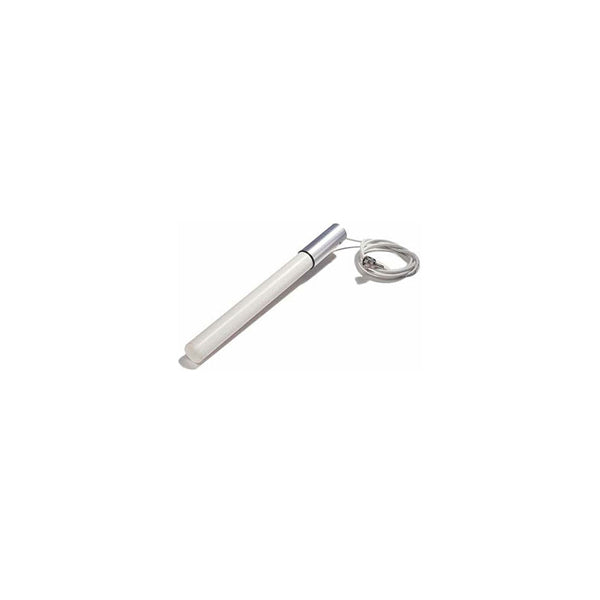

• Cisco AIR-ANT2506 2.4GHz 5.2dBi Omni outdoor antenna with silver pen-like design
1 1

Cisco

Cisco AIR-ANT2506 | Aironet 2.4GHz 5.2dBi Mast Mount Antenna, RP-TNC

AIR-ANT2506

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet AIR-ANT2506 is a 2.4 GHz omnidirectional dipole antenna with 5.2 dBi nominal gain, built for WLAN applications in the 2.4 GHz band. It suits indoor or outdoor deployments where an access point or bridge needs wider vertical coverage from a mast-mounted antenna.

The antenna offers linear, vertical polarisation with a 36 degree E-plane beamwidth and an omnidirectional H-plane pattern. Nominal impedance is 50 Ohms with a VSWR of less than 2:1 (1.5:1 nominal). A 3 ft (0.91 m) RG-58 cable with an RP-TNC connector attaches the antenna to the radio. The unit stands 11.5 in (29.2 cm) high and 1.125 in (2.8 cm) wide, and is rated for operation from -30 to 70 C.

It mounts on a mast up to 2 in (5.08 cm) in diameter. Radome drain holes let moisture escape, so mount it with the cable pointing down. It is passive and needs no power, and it works with 2.4 GHz Cisco Aironet radios that use an RP-TNC connector.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Omnidirectional 2.4 GHz coverage for WLAN applications
- 5.2 dBi nominal gain in a dipole design
- Suited to indoor or outdoor mast mounting
- Mounting bracket supplied with the antenna
- Radome drain holes allow moisture to escape when mounted cable-down
- Passive design with no power requirement
- Can be deployed as a diversity pair

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole
- Frequency band: 2.4 GHz
- Operating frequency range: 2.4 to 2.84 GHz
- Gain: 5.2 dBi
- Polarisation: Linear, vertical
- E-plane (3 dB bandwidth): 36 degrees
- H-plane (3 dB bandwidth): Omnidirectional
- Nominal input impedance: 50 Ohms
- VSWR: Less than 2:1, 1.5:1 nominal
- Environment: Indoor/outdoor
- Cable: 3 ft (0.91 m) RG-58
- Connector: RP-TNC
- Mounting: Mast, 2 in (5.08 cm) maximum
- Dimensions (H x W): 11.5 in x 1.125 in (29.2 cm x 2.8 cm)
- Operating temperature: -30 to 70 C (-22 to 158 F)

FAQs

Q: Does this antenna need power or a licence?
A: No. It is a passive antenna, so it needs no power supply and no software licence.

Q: Which radios does it work with?
A: It works with 2.4 GHz Cisco Aironet radios that have an RP-TNC connector.

Q: What mast size does it fit?
A: It mounts on masts up to 2 in (5.08 cm) in diameter using the supplied mounting bracket.

Q: Which way should I mount it?
A: Mount it with the cable pointing down so the radome drain holes can clear moisture.

Q: Can I use two of these in a diversity pair?
A: Yes. The antenna can be used in a diversity pair with a compatible 2.4 GHz Aironet radio.
