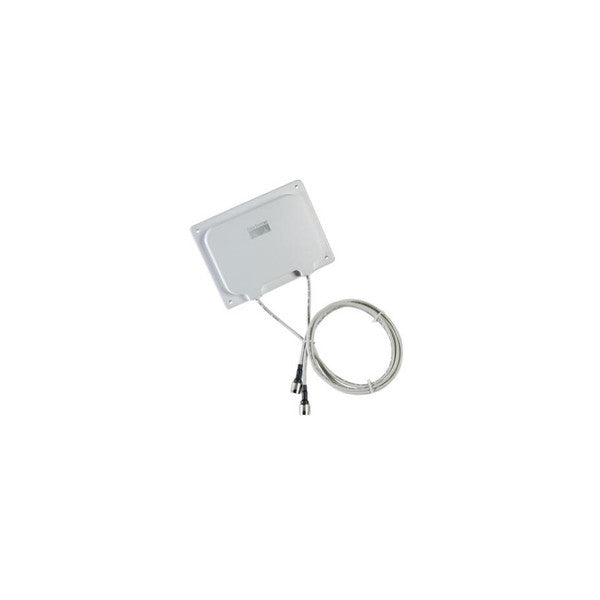

• Cisco AIR-ANT2485P-R 2.4GHz 8.5dBi white patch antenna with coiled cable
1 1

Cisco

Cisco AIR-ANT2485P-R | Aironet 2.4GHz 8.5dBi Patch Antenna, RP-TNC

AIR-ANT2485P-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Aironet AIR-ANT2485P-R is a single-patch directional antenna for the 2.4 GHz band, intended for wireless LAN deployments where focused coverage is needed from a wall or pole mount. It suits corridors, open areas and point-to-area links and can be installed indoors or outdoors.

It delivers 8.5 dBi of peak gain across 2400 to 2484 MHz with linear, vertical polarisation and a nominal impedance of 50 Ohms. Beamwidth is 56 degrees in the E-plane and 66 degrees in the H-plane, with a 20 dB front-to-back ratio. A 36 inch (91.4 cm) plenum-rated cable is attached and ends in an RP-TNC connector, and the antenna body is 5.1 inches (12.9 cm) long. For outdoor use, the orientation arrow on the back must point up.

It is designed for Cisco Aironet 2.4 GHz access points and bridges that use RP-TNC antenna connectors, such as the AIR-AP1242AG-A-K9. It is a passive antenna and needs no power.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Directional single-patch design for focused 2.4 GHz coverage
- 8.5 dBi peak gain across the full 2400 to 2484 MHz band
- Suitable for both indoor and outdoor installation
- Plenum-rated 36 inch attached cable with RP-TNC connector
- Linear vertical polarisation with 56 and 66 degree beamwidths
- Passive antenna with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Single patch, directional
- Operating frequency range: 2400 - 2484 MHz
- Peak gain: 8.5 dBi
- Polarisation: Linear, vertical
- Nominal input impedance: 50 Ohms
- 2:1 VSWR bandwidth: 2400 - 2484 MHz
- E-plane 3-dB beamwidth: 56 degrees
- H-plane 3-dB beamwidth: 66 degrees
- Front-to-back ratio: 20 dB
- Cross-pol discrimination: -15 dB
- Cable: 36 in. (91.4 cm) AA-9303 or equivalent, plenum rated
- Connector type: RP-TNC
- Length: 5.1 in. (12.9 cm)
- Power: Passive antenna, no power required

FAQs

Q: Which devices does the AIR-ANT2485P-R work with?
A: It is designed for Cisco Aironet 2.4 GHz access points and bridges that have RP-TNC antenna connectors, such as the AIR-AP1242AG-A-K9.

Q: Can it be used outdoors?
A: Yes. It is suitable for indoor and outdoor installation. For outdoor use, mount it with the orientation arrow on the back pointing up.

Q: Does this antenna need power?
A: No. It is a passive antenna and draws no power. It connects to the access point through its attached RP-TNC cable.

Q: What frequency band does it cover?
A: It covers the 2.4 GHz band, 2400 to 2484 MHz, so it is not suitable for 5 GHz radios.

Q: How long is the attached cable?
A: The attached cable is 36 inches (91.4 cm) long, plenum rated, and ends in an RP-TNC connector.
