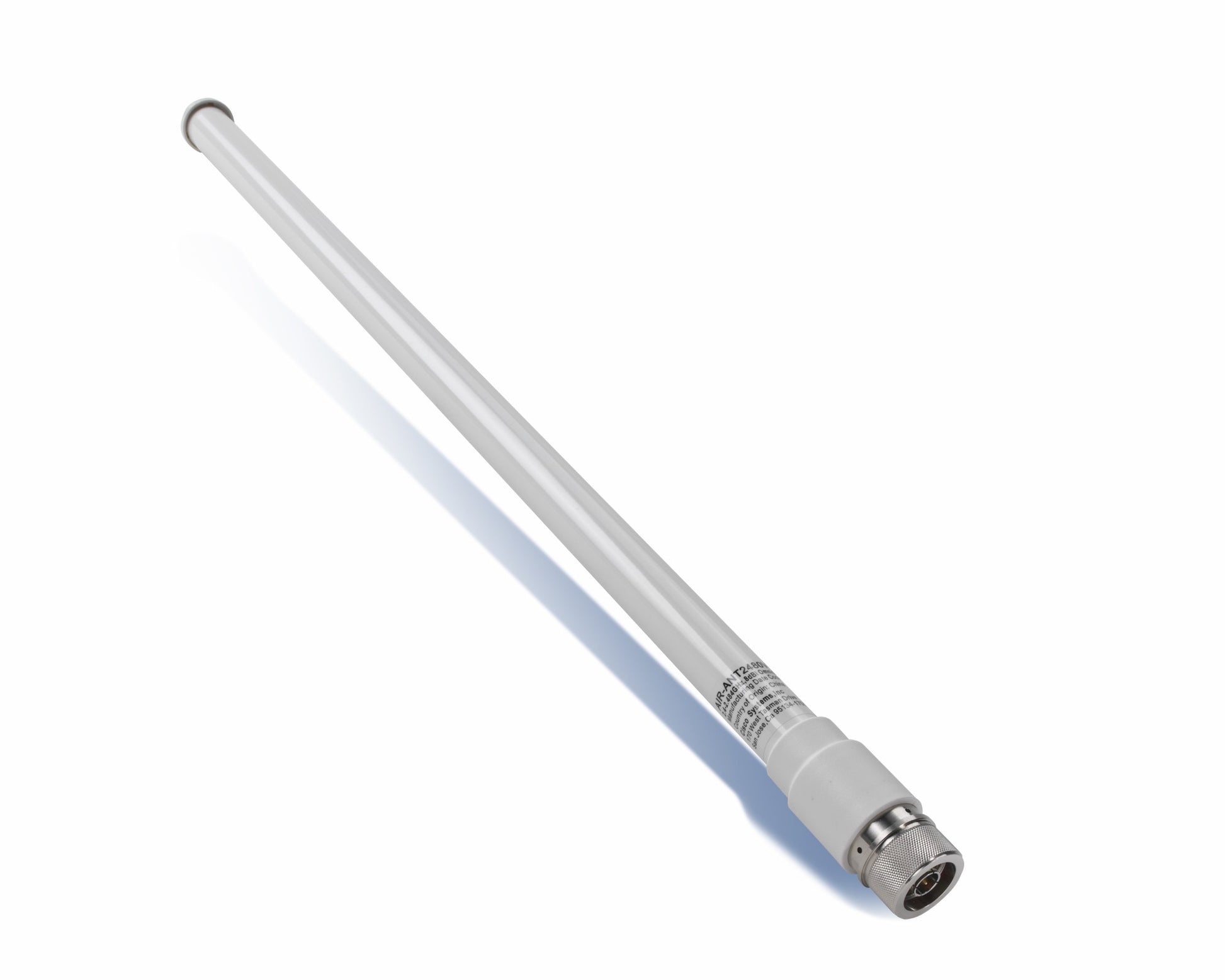

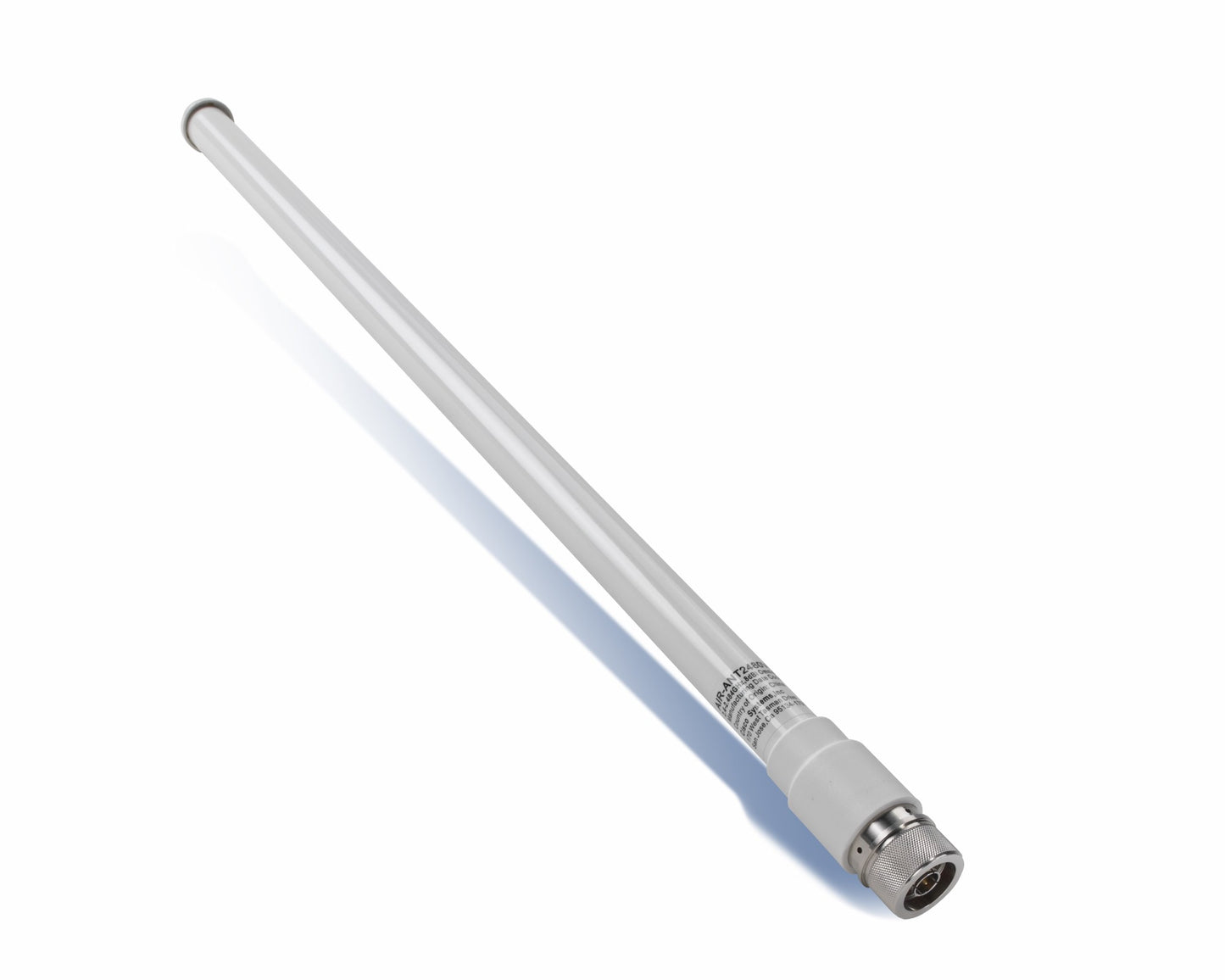

• Cisco AIR-ANT2480V-N 2.4GHz 8dBi Omni white telescopic antenna with N-type female connector
1 1

Cisco

Cisco AIR-ANT2480V-N | Aironet 2.4GHz 8 dBi Omni Antenna, N-Type

AIR-ANT2480V-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 8 dBi omnidirectional antenna is a 2.4 GHz vertically polarised co-linear array designed for outdoor use with Cisco Aironet 1500 Series lightweight outdoor mesh access points. It mounts directly to the access point's N-type antenna connector with no cable run, and suits outdoor 2.4 GHz coverage for mesh and outdoor wireless deployments.

The antenna covers 2400-2484 MHz with 8 dBi gain, linear vertical polarisation and a VSWR of less than 1.7:1. It is 49.5 cm (19.5 in) long with a 1.91 cm tube diameter. It operates from -30 to +70 C and is rated for 100 mph operational wind and 165 mph gusts. As a passive antenna it needs no power.

It is designed for Aironet 1500 Series mesh access points such as the 1522, and Cisco's antenna reference guide also lists it for Aironet 1560 and 1570 Series mesh access points. It can be used with any Cisco Aironet access point or bridge that has an N-connector.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for outdoor use
- Mounts directly to the access point's N-type antenna connector, with no cable attachment
- Usable with any Cisco Aironet radio device that has an N-connector
- Rated for 100 mph operational wind and 165 mph gusts
- Operates across a -30 to +70 C temperature range

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omni-directional (co-linear array)
- Frequency range: 2400 MHz - 2484 MHz
- Gain: 8 dBi
- Polarisation: Linear, vertical
- VSWR: < 1.7:1
- Connector: N-type (N-male)
- Length: 49.5 cm (19.5 in)
- Tube diameter: 1.91 cm (3/4 in)
- Operating temperature: -30 to +70 C (-22 to 158 F)
- Wind rating: 100 mph operational, 165 mph gusts
- Power: Passive, no power required

FAQs

Q: Which access points is this antenna designed for?
A: It is designed for Cisco Aironet 1500 Series lightweight outdoor mesh access points such as the 1522. It is also listed for Aironet 1560 and 1570 Series mesh access points.

Q: Does it need power or a licence?
A: No. It is a passive antenna, so it needs no power and no licence or subscription.

Q: Can it be used with other Cisco Aironet access points?
A: Yes. It can be used with any Cisco Aironet access point or bridge that has an N-connector.

Q: Does it connect with a cable?
A: No. It mounts directly to the access point's N-type antenna connector, with no cable attachment.
