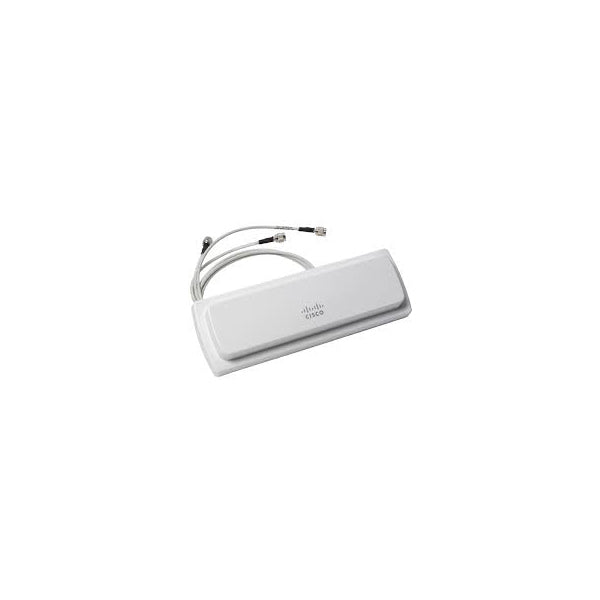

• Cisco AIR-ANT2430V-R 2.4GHz 3dBi omni antenna white router with black cables
1 1

Cisco

Cisco AIR-ANT2430V-R | Aironet 2.4GHz 3dBi Triple Omni Antenna, 3x RP-TNC

AIR-ANT2430V-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet AIR-ANT2430V-R is a 2.4 GHz indoor omnidirectional antenna for ceiling and wall mounting. It carries three radiating elements, each fed by its own coaxial cable, which suits Cisco Aironet access points with three-antenna MIMO radios. It is designed for indoor office environments.

The antenna delivers 3 dBi peak gain across 2402 to 2485 MHz, with linear polarisation, a VSWR below 2:1 and a nominal input impedance of 50 ohms. Each element is terminated with an RP-TNC plug on a 36 in. (91.4 cm) plenum-rated, UV-stable cable. The body measures 12.1 in. by 4.2 in. by 1.6 in. (30.7 cm by 10.6 cm by 4.0 cm). It is a passive antenna and needs no power supply.

It is intended for Cisco Aironet access points with RP-TNC antenna connectors. Keep wire mesh away from the antenna, because mesh spaced 1 to 1.5 in. from it acts as a harmonic reflector that blocks the 2.4 GHz signal.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Three radiating elements, each with its own coaxial cable
- Ceiling mounting on dropped ceilings, including recessed and channel T-rail types
- Wall mounting option for indoor installations
- Plenum-rated, UV-stable cabling
- RP-TNC connectors for Cisco Aironet access points
- Passive design with no power supply required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omnidirectional
- Operating frequency range: 2402 - 2485 MHz
- Peak gain: 3 dBi
- Radiating elements: 3 (triple omni)
- VSWR: < 2:1
- Nominal input impedance: 50 ohms
- Polarisation: Linear
- E-plane 3 dBi beamwidth: 60 degrees
- H-plane 3 dBi beamwidth: Omnidirectional
- Front-to-back ratio: 10 dB
- Connector type: 3 x RP-TNC plug
- Cable: 36 in. (91.4 cm), plenum rated, UV stable
- Length: 12.1 in. (30.7 cm)
- Width: 4.2 in. (10.6 cm)
- Height: 1.6 in. (4.0 cm)
- Operating temperature: 0 to 55 C (32 to 131 F)
- Environment: Indoor office only

FAQs

Q: Which access points does this antenna work with?
A: It works with Cisco Aironet access points that have RP-TNC antenna connectors and 2.4 GHz three-antenna (MIMO) radios.

Q: Does this antenna need power?
A: No. It is a passive antenna and requires no power supply.

Q: Can it be used outdoors?
A: No. It is designed for indoor office environments only, with an operating temperature of 0 to 55 C.

Q: Why do I need to avoid wire mesh near the antenna?
A: Wire mesh spaced 1 to 1.5 in. from the antenna acts as a harmonic reflector that blocks the 2.4 GHz signal, so keep mesh away from it.

Q: How is it mounted?
A: It mounts to dropped ceilings, including recessed and channel T-rail types, and can also be wall mounted.
