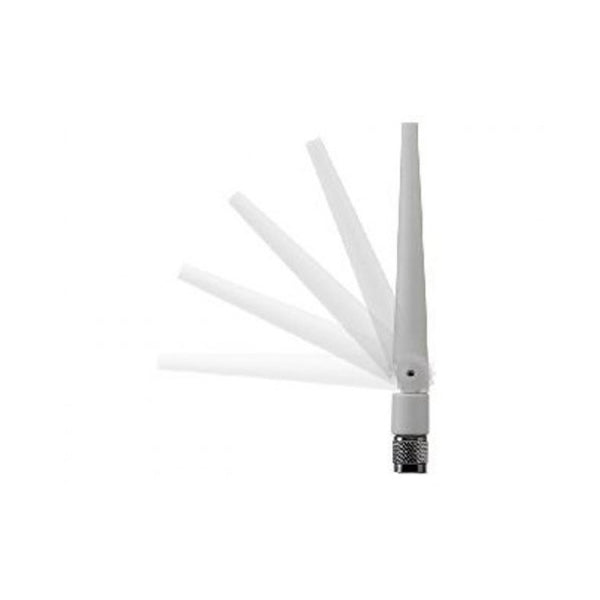

• Cisco AIR-ANT2422DW-R 2.4GHz 2.2dBi omni dipole antenna with white folding design
1 1

Cisco

Cisco AIR-ANT2422DW-R | Aironet 2.4GHz 2.2dBi Swivel Dipole Antenna, RP-TNC

AIR-ANT2422DW-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 2.4 GHz articulated dipole antenna is an indoor omnidirectional antenna for Cisco Aironet access points and client devices that use an RP-TNC antenna connector on a 2.4 GHz radio. It suits indoor Wi-Fi deployments where the antenna needs to be angled to suit the mounting position.

The white swivel dipole is rated at 2.2 dBi and covers 2402 to 2495 MHz with linear, vertical polarisation. It is omnidirectional in the H-plane with a 70 degree E-plane 3-dB beamwidth, a 50 Ohm nominal impedance and a 2:1 VSWR bandwidth of 2385 to 2515 MHz. It terminates in an RP-TNC plug (male) connector, is 5.5 in. (13 cm) long and weighs 1 oz.

It is a passive antenna, so no power is required, and it is rated for indoor use across an operating temperature range of 0 to 60 C.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Articulating (swivel) dipole design lets the antenna be angled for the best coverage
- Omnidirectional coverage in the H-plane
- RP-TNC connector for direct attachment to compatible Aironet access points
- Passive design requiring no power
- Rated for indoor environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole
- Operating frequency range: 2402-2495 MHz
- 2:1 VSWR bandwidth: 2385-2515 MHz
- Peak gain: 2.2 dBi
- Polarisation: Linear, vertical
- E-plane 3-dB beamwidth: 70 degrees
- H-plane 3-dB beamwidth: Omnidirectional
- Nominal input impedance: 50 Ohms
- Connector type: RP-TNC plug (male)
- Length: 5.5 in. (13 cm)
- Weight: 1 oz.
- Environment: Indoor
- Operating temperature range: 0 C to 60 C (32 F to 140 F)

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna and requires no power.

Q: What connector does it use?
A: It uses an RP-TNC plug (male) connector, so the access point or client device needs a matching RP-TNC antenna connector on its 2.4 GHz radio.

Q: Can it be used outdoors?
A: No. It is designed for indoor environments with an operating temperature range of 0 to 60 C.

Q: What polarisation does it have?
A: It has linear, vertical polarisation, with omnidirectional coverage in the H-plane.

Q: Which frequency band does it cover?
A: It covers the 2.4 GHz band, 2402 to 2495 MHz, so it is not suitable for 5 GHz radios.
