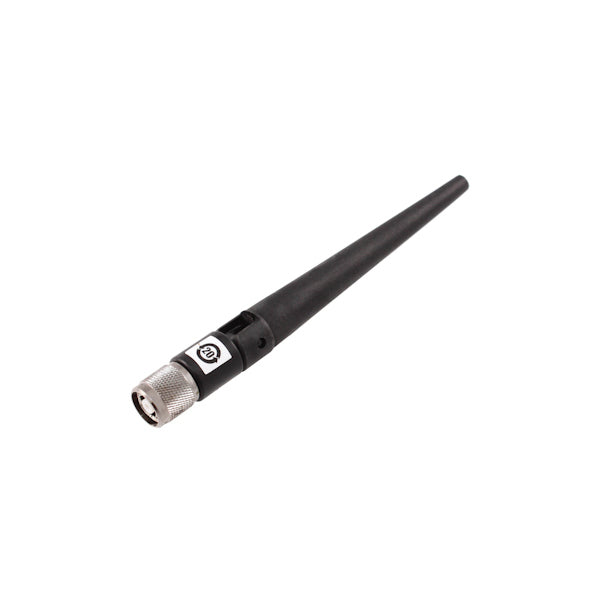

• Cisco AIR-ANT2422DB-R 2.4GHz 2.2dBi black omni dipole antenna with silver RP-TNC connector
1 1

Cisco

Cisco AIR-ANT2422DB-R | Aironet 2.4GHz 2.2dBi Swivel Dipole Antenna, Black, RP-TNC

AIR-ANT2422DB-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a black, indoor 2.4 GHz articulated dipole antenna from the Cisco Aironet antenna range. It gives omnidirectional coverage for Cisco Aironet access points and other radios that use RP-TNC antenna ports, making it a straightforward choice for replacing or upgrading an existing dipole in an indoor WLAN.

The antenna operates across the 2.4 GHz band (2402-2495 MHz) with a nominal gain of 2.2 dBi, linear vertical polarisation and 50 Ohm nominal impedance. The swivel design articulates up to 90 degrees so the radiating element can be oriented for the best coverage. It uses an RP-TNC plug connector and is finished in black. This SKU is the black swivel variant, distinct from the white AIR-ANT2422DW-R and gray AIR-ANT2422DG-R versions.

It suits any 2.4 GHz Cisco Aironet device with an RP-TNC antenna connector, such as the Aironet 1240, 1250 and 1260 series. It is a passive antenna and needs no power. It must not be connected to 5 GHz antenna connectors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Articulating swivel dipole design for flexible orientation
- Omnidirectional coverage in the horizontal plane
- RP-TNC connector fits Cisco Aironet access points and other radios with RP-TNC ports
- Suits any 2.4 GHz Cisco Aironet device with an RP-TNC antenna connector
- Passive design with no power or configuration needed
- Indoor black finish for offices, campuses and enterprise WLANs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole, articulated (swivel)
- Frequency range: 2402-2495 MHz
- Gain: 2.2 dBi nominal
- Polarisation: Linear, vertical
- Coverage pattern: Omnidirectional (H-plane)
- Impedance: 50 Ohm nominal
- Connector: RP-TNC plug
- Swivel range: Up to 90 degrees
- Environment: Indoor
- Colour: Black
- Power: Passive, no power required

FAQs

Q: Which devices is this antenna compatible with?
A: It suits any 2.4 GHz Cisco Aironet device with an RP-TNC antenna connector, such as the Aironet 1240, 1250 and 1260 series.

Q: Can I connect it to a 5 GHz antenna port?
A: No. This antenna is for 2.4 GHz connectors only and must not be used on 5 GHz antenna connectors.

Q: Does the antenna need power?
A: No. It is a passive antenna and requires no power.

Q: How does this SKU differ from AIR-ANT2422DW-R and AIR-ANT2422DG-R?
A: They are colour variants of the same 2.4 GHz 2.2 dBi RP-TNC swivel dipole. This SKU is the black version.

Q: Is this antenna suitable for outdoor use?
A: No. It is designed for indoor deployments.
