• Cisco AIR-ANT2410Y-R 2.4 GHz Yagi directional antenna, 10 dBi, outdoor mast mount
1 1

Cisco

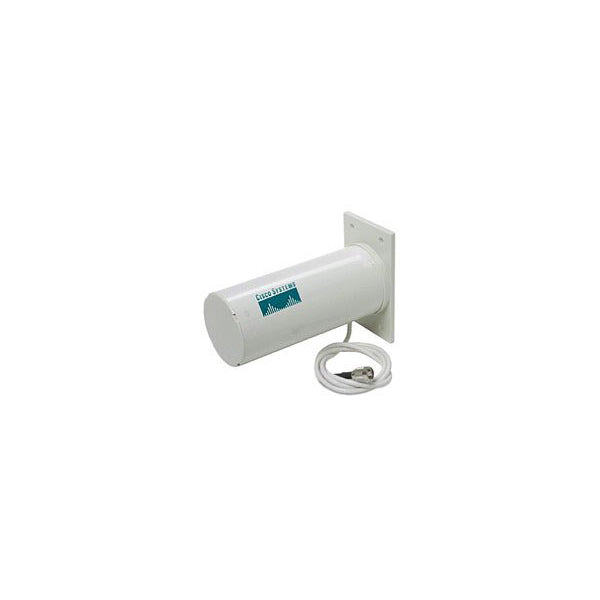

Cisco AIR-ANT2410Y-R | Aironet 2.4 GHz 10 dBi Yagi Antenna, RP-TNC, Mast Mount

AIR-ANT2410Y-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 2.4 GHz 10 dBi Yagi antenna is an enclosed 6-element directional antenna with an RP-TNC connector, designed for Cisco Aironet access points and bridges. It suits indoor or outdoor point-to-point and focused-coverage deployments, and mounts on a mast, pole or flat vertical surface. A 3 ft low-loss RG-58 cable pigtail is included for straightforward installation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Indoor and outdoor directional antenna for access points or bridges
- Enclosed 6-element Yagi design
- Mast or wall mounting options
- Compatible with 2.4 GHz Cisco Aironet radio devices that use an RP-TNC connector
- Includes 3 ft low-loss cable pigtail

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Yagi, directional
- Frequency range: 2400 - 2485 MHz
- Gain: 10 dBi
- Nominal input impedance: 50 Ohms
- VSWR: less than 1.5:1
- Polarization: linear, vertical or horizontal
- Horizontal 3 dB beamwidth: 55 degrees
- Front-to-back ratio: 23 dB
- Maximum side lobe level: less than -16 dB
- Connector: RP-TNC
- Cable: 3 ft (0.91 m) low-loss RG-58
- Dimensions: approx. 6.75 - 7.25 in. L x 3 in. diameter
- Weight: approx. 8 oz (0.23 kg)
- Mounting: mast or wall mount
- Wind rating: 125 MPH (201 km/h)

FAQs

Q: What frequency band does this antenna support?
A: It operates in the 2.4 GHz band, covering 2400 to 2485 MHz.

Q: What connector does the AIR-ANT2410Y-R use?
A: It uses an RP-TNC connector on a 3 ft (0.91 m) low-loss RG-58 cable, so it suits 2.4 GHz Cisco Aironet radios with an RP-TNC port.

Q: Can this antenna be used outdoors?
A: Yes. It is an enclosed Yagi that can be installed indoors or outdoors, and it is rated for winds up to 125 MPH (201 km/h).

Q: How can the antenna be mounted?
A: It can be mounted on a mast or pole, or on a flat vertical surface such as a wall.

Q: Is this an omnidirectional or directional antenna?
A: It is directional, with 10 dBi gain and a 55 degree horizontal beamwidth, making it suited to focused coverage and point-to-point links.
