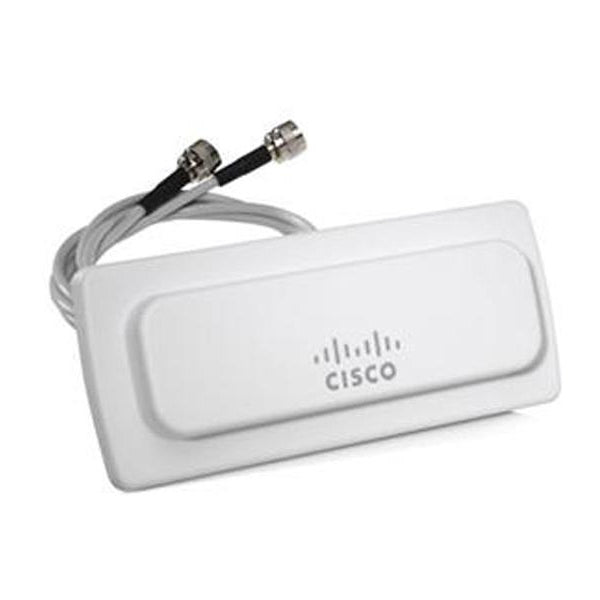

• Cisco AIR-ANT24020V-R 2.4 GHz omnidirectional diversity antenna with 2 dBi gain
1 1

Cisco

Cisco AIR-ANT24020V-R | Aironet 2.4 GHz 2 dBi Diversity Omni Antenna, RP-TNC

AIR-ANT24020V-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This indoor 2.4 GHz diversity omnidirectional antenna is designed for Cisco Aironet radios that use RP-TNC connectors. It offers 2 dBi gain with linear polarisation and two RP-TNC leads for a diversity design with two antenna elements. Supplied with hardware for ceiling mounting on standard dropped ceilings, with an additional kit for T-rail ceiling types, it suits indoor 2.4 GHz wireless deployments in offices and campus spaces.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for indoor use with any 2.4 GHz Cisco Aironet radio device that uses an RP-TNC connector
- Diversity design with two antenna elements and radiation patterns
- Ships with hardware for installation on a standard dropped ceiling
- Additional mounting hardware kit supplied for T-rail dropped ceilings (1/4 in or 1/2 in channel)
- Plenum rated, UV stable cable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Diversity omnidirectional
- Operating frequency range: 2400-2500 MHz
- Peak gain: 2.2 dBi (2 dBi nominal)
- VSWR: 1.5:1
- Polarisation: Linear
- Elevation plane 3 dB beamwidth: 97 degrees
- Azimuth plane: Omnidirectional
- Connector: 2 x RP-TNC leads
- Cable: 3 ft (91.4 cm), plenum rated, UV stable
- Dimensions: 6.9 in (17.5 cm) L x 3 in (7.6 cm) W x less than 1 in (2.5 cm) D
- Environment: Indoor
- Operating temperature: 0 to 55 degrees C (32 to 131 degrees F)

FAQs

Q: What connector type does this antenna use?
A: It has two RP-TNC leads, each 3 ft (91.4 cm) long, for connection to Cisco Aironet radios with RP-TNC connectors.

Q: Is this antenna suitable for outdoor use?
A: No. It is designed for indoor use only, with an operating temperature range of 0 to 55 degrees C.

Q: Which frequency band does it support?
A: It operates across 2400-2500 MHz, covering 2.4 GHz Wi-Fi bands. It is not intended for 5 GHz radios.

Q: How is the antenna mounted?
A: It ships with hardware for a standard dropped ceiling, and an additional kit is supplied for other dropped ceiling types such as T-rail with 1/4 in or 1/2 in channel.

Q: What does diversity mean for this antenna?
A: The antenna has two elements with separate radiation patterns, allowing the radio to use diversity reception across the two RP-TNC leads.
