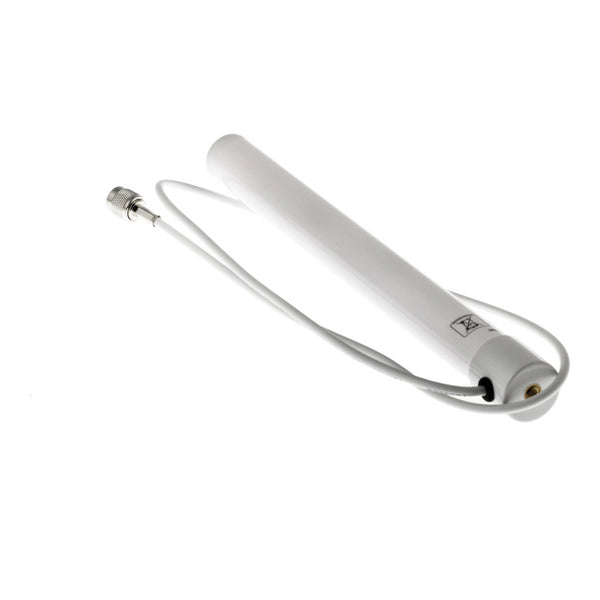

• Cisco AIR-ANT1728 2.4 GHz indoor ceiling mount antenna with screen
1 1

Cisco

Cisco AIR-ANT1728 | Aironet 2.4 GHz 5.2 dBi Omni Antenna, RP-TNC

AIR-ANT1728

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco Aironet 2.4 GHz omnidirectional dipole antenna delivers 5.2 dBi of gain with vertical polarization for indoor 802.11b/g/n wireless LAN deployments. It mounts on a suspended ceiling track and connects through an RP-TNC connector with a 3 ft plenum-rated RG-58 cable. It suits mid-range indoor coverage with Aironet access points and other 2.4 GHz Aironet radios that use an RP-TNC connector.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for 2.4 GHz WLAN applications (802.11b/g/n)
- Omnidirectional horizontal coverage for indoor mid-range use
- Mounts on a suspended ceiling track (13/16 in. to 1 1/4 in. wide)
- Compatible with Cisco Aironet access points and any 2.4 GHz Aironet radio with an RP-TNC connector
- Plenum-rated cable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole
- Operating frequency range: 2.4 to 2.483 GHz
- Gain: 5.2 dBi
- Polarization: Vertical
- VSWR: less than 2:1 (1.5:1 nominal)
- E-Plane (3 dB bandwidth): 40 degrees
- H-Plane (3 dB bandwidth): Omnidirectional
- Connector: RP-TNC
- Cable: 3 ft (0.91 m) plenum-rated RG-58
- Dimensions (H x W): 11.5 in. x 1.25 in. (29.2 cm x 3.2 cm)
- Weight: 4.6 oz (131 g)

FAQs

Q: Which frequency band does the AIR-ANT1728 support?
A: It operates in the 2.4 to 2.483 GHz range and is designed for 802.11b/g/n 2.4 GHz WLAN applications. It does not cover the 5 GHz band.

Q: What connector does this antenna use?
A: It uses an RP-TNC connector on a 3 ft (0.91 m) plenum-rated RG-58 cable, matching Aironet access points and 2.4 GHz Aironet radios with an RP-TNC connector.

Q: How is the antenna mounted?
A: It is designed to hang from a suspended ceiling track, suitable for track widths from 13/16 in. to 1 1/4 in.

Q: What is the coverage pattern of this antenna?
A: It is an omnidirectional dipole with 5.2 dBi gain and vertical polarization. The horizontal (H-Plane) pattern is omnidirectional and the E-Plane 3 dB bandwidth is 40 degrees, giving broad horizontal coverage for indoor mid-range use.

Q: Is this antenna suitable for outdoor use?
A: No. The AIR-ANT1728 is designed for indoor ceiling mount deployments.
