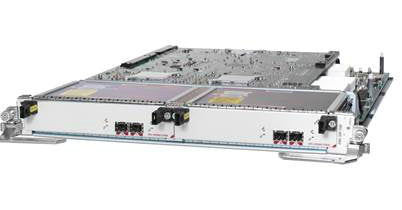

• Silver Cisco A9K-SIP-700 router with multiple ports and sleek design
1 1

Cisco

Cisco A9K-SIP-700 | ASR 9000 SPA Interface Processor 700 Line Card, OIR

A9K-SIP-700

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The A9K-SIP-700 is a SPA Interface Processor line card for the Cisco ASR 9000 Series Aggregation Services Routers. It hosts shared port adapters (SPAs) to add TDM, Frame Relay, ATM and Packet over SONET/SDH interfaces to the chassis, from T1/E1 up to OC192/STM64. It suits service providers running multiservice edge, Ethernet multiservice edge and mobile backhaul networks, including TDM migration, IP RAN convergence and business VPN services with SLA enforcement.

Each card occupies one line card slot and takes up to 4 single-height SPAs, up to 2 double-height SPAs, or a combination of the two. Maximum power draw is 375 W, supplied from the chassis backplane, and the card can be deployed in the ASR 9010 and ASR 9006 without power-zone restrictions. Online insertion and removal (OIR) lets you add or replace the card without affecting system traffic. This is the standard SIP-700, not the spare part A9K-SIP-700=.

The SIP-700 works in all ASR 9000 Series chassis and requires Cisco IOS XR Software Release 3.9 or later. It handles multiple SPA types in a single version and needs no separate software licence. It integrates with the ASR 9000 synchronisation circuitry for transport-class network timing.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco I-Flex design combining SPAs and SIPs, with SPAs interchangeable across Cisco routing platforms
- Dense serial channelisation from DS0 to OC48, with Packet over SONET/SDH up to OC192/STM64
- Single line card slot usage, deployable in the ASR 9010 and 9006 without power-zone restrictions
- Integrates with ASR 9000 synchronisation circuitry for mobile backhaul and TDM migration timing
- Hierarchical QoS with high queue density and Layer 2 and Layer 3 service scale
- Carrier-class resiliency with OIR, MR-APS, IC-SSO for PPP and BFD
- Ethernet and TDM interfaces can coexist in the same chassis for IP RAN convergence

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis compatibility: All Cisco ASR 9000 Series chassis
- Software compatibility: Cisco IOS XR Software Release 3.9 or later
- Slot usage: 1 line card slot
- SPA density: Up to 4 single-height SPAs, or up to 2 double-height SPAs, or a combination of the two
- Interface types: CHT1/E1, CT3/DS0, T3/E3, OC3/STM1, ChOC3/ChSTM1, OC12/STM4, ChOC12/ChSTM4, OC48/STM16, ChOC48/ChSTM16, OC192/STM64
- Maximum power: 375 W
- Dimensions (H x W x D): 14 x 1.72 x 20.5 in
- Weight: 14 lb
- Operating temperature (nominal): 5 to 40 C
- Operating temperature (short-term): -5 to 55 C
- Operating humidity (nominal): 10 to 85% RH
- Storage temperature: -40 to 70 C
- Storage humidity: 5 to 95% RH, not to exceed 0.024 kg water per kg of dry air
- Operating altitude: -60 to 4000 m
- NEBS: Designed to meet SR-3580 Level 3, GR-1089-CORE and GR-63-CORE
- EMC: FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 Class A, VCCI Class A, BSMI Class A
- Management: Cisco IOS XR modular CLI, SNMP, native XML interfaces, Cisco Active Network Abstraction (ANA)

FAQs

Q: Does the A9K-SIP-700 need a software licence?
A: No software licence is required for the SIP-700. The chassis must run Cisco IOS XR Software Release 3.9 or later.

Q: Which chassis does it work in?
A: It works in all Cisco ASR 9000 Series chassis. It can be deployed in the ASR 9010 and ASR 9006 without power-zone restrictions.

Q: How many SPAs can it host?
A: It hosts up to 4 single-height SPAs, up to 2 double-height SPAs, or a combination of the two, using one line card slot.

Q: How much power does it draw?
A: Maximum draw is 375 W, supplied from the ASR 9000 chassis backplane.

Q: Is this the spare part?
A: No. A9K-SIP-700 is the standard part number. The spare version is listed separately as A9K-SIP-700=.
