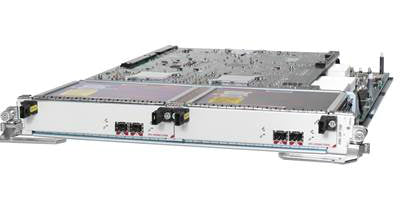

• Cisco A9K-SIP-700-8G silver router with 8x1G ports and sleek modular design
1 1

Cisco

Cisco A9K-SIP-700-8G | ASR 9000 SIP-700 SPA Line Card, 8GB Memory

A9K-SIP-700-8G

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 9000 SIP-700 is a 20G SPA Interface Processor line card for ASR 9000 Series aggregation routers. It hosts Shared Port Adapters for legacy SONET/SDH, T1/E1, T3/E3 and ATM interfaces, making it a practical fit for service provider networks that still aggregate TDM, POS and ATM services alongside newer Ethernet links.

This A9K-SIP-700-8G variant carries 8 GB of memory, double the 4 GB fitted to the base A9K-SIP-700. The card occupies one line card slot and provides two SPA subslots. It accepts up to 2 single-width double-height SPAs, up to 4 single-width single-height SPAs, or up to 2 double-width single-height SPAs. Double-width double-height SPAs are not supported. A single status LED shows whether the card is powered, loading or active.

The SIP-700 is supported in all ASR 9000 Series chassis and requires Cisco IOS XR 4.3.1 or later on 32-bit images. It is not supported on IOS XR 64-bit images. It works with the OC-3, OC-12, OC-48 and OC-192 POS SPAs, channelized T3/E3 and T1/E1 SPAs, and ATM and CEoP SPAs listed in the Cisco hardware installation guide.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hosts channelized OC-12/DS0, OC-48/STM-16, OC-192/STM-64 POS/RPR, OC-3/STM-1 POS, T3/E3 and T1/E1 SPAs
- Supports ATM and CEoP SPAs, including OC-3 ATM and channelized T3/E3 ATM CEoP
- Flexible SPA mix with combinations of SPA heights and widths
- Supported in all ASR 9000 Series chassis
- 8 GB memory, larger than the 4 GB on the base A9K-SIP-700
- Suited to legacy TDM, SONET/SDH, POS and ATM service aggregation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: 20G SPA Interface Processor (line card)
- Memory: 8 GB
- SPA subslots: 2 (0 left, 1 right)
- Maximum SPAs: 2 single-width double-height, or 4 single-width single-height, or 2 double-width single-height
- Double-width double-height SPAs: Not supported
- Slot requirement: One line card slot
- Supported platforms: All Cisco ASR 9000 Series routers
- Minimum Cisco IOS XR release: 4.3.1
- Minimum hardware revision: 1.0
- 64-bit IOS XR: Not supported
- Front panel indicator: One status LED (amber = powered and IOS XR loading, green = SIP active, off = not installed correctly or not powered)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -20 to 65 C (-4 to 149 F)
- Relative humidity: 10 to 90 percent, noncondensing
- Shipping weight: 10 kg (22 lbs)

FAQs

Q: How does the A9K-SIP-700-8G differ from the A9K-SIP-700?
A: The A9K-SIP-700-8G carries 8 GB of memory, while the base A9K-SIP-700 has 4 GB. Both are 20G SPA Interface Processors with the same SPA subslot layout.

Q: Which ASR 9000 routers and software does it support?
A: It is supported on all Cisco ASR 9000 Series routers and requires Cisco IOS XR 4.3.1 or later. It is not supported on IOS XR 64-bit images.

Q: Which SPAs can it host?
A: It hosts OC-3, OC-12, OC-48 and OC-192 POS SPAs, channelized T3/E3 and T1/E1 SPAs, and ATM and CEoP SPAs from the SIP-700 SPA list in the Cisco hardware installation guide.

Q: How many SPAs can I fit on one card?
A: Up to 2 single-width double-height SPAs, up to 4 single-width single-height SPAs, or up to 2 double-width single-height SPAs. Double-width double-height SPAs are not supported.

Q: Does the 2-Port Channelized T3/E3 ATM CEoP SPA work with ATM on this card?
A: No. The SPA-2CHT3-CE-ATM does not support ATM on the SIP-700.
