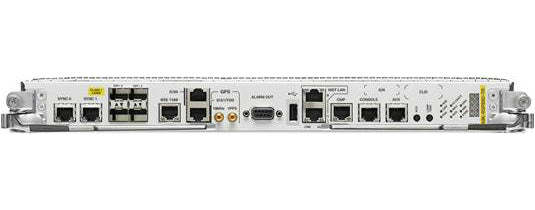

• Cisco A9K-RSP880-TR ASR 9000 router with multiple ports
1 1

Cisco

Cisco A9K-RSP880-TR | ASR 9000 RSP880 Route Switch Processor, TR, 16GB DRAM

A9K-RSP880-TR

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9000 RSP880 is the route switch processor for ASR 9904, ASR 9006 and ASR 9010 aggregation routers. It combines the system processor, an integrated switch fabric and centralised timing in a single slot. This -TR edition is the Packet Transport variant, aimed at aggregation and access networks, carrier Ethernet, L2VPN and L3VPN, IPTV, CDN and mobile backhaul transport, running Cisco IOS XR.

The RSP880-TR has an 8-core 1.9 GHz processor and 16 GB of ECC-protected DRAM. Storage is two 32 GB SSDs plus an 8 GB embedded USB, and a front-panel USB 2.0 Type A port supports software image loading and recovery. Fabric capacity is 880 Gbps non-redundant or 440 Gbps in a redundant pair. Two 100/1000BASE-T management ports, a console port and an auxiliary port handle management. Timing options include IEEE 1588, GPS (ToD, 1-pps, 10 MHz) and BITS/DTI. It supports 1+1 RSP redundancy, and both RSPs in a pair must be the same type.

The RSP880-TR works with 2nd, 3rd and 5th generation ASR 9000 line cards, including the A9K-8X100GE, A9K-4X100GE, A9K-24X10GE-1G, A9K-MOD400 and A9K-MOD200 families, and requires IOS XR 5.3.0 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated, distributed, multistage low-latency nonblocking switch fabric
- Distributed forwarding-plane architecture with a memoryless fabric
- Virtual output queuing and a centralised arbiter for zero-packet-loss switchover
- Centralised network synchronisation using PTPv2/IEEE 1588, GPS, BITS and DTI
- SSDs for core dumps, which helps reduce mean time to repair
- Front-panel USB 2.0 port for quick software image loading and recovery
- Runs Cisco IOS XR with SMU and FPD upgrade support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Feature set: Packet Transport (TR)
- Memory: 16 GB ECC-protected DRAM
- Processor: 8 cores, 1.9 GHz
- Solid-state disk: Two 32 GB SSDs
- Embedded USB: 8 GB eUSB
- External USB: USB 2.0 Type A receptacle
- Fabric capacity: 880 Gbps non-redundant, 440 Gbps redundant (ASR 9904, 9010, 9006)
- Fabric control: Up to seven ASR 9000 switch fabric cards
- Management ports: Two 100/1000BASE-T (RJ-45), one console, one auxiliary
- Timing: BITS and SSU/DTI clock source connections, IEEE 1588 via 10/100 RJ-45 port
- GPS: ToD (RS-422 and RS-232), 1-pps, 10 MHz in/out
- Alarms: Critical, major and minor alarm outputs
- Redundancy: 1+1 RSP, same type required
- Slot usage: 1 slot per RSP, 2 slots for a redundant pair
- Dimensions (H x W x D): 4.60 x 42.85 x 62.89 cm
- Weight: 8.07 kg
- Operating temperature: 0 to 40 C (short-term -5 to 55 C)
- Storage temperature: -40 to 70 C
- Operating humidity: 10 to 85% nominal, 5 to 90% short-term
- Operating altitude: -60 to 4000 m
- Compliance: NEBS Level 3, ETSI, FCC/ICES/AS/NZS Class A, UL/CSA/IEC/EN 60950-1
- Software: Cisco IOS XR 5.3.0 or later

FAQs

Q: Which ASR 9000 chassis does this RSP fit?
A: The A9K-RSP880-TR fits ASR 9904, ASR 9006 and ASR 9010 chassis. The ASR 9910 and 9906 need the RSP880-LT variant instead.

Q: Can I pair it with a different RSP type for redundancy?
A: No. 1+1 redundancy requires both RSPs in the pair to be the same type, so a second A9K-RSP880-TR is needed for a redundant pair.

Q: Which line cards and software does it work with?
A: It supports 2nd, 3rd and 5th generation ASR 9000 line cards, including the A9K-8X100GE, A9K-4X100GE, A9K-24X10GE-1G, A9K-MOD400 and A9K-MOD200 families. It requires Cisco IOS XR 5.3.0 or later.

Q: Does it need a separate licence?
A: No separate licence is stated for the hardware. Software features are delivered through Cisco IOS XR.

Q: How does the TR variant differ from the SE variant?
A: The -TR is the Packet Transport variant with 16 GB of DRAM, optimised for transport line cards. The -SE variant is aimed at high-scale service edge deployments.
