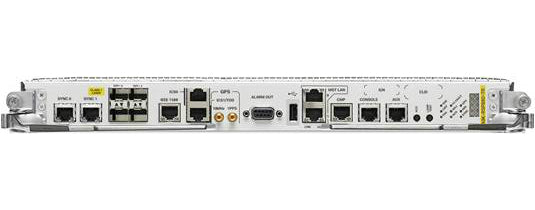

Cisco A9K-RSP880-TR-2P | ASR 9000 RSP880 Route Switch Processor, TR, 16GB, 2-Pack
SKU:A9K-RSP880-TR-2P
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ASR 9000 RSP880 is the route switch processor for the Cisco ASR 9000 Series, combining the control plane, an integrated switch fabric and centralised network timing in one card. This Packet Transport (TR) model carries 16 GB of ECC DRAM and runs Cisco IOS XR. It suits carrier Ethernet edge, aggregation and transport networks, including L2VPN and L3VPN business services, IPTV, CDN, mobile backhaul, RAN aggregation and data centre interconnect.
The RSP880 uses an 8-core 1.9 GHz processor with two 32 GB SSDs and an 8 GB eUSB. Fabric capacity is 880 Gbps non-redundant or 440 Gbps in a redundant pair on the ASR 9904, 9010 and 9006. Management connectivity is two 100/1000BASE-T ports, one console and one auxiliary port, with timing inputs covering IEEE 1588 PTP, BITS, ToD, 1-pps and 10 MHz. This listing is a 2-pack, suited to a 1+1 RSP redundant configuration in which both processors must be the same kind.
The RSP880 fits ASR 9904, 9006 and 9010 chassis and supports 5th, 3rd and 2nd generation line cards, including A9K-8HG-FLEX, A9K-4HG-FLEX, A99-12X100GE, A9K-8X100GE, A9K-4X100GE and A9K-48X10GE-1G. The ASR 9910 and 9906 need the RSP880-LT or A99-RSP instead.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Distributed forwarding-plane architecture so line cards forward independently
- Memoryless, non-blocking, low-latency switch fabric
- Virtual output queuing with a centralised arbiter for zero-loss switchover
- Centralised network timing with PTP/IEEE 1588, BITS, DTI, ToD, 1-pps and 10 MHz
- SSDs for core dumps, helping reduce mean time to repair
- Front-panel USB 2.0 port for quick software image loading and recovery
- Cisco IOS XR with process modularity, SMUs and FPD upgrades
- Mixes service-edge and transport line cards in the same chassis
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Variant: Packet Transport (TR), 2-pack
- Memory: 16 GB ECC-protected DRAM
- Processor: 8 cores, 1.9 GHz
- Storage: Two 32 GB SSDs plus 8 GB eUSB
- External USB: USB 2.0 Type A receptacle
- Fabric capacity: 880 Gbps non-redundant, 440 Gbps redundant (ASR 9904, 9010, 9006)
- Management ports: 2x 100/1000BASE-T (RJ-45), 1 console, 1 auxiliary
- Timing: IEEE 1588 PTP, BITS, SSU DTI, ToD, 1-pps and 10 MHz
- Alarm outputs: Critical, major and minor
- Redundancy: 1+1 RSP redundancy, both RSPs must be the same kind
- Slot occupancy: 1 slot per RSP, 2 slots in a redundant configuration
- Supported chassis: ASR 9904, 9006 and 9010
- Dimensions (H x W x D): 4.60 x 42.85 x 62.89 cm
- Weight: 8.07 kg
- Operating temperature: 0 to 40 C nominal, -5 to 55 C short-term
- Storage temperature: -40 to 70 C
- Operating humidity: 10 to 85% nominal, 5 to 90% short-term
- Operating altitude: -60 to 4000 m
- Compliance: NEBS Level 3, ETSI, FCC Class A, CISPR 22 Class A, AS/NZS 3548 Class A, UL/CSA/IEC/EN 60950-1
FAQs
Q: Which ASR 9000 chassis does the RSP880 TR support?
A: It supports the ASR 9904, 9006 and 9010 chassis. The ASR 9910 and 9906 require the RSP880-LT or A99-RSP instead.
Q: Can I mix this RSP with a different type in a redundant pair?
A: No. In a 1+1 redundant configuration both RSPs must be the same kind, so the 2-pack gives you a matched pair.
Q: What software does it run?
A: It runs Cisco IOS XR. Licensing is handled at the software level for the router, so confirm the feature licences you need for your deployment.
Q: Which line cards work with the RSP880 TR?
A: It supports 5th, 3rd and 2nd generation line cards, including A9K-8HG-FLEX, A9K-4HG-FLEX, A99-12X100GE, A9K-8X100GE, A9K-4X100GE, A9K-48X10GE-1G and the A9K-MOD400, MOD200, MOD160 and MOD80 modular cards.
Q: How much fabric capacity does it provide?
A: Fabric capacity is 880 Gbps non-redundant or 440 Gbps when running as a redundant pair on the ASR 9904, 9010 and 9006.
