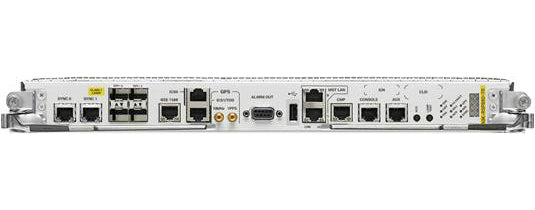

• Cisco A9K-RSP880-SE router with multiple ports and 880G/slot fabric
1 1

Cisco

Cisco A9K-RSP880-SE | ASR 9000 RSP880 Service Edge Route Switch Processor, 32GB

A9K-RSP880-SE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 9000 RSP880 Service Edge is a route switch processor with an integrated switch fabric for the ASR 9904, ASR 9006 and ASR 9010 routers. The Service Edge variant carries 32 GB of DRAM to support higher multi-dimensional scale, which suits service-provider access, aggregation and multiservice edge deployments running L2VPN, L3VPN, IPTV, CDN, mobile backhaul and business VPN services.

The RSP880 provides 880 Gbps of non-redundant fabric capacity, or 440 Gbps per RSP in a redundant configuration, on the ASR 9904, 9010 and 9006. It has an 8-core 1.9 GHz processor, two 32 GB SSDs and an 8 GB embedded USB device. Two 100/1000BASE-T RJ-45 management ports, a console port and an auxiliary port handle management access. Timing inputs cover BITS, DTI, IEEE 1588 and GPS. It runs Cisco IOS XR with no separate licence for the RSP hardware itself.

It works with the ASR 9904, ASR 9006 and ASR 9010 chassis and supports 2nd, 3rd and 5th generation ASR 9000 line cards. In a 1+1 redundant pair, both RSPs must be the same type.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated distributed, multistage, low-latency non-blocking switch fabric
- Designed for high 1G, 10G and 100G port densities
- Virtual output queuing and a centralised arbiter for zero-packet-loss switchover
- Memoryless switch fabric for transparent non-blocking forwarding
- BITS, DTI, IEEE 1588 and GPS timing inputs for network synchronisation
- Dual SSDs for core dump storage, reducing mean time to repair
- Front-panel USB 2.0 for quick image loading and recovery
- Runs Cisco IOS XR with SMU and FPD upgrade support
- Common sparing across ASR 9010, 9006 and 9904 chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Route Switch Processor with integrated switch fabric
- Variant: RSP880, Service Edge, 32GB DRAM
- Supported chassis: ASR 9904, ASR 9006, ASR 9010
- Fabric capacity (non-redundant): 880 Gbps
- Fabric capacity (redundant): 440 Gbps
- Processor: 8 cores, 1.9 GHz
- Memory: 32 GB ECC-protected DRAM
- Storage: 2 x 32 GB SSD, 8 GB embedded USB
- USB port: USB 2.0 Type A
- Management ports: 2 x 100/1000BASE-T RJ-45, 1 console, 1 auxiliary
- Timing: BITS and SSU DTI, IEEE 1588 via RJ-45, GPS ToD, 1-pps and 10 MHz
- Alarm outputs: Critical, major and minor
- Redundancy: 1+1 RSP redundancy, both RSPs must be the same type
- Slot usage: 1 slot per RSP, 2 slots in a redundant configuration
- Dimensions (H x W x D): 4.60 x 42.85 x 62.89 cm
- Weight: 8.07 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Operating humidity: 10 to 85% RH, non-condensing
- Compliance: NEBS Level 3, ETSI, FCC Class A, CISPR 22 Class A, AS/NZS 3548 Class A, UL/CSA/IEC/EN 60950-1

FAQs

Q: Does the RSP880 need a separate licence?
A: No separate licence is required for the RSP hardware. It runs Cisco IOS XR on the ASR 9000 chassis, and feature licensing is handled at the system and software level.

Q: Which chassis does it fit?
A: The A9K-RSP880-SE is supported in the ASR 9904, ASR 9006 and ASR 9010 chassis.

Q: Can two RSPs be run together for redundancy?
A: Yes. It supports 1+1 RSP redundancy, and both RSPs in the pair must be the same type. A redundant pair uses 2 slots.

Q: What does the Service Edge variant add?
A: The Service Edge variant has 32 GB of DRAM, which supports higher multi-dimensional scale for multiservice edge deployments.

Q: Which line cards does it work with?
A: It supports 2nd, 3rd and 5th generation ASR 9000 line cards.
