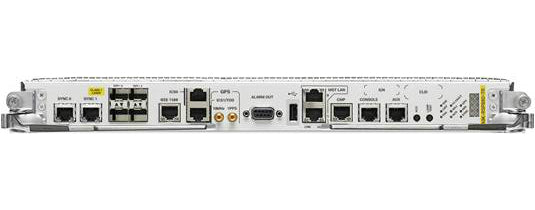

• Cisco A9K-RSP880-SE-2P ASR 9000 router with multiple ports
1 1

Cisco

Cisco A9K-RSP880-SE-2P | ASR 9000 RSP880 Route Switch Processor, SE 32G, 2-Pack

A9K-RSP880-SE-2P

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9000 RSP880 is the system processor and integrated switch fabric card for the ASR 9904, ASR 9006 and ASR 9010 routers. This Service Edge (SE) variant carries 32 GB of ECC DRAM and is optimised for high multi-dimensional scale, which suits multiservice edge deployments in Carrier Ethernet, L2VPN and L3VPN business services, IPTV, CDN and mobile backhaul.

This SKU is a 2-pack, giving two Service Edge RSPs for a 1+1 redundant pair. Fabric capacity is 880 Gbps per slot non-redundant and 440 Gbps in a redundant configuration. Each card has two 32 GB SSDs, 8 GB of embedded USB, two 100/1000BASE-T management ports, a console port and an auxiliary port. Built-in timing supports IEEE 1588, BITS, DTI and GPS inputs. The RSP runs Cisco IOS XR Software 5.3.0 or later, with feature licensing handled at the chassis and software level.

Both RSPs in a redundant pair must be the same type, so Service Edge and Transport Optimised cards cannot be mixed. The RSP880 works with 5th, 3rd and 2nd generation ASR 9000 line cards. The ASR 9910 and ASR 9906 chassis need the RSP880-LT or A99-RSP instead.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated switch fabric with a distributed, multistage, low-latency, non-blocking architecture
- Memoryless switch fabric with virtual output queuing and a centralised arbiter for transparent switchover with zero packet loss
- Distributed forwarding plane, so line cards forward independently
- Built-in network timing with IEEE 1588 PTPv2, BITS, DTI and GPS
- Service Edge design for high scale in VRFs, IPv4/IPv6 routes, BFD sessions and BGP NSR
- Cisco IOS XR support for SMU and FPD upgrades, NSF/NSR, MPLS TE-FRR, MC-LAG and H-QoS
- 1+1 RSP redundancy with no single point of failure

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Route Switch Processor 880, Service Edge (SE)
- Bundle: 2-pack (HA pair)
- Memory: 32 GB ECC-protected DRAM
- Storage: 2 x 32 GB SSD, 8 GB embedded USB, USB 2.0 Type A receptacle
- Fabric capacity: 880 Gbps non-redundant, 440 Gbps redundant (ASR 9904, 9010, 9006)
- Management: 2 x 100/1000BASE-T (RJ-45), 1 console port, 1 auxiliary port
- Timing: IEEE 1588, BITS, DTI, GPS (ToD, 1PPS, 10 MHz)
- Alarms: critical, major and minor alarm outputs
- Supported chassis: ASR 9904, ASR 9006, ASR 9010
- Redundancy: 1+1 RSP redundancy, both RSPs of the same type
- Slot usage: 1 slot per RSP, 2 slots for a redundant pair
- Dimensions (H x W x D): 4.60 x 42.85 x 62.89 cm
- Weight: 8.07 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 10 to 85% non-condensing (operating)
- Minimum software: Cisco IOS XR 5.3.0
- Compliance: NEBS Level 3, FCC Class A, AS/NZS 3548 Class A

FAQs

Q: Does this RSP need a separate licence?
A: No separate licence is stated for the RSP hardware. It runs Cisco IOS XR Software 5.3.0 or later, and feature licensing is handled at the chassis and software level.

Q: Which chassis does it fit?
A: The RSP880 fits the ASR 9904, ASR 9006 and ASR 9010. The ASR 9910 and ASR 9906 chassis need the RSP880-LT or A99-RSP instead.

Q: Can I mix Service Edge and Transport Optimised RSPs in one chassis?
A: No. Both RSPs in a redundant pair must be the same type, so this Service Edge pair cannot be paired with a Transport Optimised card.

Q: How is the RSP powered?
A: It is powered from the ASR 9000 chassis backplane through the shared power modules, so it needs no separate power connection.

Q: Which line cards does it work with?
A: It supports 5th, 3rd and 2nd generation ASR 9000 line cards, for example the A9K-8HG-FLEX-SE, A9K-8X100GE-SE, A9K-24X10GE-SE and A9K-MOD400-SE.
