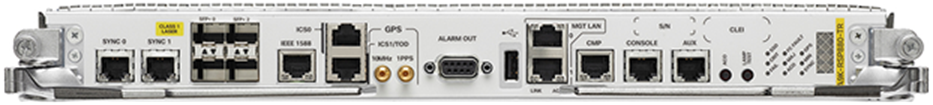

• Cisco A9K-RSP880-RL-TR router with multiple ports and black panel
1 1

Cisco

Cisco A9K-RSP880-RL-TR | ASR 9000 RSP880 Route Switch Processor, Transport, 440G/Slot

A9K-RSP880-RL-TR

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9000 RSP880 Transport (TR) is the Route Switch Processor for the Cisco ASR 9000 Series. It acts as the system processor and switch-fabric card for the ASR 9904, ASR 9006 and ASR 9010 chassis and runs Cisco IOS XR. This RL-TR variant carries the Transport feature set and is aimed at packet-transport roles in carrier Ethernet, Layer 2 and Layer 3 VPN, mobile backhaul and RAN aggregation, Data Center Interconnect, IPTV and CDN deployments.

This SKU is rate-limited to 440G per slot of fabric capacity, which matches the redundant (1+1) fabric capacity of the standard RSP880. It has an 8-core 1.9 GHz processor, 16 GB of ECC-protected DRAM, two 32 GB SSDs and 8 GB of embedded USB. Management connectivity is provided by two 100/1000BASE-T ports, one console port and one auxiliary port, with a front-panel USB 2.0 Type A port. Timing inputs include BITS, SSU DTI, IEEE 1588 PTP, ToD, 1-pps and 10 MHz. Features are enabled through IOS XR packages and licences.

The card works with 5th, 3rd and 2nd generation ASR 9000 line cards such as the A9K-8X100GE, A9K-4X100GE, A9K-24X10GE, A9K-MOD400 and A9K-MOD200. It supports 1+1 RSP redundancy, provided both RSPs are the same type, and requires Cisco IOS XR 5.3.0 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated distributed, multistage, low-latency non-blocking switch fabric
- Virtual output queuing and centralised arbiter for zero-loss switchover
- Memoryless switch fabric
- Supports 5th, 3rd and 2nd generation ASR 9000 line cards
- Network timing with centralised BITS, PTP/IEEE 1588-2008 and bidirectional ToD with 10 MHz and 1 pps
- Front-panel LEDs for active/standby status, power management and SSD activity
- Runs Cisco IOS XR with process modularity, SMU and FPD upgrades
- Supports L2VPN, L3VPN, MPLS, H-QoS, MC-LAG, NSF/NSR and Carrier Ethernet services

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product family: Cisco ASR 9000 Route Switch Processor 880 (RSP880)
- Feature set: Packet Transport (TR)
- Fabric capacity: rate-limited to 440G per slot (RL variant)
- Compatible chassis: ASR 9904, ASR 9006, ASR 9010
- Processor: 8 cores, 1.9 GHz
- Memory: 16 GB ECC-protected DRAM
- Storage: two 32 GB SSDs
- Embedded USB: 8 GB eUSB
- External USB: USB 2.0 Type A receptacle (front panel)
- Management ports: two 100/1000BASE-T (RJ-45), one console, one auxiliary
- Timing: two independent clock source connections (BITS and SSU DTI)
- IEEE 1588 (PTP): copper 10/100 Mbps RJ-45 Ethernet port
- GPS/ToD: ToD (RS-422 and RS-232), 1-pps, 10 MHz in/out
- Alarms: critical, major and minor alarm outputs
- Redundancy: 1+1 RSP redundancy, both RSPs must be the same type
- Slot usage: 1 slot per RSP, 2 slots in a redundant configuration
- Dimensions (H x W x D): 4.60 x 42.85 x 62.89 cm
- Weight: 8.07 kg
- Operating temperature: 0 to 40 C nominal, -5 to 55 C short-term
- Storage temperature: -40 to 70 C
- Operating humidity: 10 to 85% nominal, 5 to 90% short-term
- Operating altitude: -60 to 4000 m
- Compliance: NEBS Level 3, ETSI, FCC Class A, AS/NZS 3548 Class A, CISPR 22 Class A
- Minimum software: Cisco IOS XR 5.3.0 or later

FAQs

Q: Which chassis does this route switch processor fit?
A: The RSP880 is compatible with the Cisco ASR 9904, ASR 9006 and ASR 9010 chassis.

Q: How does this SKU differ from the standard RSP880?
A: This is the Transport (TR) variant with fabric capacity rate-limited to 440G per slot. That matches the redundant (1+1) fabric capacity of the standard RSP880.

Q: Which software does it need?
A: It runs Cisco IOS XR and requires release 5.3.0 or later. Features are enabled through IOS XR packages and licences.

Q: Can I run two of these in one chassis?
A: Yes. The RSP880 supports 1+1 RSP redundancy, and both RSPs must be the same type. A redundant configuration uses two slots.

Q: Which line cards does it work with?
A: It supports 5th, 3rd and 2nd generation ASR 9000 line cards, including the A9K-8X100GE, A9K-4X100GE, A9K-24X10GE, A9K-MOD400 and A9K-MOD200.
