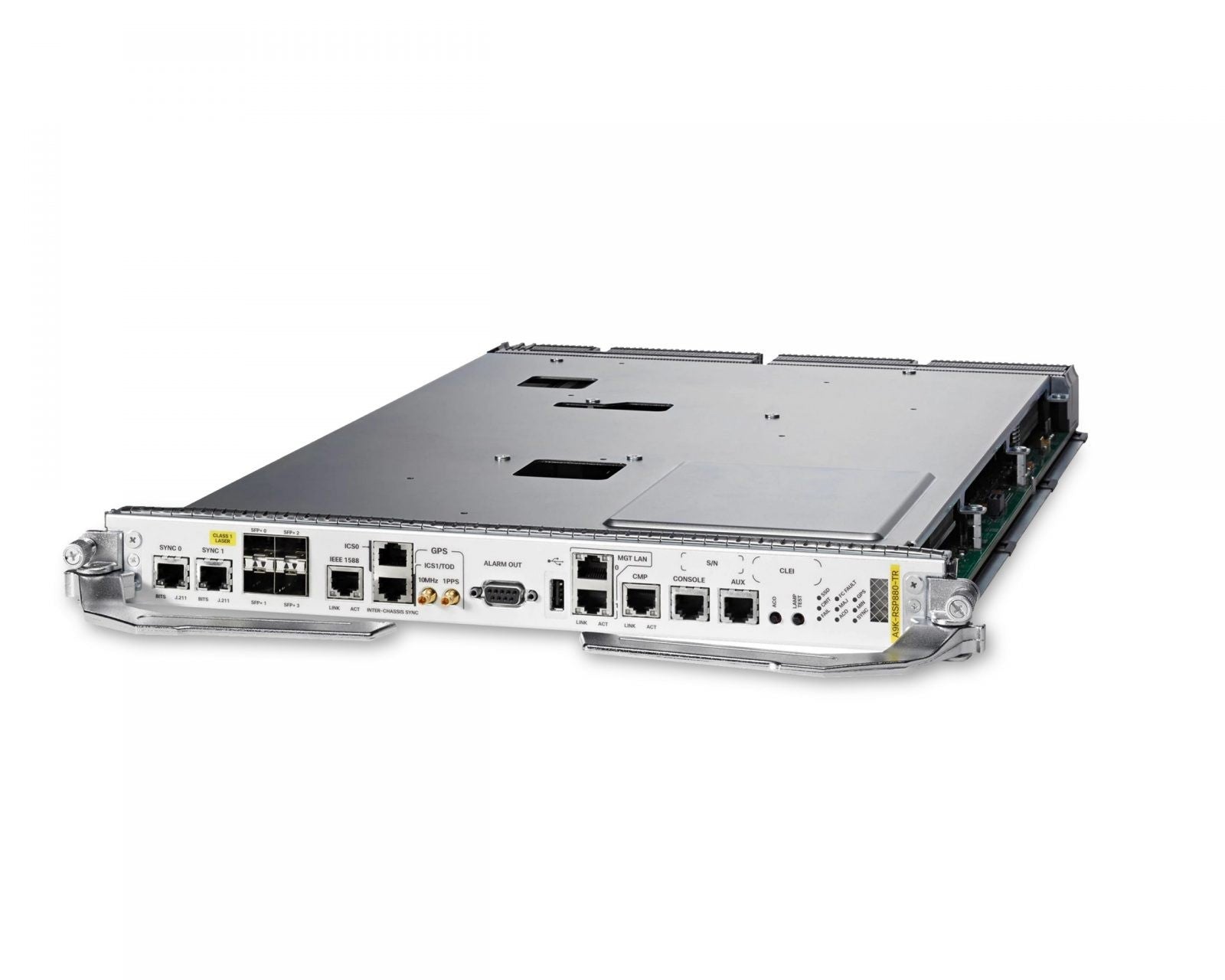

• Cisco A9K-RSP880-LT-SE silver router with multiple ports and sleek design
1 1

Cisco

Cisco A9K-RSP880-LT-SE | ASR 9000 RSP880-LT Route Switch Processor, SE 32G

A9K-RSP880-LT-SE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9000 RSP880-LT in the Service Edge 32G configuration is a route switch processor for the Cisco ASR 9000 Series. It runs the router control plane and provides centralised switch-fabric arbitration, timing and synchronisation. The Service Edge tier carries 32 GB of ECC DRAM for service-edge deployments that need high multi-dimensional scale, such as Carrier Ethernet, L2VPN and L3VPN business services, IPTV and CDN, mobile backhaul, DCI and RAN aggregation.

The LT variant uses a 4-core 2.4 GHz processor with two 128 GB SSDs, plus an 8 GB embedded USB device and a front-panel USB 2.0 Type A port for image loading and recovery. Management connectivity includes two 100/1000BASE-T RJ-45 ports, a console port and an auxiliary port. Timing inputs cover BITS, SSU DTI, IEEE 1588 PTP and GPS. Fabric capacity is 880 Gbps per slot non-redundant or 440 Gbps per slot redundant on the ASR 9904, 9006 and 9010, and 230 Gbps per RSP on the ASR 9910 and 9906.

It installs in ASR 9904, 9006, 9010, 9910 and 9906 chassis and requires Cisco IOS XR 6.2.2 or later. It supports 1+1 RSP redundancy, and both RSPs in a redundant pair must be the same type. It works with 2nd, 3rd and 5th generation line cards in the same chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Highly scalable fabric designed for high-density 1/10/100 GbE port counts
- Distributed forwarding-plane architecture, so line cards forward independently
- Memoryless switch fabric for non-blocking, low-latency forwarding
- Virtual output queuing and centralised arbiter for transparent switchover with zero packet loss
- IEEE 1588 PTP, BITS and DTI timing support for network synchronisation
- Two SSDs for storing core dumps, which helps reduce MTTR
- Front-panel USB 2.0 port for quick software image loading and recovery
- Runs Cisco IOS XR with SMU and FPD upgrade support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Route Switch Processor for Cisco ASR 9000
- Tier: Service Edge (SE), RSP880-LT variant
- Memory: 32 GB ECC-protected DRAM
- Processor: 4 cores, 2.4 GHz
- Storage: 2 x 128 GB SSD
- Embedded USB: 8 GB eUSB
- External USB: USB 2.0 Type A receptacle, front panel
- Management ports: 2 x 100/1000BASE-T RJ-45, 1 console, 1 auxiliary
- Fabric capacity (ASR 9904/9010/9006): 880 Gbps non-redundant, 440 Gbps redundant per slot
- Fabric capacity (ASR 9910/9906): 230 Gbps per RSP
- Switch fabric control: up to seven ASR 9000 Series switch fabric cards
- Timing: BITS and SSU DTI clock connections, IEEE 1588 PTP over RJ-45 Ethernet
- GPS: ToD (RS-422 and RS-232), 1-pps, 10-MHz in/out
- Alarms: critical, major and minor alarm outputs
- Redundancy: 1+1 RSP redundancy
- Slot usage: 1 slot per RSP, 2 slots for a redundant pair
- Dimensions (H x W x D): 4.60 x 42.85 x 62.89 cm
- Weight: 8.07 kg
- Operating temperature: 0 to 40 C nominal, -5 to 55 C short-term
- Operating humidity: 10 to 85% nominal, 5 to 90% short-term
- Storage temperature: -40 to 70 C
- Operating altitude: -60 to 4000 m
- Minimum software: Cisco IOS XR 6.2.2 or later, ASR 9906 support from IOS XR 6.4.1

FAQs

Q: Which ASR 9000 chassis does the RSP880-LT support?
A: It supports the ASR 9904, 9006, 9010, 9910 and 9906 chassis. The RSP880-LT is the only RSP880 variant supported on the 9910 and 9906.

Q: What software does it require?
A: It requires Cisco IOS XR 6.2.2 or later. ASR 9906 support starts from IOS XR 6.4.1.

Q: Can I run two RSPs for redundancy?
A: Yes, it supports 1+1 RSP redundancy using two slots. Both RSPs in a redundant pair must be the same type.

Q: What does the Service Edge tier add?
A: The Service Edge tier provides 32 GB of DRAM, giving the larger memory needed for high-scale service deployments with many VRFs, routes, BFD sessions and BGP NSR.

Q: Which line cards work with it?
A: It works with 2nd, 3rd and 5th generation line cards, including A9K-8HG-FLEX, A99-12X100GE, A9K-8X100GE, A9K-4X100GE, A9K-48X10GE-1G, A9K-24X10GE-1G, A9K-MOD400, A9K-MOD200, A9K-36X10GE and A9K-24X10GE.
