Cisco A9K-RSP5-X-TR | ASR 9000 RSP5-X Route Switch Processor, TR Premium

A9K-RSP5-X-TR

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

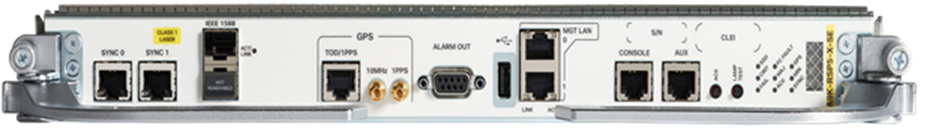

The ASR 9000 RSP5-X is a route switch processor for ASR 9000 Series Aggregation Services Routers. This A9K-RSP5-X-TR is the Packet Transport (TR) Premium variant with 24GB DRAM, built for carrier Ethernet edge, aggregation and transport networks, Data Center Interconnect, mobile transport and 5G backhaul. It drives the switch fabric and system timing and supports 100G and 400G line cards.

The module has an 8-core 2.7 GHz processor, 24GB of ECC-protected DRAM and two 128GB SSDs, with 8GB of embedded USB and a front-panel USB 2.0 Type A port. Management connectivity is two 100/1000BASE-T RJ-45 ports, one console port and one auxiliary port. Timing inputs include two BITS clock connections, GPS ToD, 1-PPS and 10-MHz interfaces, and an IEEE 1588 PTP 10/1G optical port. It supports 1+1 RSP redundancy, with both RSPs of the same kind. No separate licence is needed to operate the hardware.

It works in ASR 9904, 9006, 9010, 9906 and 9910 chassis and supports 3rd, 4th and 5th generation line cards. It requires Cisco IOS XR 7.6.2 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Distributed switch fabric using the integrated fabrics on the RSPs, plus dedicated fabric cards on ASR 9910 and 9906
- Multistage, low-latency, non-blocking architecture
- Memoryless switch fabric with virtual output queuing and a credit-based arbiter for zero-loss switchover
- Supports 1/10/25/40/100/400 Gbps port densities
- Network timing with GPS, BITS, IEEE 1588-2008 PTP and G.8273.2 Boundary Clock Class C
- Dual SSDs for core-dump storage, reducing mean time to repair
- Runs Cisco IOS XR with process modularity, SMU hot patching and FPD upgrades
- Supports Segment Routing, SRv6, EVPN, L2VPN/L3VPN, H-QoS, NSF/NSR and MC-LAG

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: Packet Transport (TR), Premium
- Processor: 8 cores, 2.7 GHz
- Memory: 24GB ECC-protected DRAM
- Storage: 2 x 128GB SSD
- Embedded USB: 8GB eUSB
- External USB: 1 x USB 2.0 Type A (front panel)
- Management ports: 2 x 100/1000BASE-T RJ-45, 1 console, 1 auxiliary
- Timing: 2 x BITS clock inputs
- GPS interfaces: ToD (RS-422), 1-PPS, 10-MHz in/out
- PTP: IEEE 1588 PTP 10/1G optical port
- Alarm outputs: Critical, Major, Minor
- Redundancy: 1+1 RSP, both RSPs must be the same kind
- Slot occupancy: 1 slot per RSP, 2 slots for a redundant pair
- Bidirectional capacity per line card slot: 600G (9910/9906), 1.1T (9010/9006), 1.8T (9904)
- Dimensions (H x W x D): 4.10 x 40.28 x 62.53 cm
- Weight: 9.01 kg
- Operating temperature: 5 to 40 C nominal, -5 to 55 C short-term
- Operating humidity: 5 to 90% RH
- Storage temperature: -40 to 70 C
- Minimum software: Cisco IOS XR 7.6.2 or later

FAQs

Q: Does the A9K-RSP5-X-TR need a separate licence?
A: No separate licence is needed to operate the hardware. TR denotes the Packet Transport optimised model with 24GB DRAM. It runs Cisco IOS XR 7.6.2 or later.

Q: Which chassis does it work in?
A: It supports the ASR 9904, 9006, 9010, 9906 and 9910 chassis.

Q: Which line cards does it support?
A: It supports 3rd, 4th and 5th generation ASR 9000 line cards, including A99-10X400GE-X-TR, A99-32X100GE-X-TR, A9K-20HG-FLEX-TR, A9K-8X100GE-TR and A9K-MOD400-TR.

Q: Can I run two RSPs for redundancy?
A: Yes, it supports 1+1 RSP redundancy. Both RSPs in the pair must be the same kind, so pair this TR module with another TR module.

Q: Does it need its own power supply?
A: No. It draws power from the chassis backplane.

Q: How does the TR model differ from the SE model?
A: The TR model has 24GB DRAM and suits packet-transport deployments. The SE model has 48GB DRAM and suits large-scale service-edge deployments.
