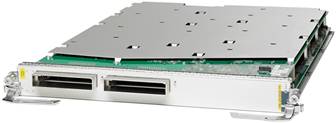

• Cisco A9K-MPA2X100GE-CM silver server rack with green circuit board
1 1

Cisco

Cisco A9K-MPA2X100GE-CM | ASR 9000 2x100GbE CFP2 Port Adapter, Consumption-Based

A9K-MPA2X100GE-CM

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 2-port 100 Gigabit Ethernet modular port adapter (MPA) is designed for the Cisco ASR 9000 Series and accepts CFP2 coherent optics, including Digital Coherent Optics (DCO). It is the consumption-based licensing (-CM) variant and installs in the bays of the A9K-MOD400-CM modular line card, giving service provider and core network operators flexible 100GbE port density with mix-and-match interface options.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single-slot modular design for mix-and-match interface flexibility within the modular line card
- Consumption-based (CM) licensing model for the ASR 9000 modular line card family
- Supports CFP2 Digital Coherent Optics (DCO)
- Staircase FEC support for the 2x100GE MPA with CFP2
- Part of the ASR 9000 modular port adapter portfolio, alongside the 20x10GE and 1x100GE MPAs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2 x 100 Gigabit Ethernet ports (two CFP2 cages)
- Supports LAN/WAN/OTN mode with CFP2 coherent transceiver modules at 100 Gbps
- Installs in bay 0 and bay 1 of the A9K-MOD400-CM modular line card
- Consumption-based licensing variant (-CM)
- Minimum MPA hardware version (VID) for CFP2 DCO support: V02 for the -CM part
- Compatible platform: Cisco ASR 9000 Series

FAQs

Q: Which line card does this port adapter install in?
A: It is designed for the A9K-MOD400-CM modular line card and plugs into bay 0 and bay 1 of that card.

Q: What type of optics does it accept?
A: It provides two CFP2 cages and supports CFP2 coherent transceiver modules at 100 Gbps, including Digital Coherent Optics (DCO).

Q: What does the -CM suffix mean?
A: The -CM suffix denotes the consumption-based licensing variant, intended for the ASR 9000 modular line card family that uses the consumption-based model.

Q: Is there a minimum hardware version for CFP2 DCO support?
A: Yes. The -CM part requires a minimum MPA hardware version (VID) of V02 for CFP2 DCO support.

Q: Which Cisco platform is this module used with?
A: It is an interface module for the Cisco ASR 9000 Series, installed via the A9K-MOD400-CM modular line card.
