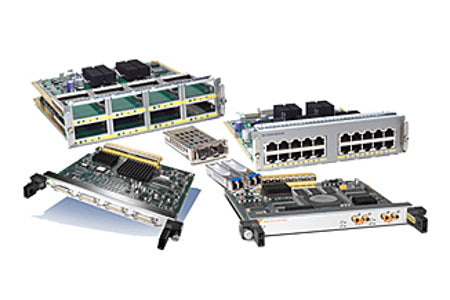

• Cisco A9K-MPA-8X10GE 8-port 10GE SFP+ module with sleek silver finish
1 1

Cisco

Cisco A9K-MPA-8X10GE | ASR 9000 8-Port 10GE SFP+ Modular Port Adapter

A9K-MPA-8X10GE

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The A9K-MPA-8X10GE is an 8-port 10 Gigabit Ethernet modular port adapter for Cisco ASR 9000 Series modular line cards. It delivers 80 Gbps of aggregate bandwidth through eight SFP+ ports, with SFP+ optics required and sold separately. The hot-swappable design allows up to two adapters per modular line card, suiting service provider and enterprise aggregation deployments on ASR 9922, 9010, 9006 and 9001 systems.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Flexible modular design with multiple Ethernet port combinations in a single ASR 9000 slot
- Lower initial cost and easier upgrades
- No chassis or cooling system hardware upgrade required
- QoS, MPLS, NetFlow and VCCV support
- NEBS Level 3 design for the ASR 9000 Series

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x 10 Gigabit Ethernet SFP+ ports (SFP+ optics required, sold separately)
- 80 Gbps aggregate bandwidth
- Up to 2 modular port adapters per modular line card
- Compatible with Cisco ASR 9922, 9010, 9006 and 9001 systems (an ASR 9000 modular line card is required)
- Hot-swappable with online insertion and removal
- Minimum software: Cisco IOS XR 4.3.1
- Dimensions: 6.37 in W x 1.36 in H x 8.30 in D
- Weight: approximately 0.79 kg / 1.75 lb
- Operating temperature: 5 to 40 °C
- Supports IEEE 802.3ae and IEEE 1588-2008 PTP

FAQs

Q: Does the A9K-MPA-8X10GE include SFP+ optics?
A: No. The adapter provides eight SFP+ ports and SFP+ optics must be purchased separately.

Q: Can this adapter be installed on its own in an ASR 9000 chassis?
A: No. It is a modular port adapter and requires an ASR 9000 Series modular line card to host it.

Q: How many of these adapters fit in one modular line card?
A: Up to two modular port adapters can be installed per modular line card.

Q: Which ASR 9000 systems is it compatible with?
A: It is compatible with the Cisco ASR 9922, 9010, 9006 and 9001 systems, provided an ASR 9000 modular line card is used.

Q: Can it be replaced while the system is running?
A: Yes. The adapter is hot-swappable and supports online insertion and removal.
