Cisco

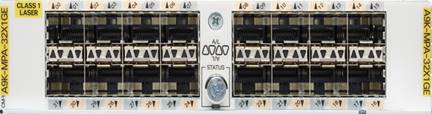

Cisco A9K-MPA-32X1G-FC | 32x 1GbE SFP MPA | Optics: 1G SFP, 1000BASE-X, LC, reach per optic | For ASR 9000

A9K-MPA-32X1G-FC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

High-density 1 Gigabit Ethernet Modular Port Adapter providing 32 SFP slots for scalable edge and aggregation deployments on ASR 9000 platforms. Supports a wide range of 1G SFP optics and copper SFPs, with feature enablement determined by the host line card and IOS XR. Ideal for service provider and large enterprise networks needing flexible 1G access at scale.

Features

- High-density 32-port 1GbE aggregation in a single MPA
- Flexible optics choice with broad SFP compatibility
- Carrier-grade performance when paired with ASR 9000 modular line cards
- Investment protection via IOS XR feature set on the host line card
- Operational simplicity with consistent tooling and optics across the network

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Port density: 32 x 1GbE
- Port type: SFP (supports fiber and selected 1G copper SFPs)
- Ethernet standards: IEEE 802.3, 1000BASE-X
- Optics support: SR/LR/ER/CWDM/DWDM per platform compatibility
- Optical connector: LC (when using fiber SFPs)
- Platform: ASR 9000 series with compatible MPA-capable line card
- OS compatibility: IOS XR (features depend on software and line card)
- Throughput: Line-rate per port subject to host line card/fabric
- Features: L2/L3, QoS, MPLS (enabled by host line card/IOS XR)
- MACsec: Not supported on this variant

FAQs

Q: Which chassis/line cards are supported?
A: It is designed for ASR 9000 series routers using an MPA-capable modular line card. Consult your specific line card datasheet for MPA bay support.

Q: What SFP modules can I use?
A: Standard-compliant 1G SFP optics (e.g., SR, LR, ER, CWDM/DWDM) and select 1G copper SFPs are supported; final support depends on the host line card and IOS XR release.

Q: Does this MPA support MACsec?
A: No, this 32x1G variant does not provide MACsec. Choose the 32x1G MACsec-enabled MPA if encryption is required.

Q: Are licenses required to enable features?
A: Some features are licensed on the host ASR 9000 platform. Check your IOS XR and line card licensing.

Q: How many MPAs can I install per line card?
A: Capacity varies by line card model; many modular line cards support two MPA bays. Refer to your line card documentation.
