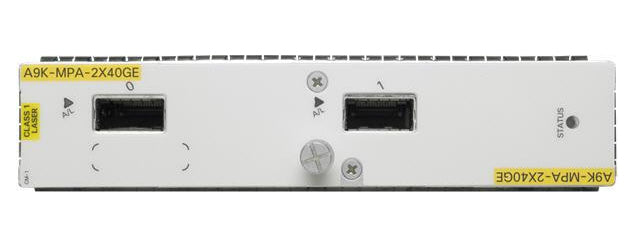

• Cisco A9K-MPA-2X40GE 40Gbps Ethernet switch module with dual QSFP+ SFP+ ports
1 1

Cisco

Cisco A9K-MPA-2X40GE | ASR 9000 2-Port 40GE QSFP+ Modular Port Adapter

A9K-MPA-2X40GE

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

A modular port adapter for Cisco ASR 9000 Series modular line cards, providing two QSFP+ cages for 40 Gigabit Ethernet connectivity over multimode or single-mode optics. Up to two adapters can be installed per modular line card for four 40G ports in total, making it a flexible way to add high-speed aggregation capacity to ASR 9000 chassis. QSFP or QSFP+ optics are required and are sold separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Plugs into the open bays of ASR 9000 Series modular line cards (MOD80/MOD160/MOD200/MOD400)
- Supports Layer 2 and Layer 3 services on IOS XR
- Carrier-class OA&M including NetFlow, IEEE 802.1ag, 802.3ah, ITU Y.1731 and IP SLA
- Synchronous Ethernet support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2 x 40GbE QSFP+ ports (requires QSFP/QSFP+ optics, sold separately)
- Supports 40GE multimode or single-mode QSFP+ connections
- Dimensions: 6.37 W x 1.36 H x 6.70 L in (8.30 in L including jackscrew)
- Weight: 28 oz (approx. 0.7-0.79 kg)
- Minimum software: Cisco IOS XR 4.2.1 on fixed/MOD80/MOD160 line cards, IOS XR 5.3.2 on 400G modular line cards, IOS XR 6.0.1 on 200G modular line cards
- Up to 2 MPAs per modular line card (4 x 40G ports per line card)
- Chassis compatibility: ASR 9922, 9010, 9006 and 9001

FAQs

Q: Are optics included with the A9K-MPA-2X40GE?
A: No. The adapter provides two QSFP+ cages and requires QSFP or QSFP+ optics, which are sold separately.

Q: Which ASR 9000 chassis support this port adapter?
A: It is compatible with the ASR 9922, 9010, 9006 and 9001 chassis when installed in a supported modular line card.

Q: How many of these adapters can be installed in one line card?
A: Up to two MPAs can be installed per modular line card, giving a total of four 40G ports per line card.

Q: What minimum IOS XR software version is required?
A: IOS XR 4.2.1 is the minimum on fixed, MOD80 and MOD160 line cards, IOS XR 5.3.2 on 400G modular line cards, and IOS XR 6.0.1 on 200G modular line cards.

Q: What type of fibre can be used with this adapter?
A: Both multimode and single-mode 40GE QSFP+ connections are supported, depending on the optic installed.
