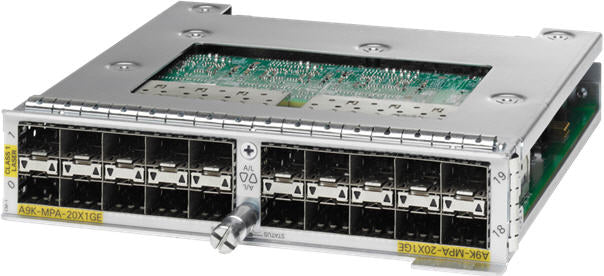

• Cisco A9K-MPA-20X1GE ASR 9000 MPA with 20x1GbE SFP ports
1 1

Cisco

Cisco A9K-MPA-20X1GE | ASR 9000 20-Port 1GE SFP Modular Port Adapter

A9K-MPA-20X1GE

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The A9K-MPA-20X1GE is a 20-port 1-Gigabit Ethernet modular port adapter for Cisco ASR 9000 Series modular line cards. It provides 20 SFP ports across 10 double-stacked cages and accepts fibre-optic or copper GE SFP transceivers, which are required and sold separately. Up to two adapters can be installed per line card and mixed with other modular port adapters, making it suited to service provider and enterprise aggregation edge deployments. It supports online insertion and removal without system impact.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Online insertion and removal (OIR) supported without system impact
- Mix and match with other modular port adapters in a single line card slot, for example a 4-port 10GE adapter alongside a 20-port 1GE adapter
- Hot-swappable SFP transceivers
- Compatible with Service Edge Optimized (enhanced QoS) and Packet Transport Optimized (basic QoS) line cards
- Designed to meet NEBS Level 3, with UL/CSA/IEC/EN 60950-1 safety compliance
- No chassis or cooling hardware upgrade required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 20 x 1GbE SFP ports (10 double-stacked SFP cages)
- Supports fibre-optic or copper GE SFP transceivers
- SFP optics required and not included
- Dimensions: 6.37 W x 1.36 H x 6.70 L in (8.30 L including jackscrew)
- Weight: 34 oz (0.96 kg)
- Chassis compatibility: Cisco ASR 9922, 9010, 9006 and 9001
- Up to 2 modular port adapters per line card
- Minimum software: Cisco IOS XR 5.3.3 on 400G modular line cards; IOS XR 6.0.1 on 200G modular line cards
- Operating temperature: 5 to 40 °C (41 to 104 °F)
- Active/Link LED beside each SFP cage

FAQs

Q: Which chassis is the A9K-MPA-20X1GE compatible with?
A: It is compatible with the Cisco ASR 9922, 9010, 9006 and 9001 chassis when installed in a supported ASR 9000 Series modular line card.

Q: Are SFP transceivers included?
A: No. The adapter requires SFP optics, which are not included. It accepts fibre-optic or copper GE SFP transceivers in its 20 ports.

Q: What software version is required?
A: Cisco IOS XR 5.3.3 or later is required on 400G modular line cards, and IOS XR 6.0.1 or later on 200G modular line cards.

Q: Can it be combined with other port adapters?
A: Yes. Up to two modular port adapters can be installed per line card, and different types can be mixed, such as a 4-port 10GE adapter with this 20-port 1GE adapter.

Q: Can it be replaced while the system is running?
A: Yes. The adapter supports online insertion and removal (OIR) without system impact, and the SFP transceivers are also hot-swappable.
