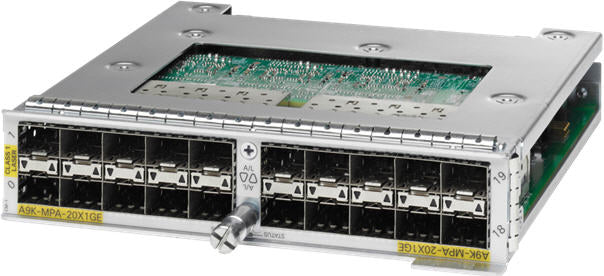

• Cisco A9K-MPA-20X1G-FC ASR 9000 MPA with 20x1GbE SFP ports
1 1

Cisco

Cisco A9K-MPA-20X1G-FC | ASR 9000 20x 1GE SFP Port Adapter, Flexible Consumption

A9K-MPA-20X1G-FC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 9000 20-port 1GE modular port adapter provides 20 Gigabit Ethernet SFP ports for high-density edge and aggregation deployments. This Flexible Consumption (-FC) variant of A9K-MPA-20X1GE installs in Mod80 modular line cards, with up to two port adapters per line card. It supports SFP, CWDM SFP, DWDM SFP and 100BASE-FX SFP optics, and includes Synchronous Ethernet and carrier-class OA&M tools.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IEEE 802.3 compliant, full-duplex operation, IEEE 802.x flow control
- Per-port byte and packet counters for policy drops, oversubscription drops, CRC error drops, packet sizes, and unicast/multicast/broadcast packets
- Active/Link LED beside each SFP cage
- Carrier-class OA&M (NetFlow, 802.1ag, 802.3ah, Y.1731, IP SLA) and Synchronous Ethernet
- Can be paired with other MPAs (e.g. 4x10GE) in a single slot

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 20 x 1GE SFP ports (requires SFP optics)
- Up to 2 modular port adapters per modular line card
- Dimensions: 6.37 W x 1.36 H x 6.70 L in (8.30 in including jackscrew)
- Weight: 34 oz (0.96 kg)
- Compatible chassis: Cisco ASR 9922, 9010, 9006 and 9001
- Requires A9K-MOD80-SE or A9K-MOD80-TR modular line card
- Minimum software: Cisco IOS XR 4.2.0 (5.3.3 on 400G modular line cards, 6.0.1 on 200G modular line cards)
- Operating temperature (nominal): 5 to 40°C
- Supports SFP, CWDM SFP and DWDM SFP modules, and 100BASE-FX SFP

FAQs

Q: Which line cards does the A9K-MPA-20X1G-FC install in?
A: It installs in Cisco ASR 9000 Mod80 modular line cards, specifically the A9K-MOD80-SE and A9K-MOD80-TR. Each modular line card accepts up to two port adapters.

Q: Are SFP optics included?
A: No. The adapter provides 20 SFP cages and requires SFP optics to be fitted separately. It supports SFP, CWDM SFP, DWDM SFP and 100BASE-FX SFP modules.

Q: Which ASR 9000 chassis is it compatible with?
A: It is compatible with the Cisco ASR 9922, 9010, 9006 and 9001 chassis when used with a supported modular line card.

Q: What software version is required?
A: Cisco IOS XR 4.2.0 is the minimum. Modular line cards at 400G require 5.3.3, and those at 200G require 6.0.1.

Q: Can it be combined with other port adapters?
A: Yes. Each modular line card holds two port adapters, so it can be paired with another MPA, such as a 4x10GE adapter, in the same line card.
