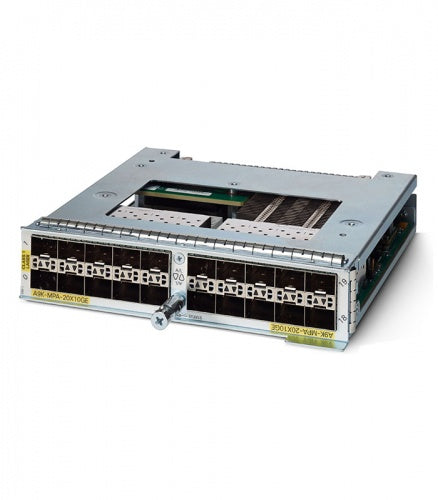

• Cisco A9K-MPA-20X10GE silver server rack with 20x10GbE SFP+ slots
1 1

Cisco

Cisco A9K-MPA-20X10GE | ASR 9000 20x 10GE SFP+ Modular Port Adapter

A9K-MPA-20X10GE

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9000 20-port 10 Gigabit Ethernet modular port adapter (MPA) adds 20 x 10GE SFP+ interfaces to compatible Cisco ASR 9000 Series modular line cards. It is hot-swappable and requires SFP+ optics to be installed in each port. Suited to aggregation and service provider deployments carrying video on demand, IPTV, Internet video and cloud-based computing traffic.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable modular port adapter for ASR 9000 modular line cards
- MACsec (IEEE 802.1AE) Layer 2 hop-by-hop encryption supported on 400G and 200G modular line cards, subject to minimum IOS XR software requirements
- Part of the Cisco MPA portfolio, designed for investment protection and consistent feature support
- Suited to video on demand, IPTV, point-to-point video, Internet video and cloud-based computing applications

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 20 x 10 Gigabit Ethernet ports, requires SFP+ optics
- Dimensions: 6.37 W x 1.36 H x 6.70 L in (8.30 L including jackscrew)
- Weight: 35.2 oz (0.99 kg)
- Minimum software on 400G modular line cards: Cisco IOS XR 5.3.2
- Minimum software on 200G modular line cards: Cisco IOS XR 6.0.1
- Requires an ASR 9000 modular line card (not standalone)
- Operating humidity: 10 to 85%

FAQs

Q: Can this port adapter be used on its own?
A: No. The A9K-MPA-20X10GE is a modular port adapter that installs into an ASR 9000 Series modular line card and cannot operate standalone.

Q: Are SFP+ optics included?
A: No. Each of the 20 ports requires an SFP+ optic to be fitted separately, so you can choose the reach and media type that suits your deployment.

Q: What IOS XR software version is required?
A: A minimum of Cisco IOS XR 5.3.2 is required on 400G modular line cards, and IOS XR 6.0.1 on 200G modular line cards.

Q: Does it support MACsec encryption?
A: Yes. MACsec (IEEE 802.1AE) Layer 2 hop-by-hop encryption is supported on 400G and 200G modular line cards, subject to the minimum software requirements.

Q: Can it be installed or replaced while the system is running?
A: Yes. The adapter is hot-swappable, allowing it to be added or replaced in a compatible modular line card without a full chassis shutdown.
