Cisco

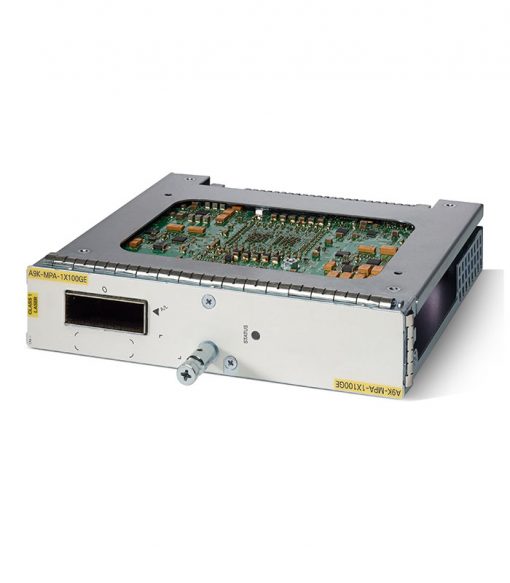

Cisco A9K-MPA-1X100GE | ASR 9000 MPA | 1x100GbE port | Pluggable optics | Hot-swappable | For modular line cards

SKU:A9K-MPA-1X100GE

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-capacity 1x100GbE Modular Port Adapter for ASR 9000 modular line cards, delivering carrier-grade 100G uplink on a hot-swappable MPA. Uses pluggable 100G optics so you can choose the right standard and reach for your network. Integrated with platform features via IOS XR on the hosting line card and fabric.

Features

- Single-port 100GbE for high-bandwidth uplink or backbone connectivity
- Modular, hot-swappable design simplifies maintenance and upgrades
- Flexible optics selection to match distance and fiber type
- Platform-driven features (QoS, ACLs, telemetry) via IOS XR on the hosting line card
- DOM/optics monitoring and detailed per-port statistics (platform-dependent)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this MPA require a specific line card?
A: Yes. It must be installed into a compatible ASR 9000 modular line card that provides MPA bays.

Q: Are 100G optics included?
A: No. Optics are sold separately; choose standards and reach supported by your platform.

Q: Is breakout (for example 4x25G) supported on the 100G port?
A: Breakout capabilities depend on the installed optics and platform software; consult the platform release notes.

Q: Can I hot-swap this adapter?
A: Yes, it supports online insertion and removal (OIR) when following platform procedures.

Q: Does this module add additional forwarding capacity?
A: Forwarding is provided by the hosting line card and system fabric; the MPA supplies the physical 100G interface.

Technical Specifications

- Port configuration: 1 x 100 Gigabit Ethernet
- Port speed: 100G
- Interface type: Ethernet (via pluggable transceiver)
- Optics support: 100G pluggables; common 100GBASE variants such as SR4, LR4, ER4, CWDM4 when using compatible optics
- Optical connector: Depends on optic (e.g., MPO-12 for SR4; LC duplex for LR4/ER4)
- Form factor: Modular Port Adapter (MPA) for ASR 9000 modular line cards
- Hot-swappable (OIR): Yes, when performed per platform guidelines
- Platform compatibility: Requires ASR 9000 modular line card with MPA bays
- Software: Managed under IOS XR; features and scale depend on hosting line card and release
- Transceivers/cables: Sold separately
