Cisco

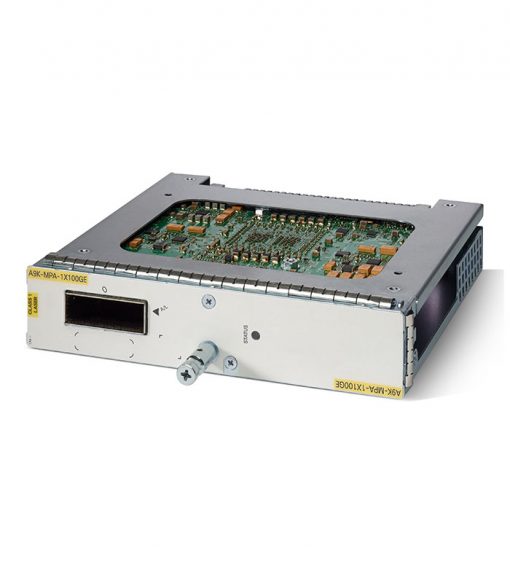

Cisco A9K-MPA-1X100G-FC | 1x100G port adapter (CFP), IEEE 802.3ba 100GBASE-LR4/SR10/ER4, up to 40km, LC/MPO, Flexible Consumption licensing

SKU:A9K-MPA-1X100G-FC

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Single-port 100 Gigabit Ethernet Modular Port Adapter enabling 100GE interfaces on compatible MOD-series line cards. Uses CFP optics with support for common 100GBASE variants for short-reach, long-reach, and extended-reach deployments. Flexible Consumption model allows capacity alignment with operational needs.

Features

- Enables a single 100GE port via CFP optics on modular line cards
- Supports common 100GBASE variants for diverse distance needs
- Flexible Consumption licensing aligns cost with utilization
- Mix-and-match with other MPAs to tailor port mix
- Enterprise-grade performance under IOS XR

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Which line cards support this MPA?
A: Supported ASR 9000 MOD-series line cards that provide MPA bays (e.g., MOD80/MOD200/MOD400), subject to software and hardware compatibility.

Q: Are CFP transceivers included?
A: No. Select appropriate CFP modules (e.g., LR4, SR10, ER4) and fiber type per your reach requirements.

Q: Can I mix this 1x100G MPA with other MPA types on the same line card?
A: Yes, as long as total bandwidth, power, and software constraints are respected.

Q: Does this MPA support MACsec or OTU framing?
A: Feature support depends on the line card, software release, and selected optics. Consult the relevant release notes.

Technical Specifications

- Ports: 1 × 100 Gigabit Ethernet
- Optic form factor: CFP (plug-in transceiver, sold separately)
- Ethernet standards: IEEE 802.3ba (100GBASE-LR4, 100GBASE-SR10, 100GBASE-ER4; optic-dependent)
- Typical wavelengths: LR4/ER4 ~1310 nm; SR10 ~850 nm (optic-dependent)
- Typical reach: SR10 up to 100 m (OM3)/150 m (OM4); LR4 up to 10 km; ER4 up to 40 km (optic-dependent)
- Connectors: LC duplex (LR4/ER4), MPO-24 (SR10), depending on CFP chosen
- Compatibility: Installs in supported ASR 9000 MOD-series line cards with MPA bays
- Licensing: Flexible Consumption (FC/FCM) model
