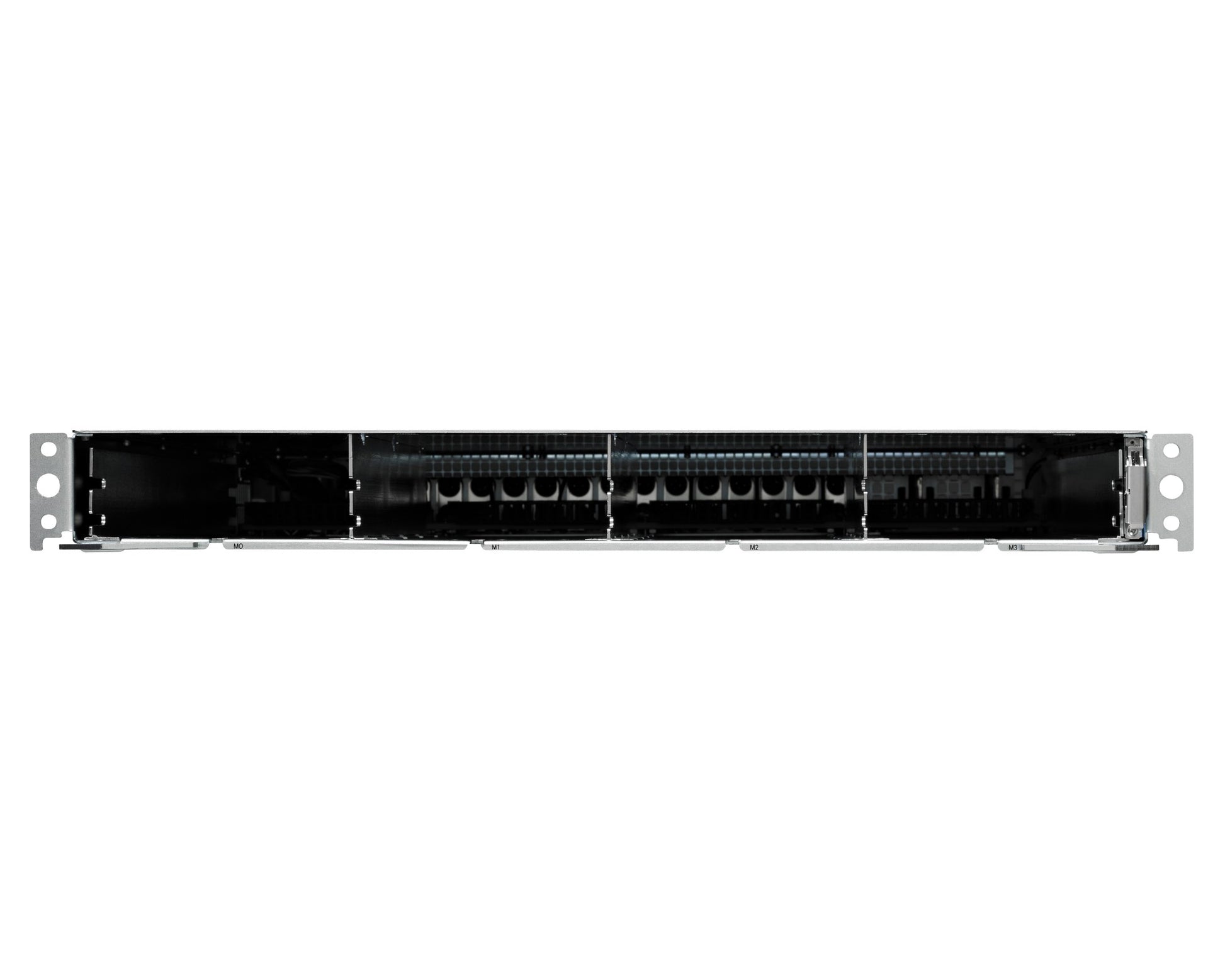

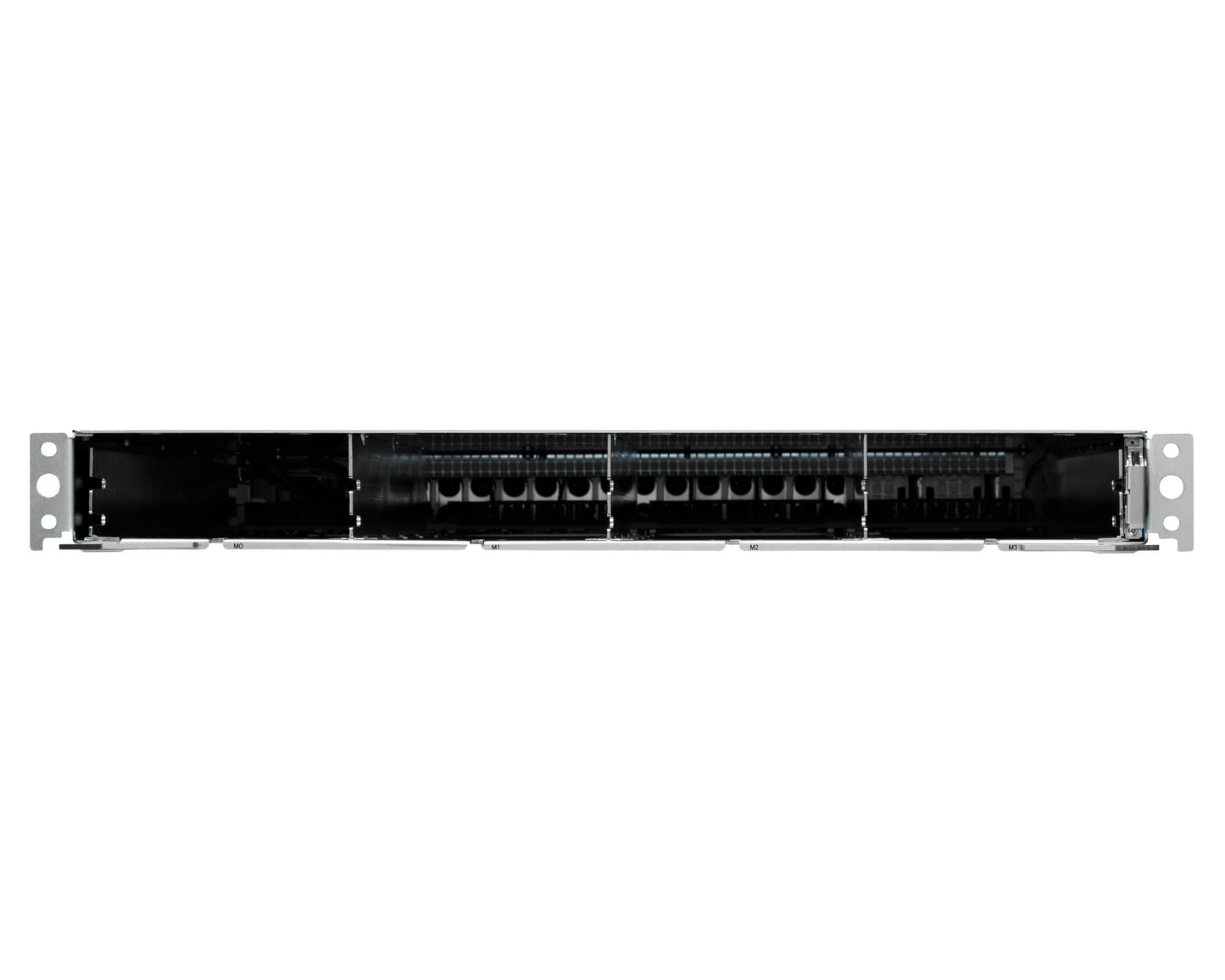

• Cisco A9K-DC-PEM-V2 DC PEM V2 in 1U rackmount server chassis
1 1

Cisco

Cisco A9K-DC-PEM-V2 | ASR 9000 DC Power Entry Module V2, Dual-Feed A/B

A9K-DC-PEM-V2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The A9K-DC-PEM-V2 is a Version 2 DC power entry module (PEM) for the Cisco ASR 9000 Series chassis. It provides dual-feed A/B DC input and houses the field-serviceable DC power supply modules, including the 2.1 kW PWR-2KW-DC-V2 and 4.4 kW PWR-4.4KW-DC-V3. Designed for DC-powered telecom and service provider deployments, it supports N+1 power module redundancy and A/B feed redundancy, with higher power capacity and density than the V1 PEM.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, field-serviceable power entry module
- Dual-feed (A/B) DC input
- Modular power architecture with no power zones or placement restrictions
- Supersedes the end-of-sale V1 A9K-DC-PEM
- Higher power capacity and density than the V1 PEM

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Module type: DC Power Entry Module Version 2 (plug-in module)
- Compatible with ASR 9001, 9006, 9010, 9904, 9912 and 9922 chassis
- Houses DC power supplies: 2.1 kW (PWR-2KW-DC-V2) and 4.4 kW (PWR-4.4KW-DC-V3)
- Redundancy: DC N+1 power module redundancy, A/B feed redundancy, PEM redundancy
- Input: dual-feed (A/B) DC
- Mixing of AC and DC modules in a chassis is not supported
- Spare orderable as A9K-DC-PEM-V2=
- Supported from IOS XR Release 6.1.2

FAQs

Q: Which Cisco ASR 9000 chassis use the A9K-DC-PEM-V2?
A: It is used with the ASR 9001, 9006, 9010, 9904, 9912 and 9922 chassis.

Q: Which DC power supplies does this PEM house?
A: It houses the 2.1 kW PWR-2KW-DC-V2 and the 4.4 kW PWR-4.4KW-DC-V3 DC power supply modules.

Q: Can I mix AC and DC power modules in the same chassis?
A: No. Mixing of AC and DC power modules in a single ASR 9000 chassis is not supported.

Q: Can I upgrade from the V1 DC PEM to the V2 PEM?
A: Yes, but both the PEM and the power supplies must be replaced with V2 versions. The V1 A9K-DC-PEM is end-of-sale and superseded by the A9K-DC-PEM-V2.

Q: What power redundancy does the V2 DC PEM support?
A: It supports dual-feed A/B DC input redundancy along with DC N+1 power module redundancy and PEM redundancy.
