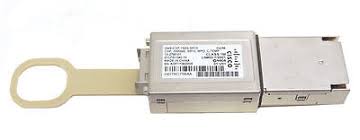

• Cisco A9K-CXP-100G-SR10 silver USB flash drive with loop handle and label
1 1

Cisco

Cisco A9K-CXP-100G-SR10 | 100G CXP Transceiver, 100GBASE-SR10, MPO-24, 150m OM4

A9K-CXP-100G-SR10

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The A9K-CXP-100G-SR10 is a hot-swappable 100 Gigabit Ethernet CXP optical transceiver for short-reach multimode links. It is the ASR 9000 ordering part number for the CXP-100G-SR10 module and suits short-reach data centre networking, high-performance computing networks, enterprise core aggregation and service provider transport applications.

This 100GBASE-SR10 module transmits at 850 nm over 24-fibre MPO/MTP ribbon cable, reaching 100 m on OM3 or 150 m on OM4 multimode fibre. It draws less than 3.5 W at 70 C, is powered from the host port with no external supply, and supports Digital Optical Monitoring. It can also run in 10 x 10G breakout mode using ribbon-to-duplex-fibre breakout cables to ten 10GBASE-SR interfaces, and supports 40GBASE-SR4 breakout.

The module is supported on Cisco CXP-port switches, routers and optical platforms, including the ASR 9000 series, where this part number is listed on the ASR 9001, 9010 and 9912 pages. The optical receptacle is a female MPO/MTP-24 and requires PC or UPC patch cords. Consult the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for exact platform and software support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports 100 Gigabit Ethernet over multimode fibre
- Hot-swappable I/O module for Cisco CXP-based switch, router and optical platform ports
- Digital Optical Monitoring (DOM) for link and optical power visibility
- Supports the Cisco quality ID feature to identify Cisco-certified and tested modules
- 10 x 10G breakout mode to ten 10GBASE-SR interfaces using breakout cables
- Also supports 40GBASE-SR4 breakout
- Interoperable with IEEE-compliant 100GBASE-SR10 form factors
- Colour-coded pull-release handle for reach identification

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: CXP
- Standard: IEEE 802.3ba 100GBASE-SR10
- Wavelength: 850 nm (840 to 860 nm, 12 lanes)
- Fibre type: Multimode fibre (MMF), 50.0 micron core
- Modal bandwidth: 2000 MHzkm (OM3) / 4700 MHzkm (OM4)
- Reach: 100 m over OM3, 150 m over OM4 (engineered link with max 1 dB connector/splice loss)
- Connector: 24-fibre female MPO/MTP-24 (PC or UPC patch cords only, APC not supported)
- Transmit power: -7.6 dBm min to -1.0 dBm max per lane
- Receive power: -9.5 dBm min to 2.4 dBm max per lane
- Power consumption at 70 C: less than 3.5 W max
- Dimensions (H x W x D): 13.3 x 24 x 62 mm max
- Weight: less than 200 g
- Operating temperature: 0 to 70 C
- Storage temperature: -40 to 85 C
- Digital Optical Monitoring (DOM): Supported
- Laser safety: Class 1 (21CFR-1040 LN50 7/2001, IEC60825-1)
- Compliance: RoHS 6, GR-20-CORE, GR-326-CORE, GR-1435-CORE, IEEE 802.3ba

FAQs

Q: What fibre and cabling does the A9K-CXP-100G-SR10 need?
A: It needs 24-fibre MPO/MTP ribbon cabling on 50 micron multimode fibre. Reach is 100 m on OM3 and 150 m on OM4. Use PC or UPC patch cords, as APC is not supported.

Q: Which platforms is this module used in?
A: It is the ASR 9000 ordering part number for the CXP-100G-SR10 and appears on the ASR 9001, 9010 and 9912 product pages. Check the Cisco 100 Gigabit Ethernet Transceiver Modules Compatibility Matrix for exact platform and software support.

Q: Does it need an external power supply?
A: No. It is powered from the host platform port and draws less than 3.5 W at 70 C.

Q: Can it be broken out to 10G links?
A: Yes. Using ribbon-to-duplex-fibre breakout cables, it can run in 10 x 10G breakout mode to ten 10GBASE-SR interfaces, and it also supports 40GBASE-SR4 breakout.

Q: Does it support Digital Optical Monitoring?
A: Yes. It supports DOM, so transmit and receive optical power can be monitored from the host platform.
