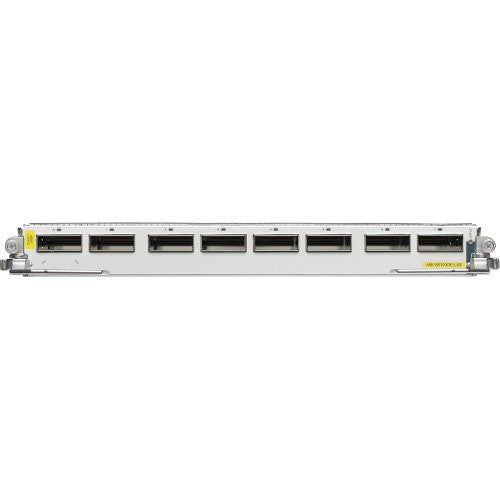

• Cisco A9K-8X100GE-TR 8x100G OTN line card with slots
1 1

Cisco

Cisco A9K-8X100GE-TR | ASR 9000 8-Port 100G Line Card, TR, CPAK Optics

A9K-8X100GE-TR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 8-port 100 Gigabit Ethernet line card for the ASR 9000 Series is optimised for packet transport (TR) and offers LAN/WAN/OTN unified PHY ports. Each port delivers non-oversubscribed 100-Gbps line-rate throughput using Cisco CPAK pluggable optics, which are sold separately, and each CPAK port can be configured for 100GE, 40GE or 10GE. It suits service provider aggregation, data centre interconnect and core transport deployments running IOS XR in compatible ASR 9000 chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Based on Cisco CPAK pluggable technology, so 100GE, 40GE and 10GE interface types can be mixed on one card
- Full line rate with no oversubscription
- Combined IP, MPLS, Ethernet, L2VPN and L3VPN services on IOS XR
- Green design puts unused port capacity into power-saving mode
- 100GE over IP-over-DWDM up to 3,000 km when paired with a Cisco ONS 15454 DWDM transponder
- Carrier-class OAM: NetFlow, IEEE 802.1ag, 802.3ah, ITU Y.1731, IP SLA
- 10x10G CPAK breakout supports aggregation, DCI and 10GE nV Satellite mode
- Chassis may need cooling or power upgrades to support 100GE density

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x 100 Gigabit Ethernet ports (Cisco CPAK pluggable optics required, sold separately)
- 100-Gbps IEEE 802.3ba compliant
- 100-Gbps line-rate throughput per port, non-oversubscribed
- Each CPAK port is CLI-configurable for 100GE, 40GE or 10GE (10x10G CPAK breakout option)
- LAN/WAN/OTN unified PHY ports
- Compatible chassis: ASR 9006, 9010, 9904, 9906, 9912, 9922
- Line card Online Insertion and Removal (OIR) support
- Dimensions 14.5 x 1.63 x 22.02 in (368.3 x 41.4 x 559.3 mm), approx. 12.7 kg
- Operating temperature 5 to 40°C; storage -40 to 70°C
- Optics form factor, wavelength, reach and connector depend on the individual CPAK module

FAQs

Q: Are optics included with this line card?
A: No. The card requires Cisco CPAK pluggable optics, which are sold separately. Form factor, wavelength, reach and connector depend on the CPAK module you choose.

Q: Which ASR 9000 chassis support this line card?
A: It is compatible with the ASR 9006, 9010, 9904, 9906, 9912 and 9922 chassis. Higher 100GE port density may require cooling or power upgrades in the chassis.

Q: Can the ports run at speeds other than 100GE?
A: Yes. Each CPAK port is CLI-configurable for 100GE, 40GE or 10GE, and a 10x10G CPAK breakout option supports aggregation, DCI and 10GE nV Satellite mode.

Q: What does the TR designation mean?
A: TR indicates the packet transport optimised version of the 8-port 100GE card, with LAN/WAN/OTN unified PHY ports and full line-rate, non-oversubscribed throughput on every port.

Q: Can this card be hot-swapped?
A: Yes. The line card supports Online Insertion and Removal (OIR) in compatible ASR 9000 chassis.
