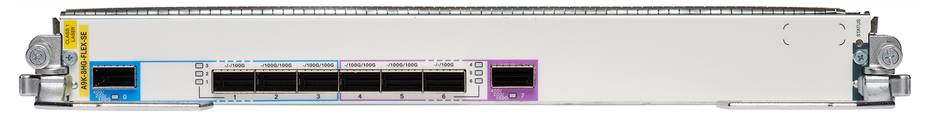

Cisco A9K-8HG-FLEX-SE | ASR 9000 8-Port 100G QSFP28 Line Card, 800G SE
SKU:A9K-8HG-FLEX-SE
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ASR 9000 800G Service Edge Combo Line Card is a 5th generation multi-rate line card for modular ASR 9000 routers. It is built for service-provider core, peering and edge aggregation in Carrier Ethernet and IP/MPLS networks, and the Service Edge variant targets deployments that need enhanced service scale. It suits operators replacing large 10GE link-aggregation bundles with 100G ports for video, cloud and mobile backhaul traffic.
The card delivers 0.8 Tbps across 8 ports: 6 QSFP28 ports running 10, 40 or 100GbE and 2 QSFP-DD ports running 10, 40, 100, 200 or 400GbE. Port speeds can be combined freely as long as the total does not exceed 0.8T, for example 8 x 100G or 2 x 400G. 400GE operation on the QSFP-DD ports is enabled by a per-port licence, and optional VRF and in-line CGv6 feature licences are available for the card. Throughput is non-oversubscribed at full line rate, and unused slices can be placed in power-saving mode.
It fits any slot in ASR 9006, 9010, 9904, 9906, 9910, 9912 and 9922 chassis and requires Cisco IOS XR 7.1.15 or later. Online insertion and removal is supported without system impact, and QSFP breakout is available for large-scale aggregation.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Mix and match 10/40/100/200/400 Gigabit Ethernet interface modes on the same line card
- Interface modes configurable via CLI without resetting or restarting the line card
- Non-oversubscribed, full line-rate traffic on all multi-rate ports
- QSFP breakout option supports large-scale aggregation and 10GE Satellite nV System mode
- Carrier-class OAM including NetFlow, IEEE 802.1ag, IEEE 802.3ah, ITU Y.1731 and IP SLA
- Unused slice can be placed in power-saving mode
- Online insertion and removal without system impact
- Runs Cisco IOS XR 64-bit carrier-class operating system
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Capacity: 0.8 Tbps
- Port configuration: 8 x 100G, or 2 x 200G, or 2 x 400G, or a combination not exceeding 0.8T total
- QSFP28 ports: 6 x (10/40/100GbE)
- QSFP-DD ports: 2 x (10/40/100/200/400GbE)
- 400GE: enabled by per-port licence
- Throughput: 100 Gbps line rate per QSFP28 port, 400 Gbps per QSFP-DD port
- Optimisation: Service Edge (enhanced service scale)
- Chassis compatibility: ASR 9006, 9010, 9904, 9906, 9910, 9912, 9922
- Software requirement: Cisco IOS XR 7.1.15 or later
- Dimensions (H x W x D): 41.4 x 395.7 x 604.5 mm (1.63 x 15.58 x 23.80 in)
- Weight: 9.84 kg (21.70 lb)
- Operating temperature: 5 to 40 C (41 to 104 F)
- Operating humidity: 10 to 85% RH
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Storage humidity: 5 to 95% RH
- Operating altitude: -60 to 4000 m
- Ethernet standards: IEEE 802.3ba (100G) and IEEE 802.3bs (400G)
- NEBS: designed to meet SR-3580 (Level 3), GR-1089-CORE, GR-63-CORE
- EMC: FCC Class A, ICES 003 Class A, CISPR 22/32 Class A
- Safety: UL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety
FAQs
Q: Which ASR 9000 chassis does this line card fit?
A: It fits any slot in ASR 9006, 9010, 9904, 9906, 9910, 9912 and 9922 chassis. The chassis may need updated fabric cards, RP/RSP and cooling.
Q: What software release does it require?
A: It requires Cisco IOS XR Software Release 7.1.15 or later.
Q: Do the QSFP-DD ports need a licence for 400GE?
A: Yes. 400GE operation on the two QSFP-DD ports is enabled by a per-port licence. Optional feature licences are also available for VRF scale and in-line CGv6 translation.
Q: What optics does it use?
A: The 6 QSFP28 ports take 10/40/100G optics and the 2 QSFP-DD ports take optics up to 400G. Check the Cisco Optics Compatibility Matrix for supported genuine part numbers.
Q: How does the Service Edge variant differ from the packet-transport variant?
A: The Service Edge variant is optimised for enhanced service scale, which suits edge deployments with large VRF and service counts. The packet-transport variant is optimised for core transport.
