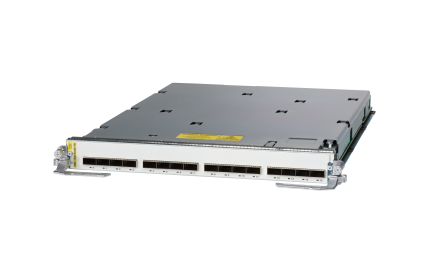

• Cisco A9K-16X100GE-TR ASR 9000 line card with silver body and yellow accents
1 1

Cisco

Cisco A9K-16X100GE-TR | ASR 9000 16-Port 100G Line Card, Packet Transport TR

A9K-16X100GE-TR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 16-port 100 Gigabit Ethernet QSFP28 line card is built for ASR 9000 Series routers and is the Packet Transport Optimized (TR) version with basic QoS. It delivers full line-rate, non-oversubscribed 100GE density in any chassis slot, and the QSFP ports also support 40GE, 50GE, 25GE and 10GE interface modes. Suited to high-capacity aggregation and core transport deployments where bandwidth demand from video, IPTV and cloud traffic is growing.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Interface modes configurable via CLI without resetting or restarting the line card
- Green design: unused slice can be put into power-saving mode
- A single 100GE port can replace large 10GE link aggregation bundles
- Designed to remove bandwidth bottlenecks caused by video, IPTV and cloud traffic
- Mix and match interface types on the same line card

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x 100 Gigabit Ethernet ports (QSFP/QSFP28)
- Supported interface modes: 100GE, 40GE, 50GE, 25GE and 10GE
- Full line rate, non-oversubscribed
- Packet Transport Optimized (TR) version with basic QoS
- 4th generation (Lightspeed-based) High Density Ethernet line card
- Compatible chassis: ASR 9006, 9010, 9904, 9906, 9910, 9912 and 9922
- ASR 9922 chassis requires Fan Tray V3
- Online Insertion and Removal (OIR) support

FAQs

Q: Which ASR 9000 chassis is this line card compatible with?
A: It is compatible with the ASR 9006, 9010, 9904, 9906, 9910, 9912 and 9922 chassis. Depending on the chassis, fabric, route processor and cooling may need upgrading, and the ASR 9922 requires Fan Tray V3.

Q: What does the TR designation mean?
A: TR stands for Packet Transport Optimized. This version offers basic QoS and lower scale than the SE version, making it well suited to high-throughput transport and core roles.

Q: Can the ports run at speeds other than 100GE?
A: Yes. The QSFP ports support 100GE, 40GE, 50GE, 25GE and 10GE interface modes, and interface types can be mixed on the same line card. Modes are configured via CLI without resetting the line card.

Q: Is the line card oversubscribed?
A: No. It provides full line-rate, non-oversubscribed performance on all 16 x 100GE ports.

Q: Can it be installed in a live chassis?
A: Yes. The line card supports Online Insertion and Removal (OIR).
